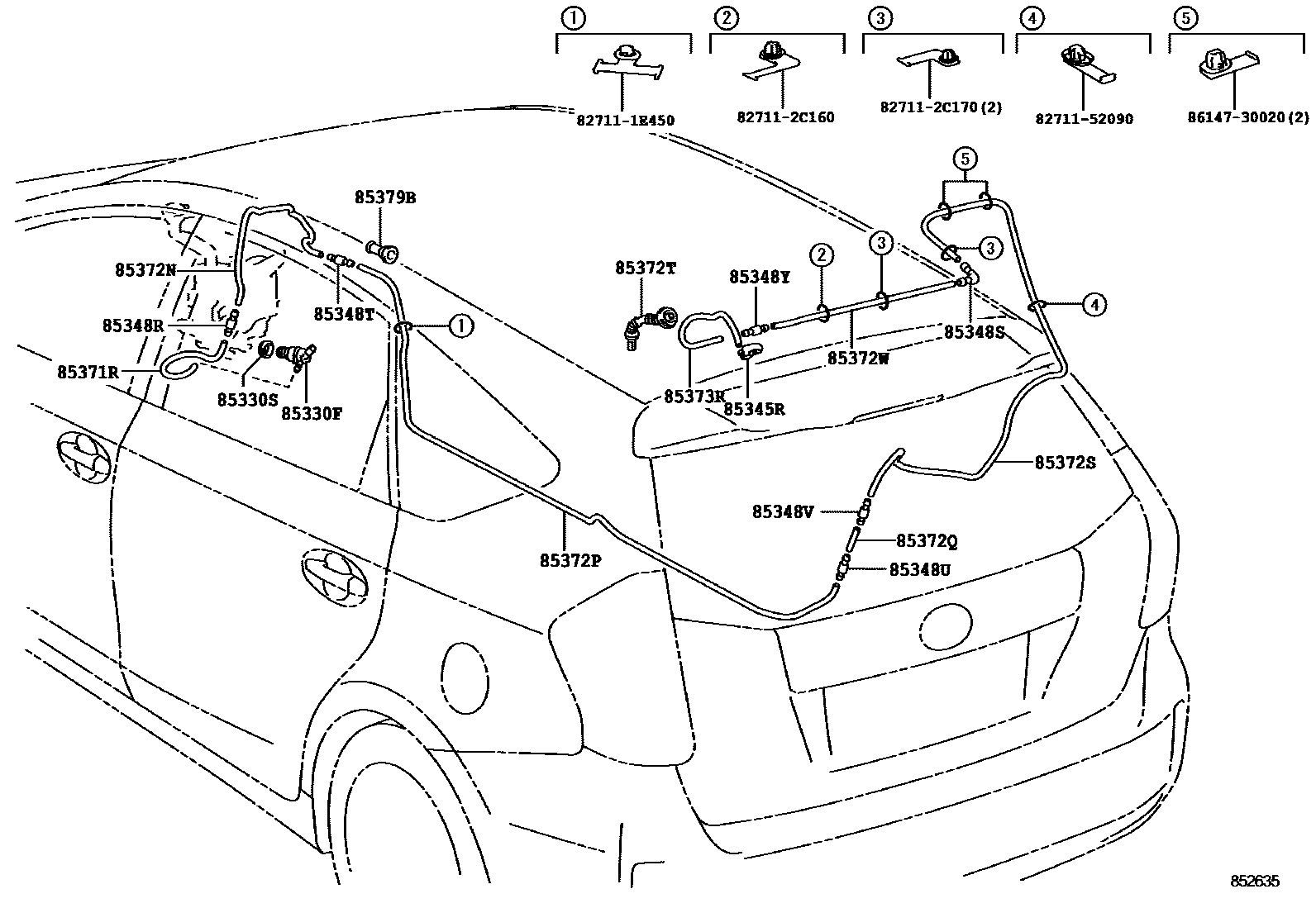

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372TGROMMET, WASHER
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85379BGROMMET, WASHER, A
827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E450
827112C160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C160
827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C170
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8614730020
main86147-30020
23 parts on this diagram · 1 diagram in section
