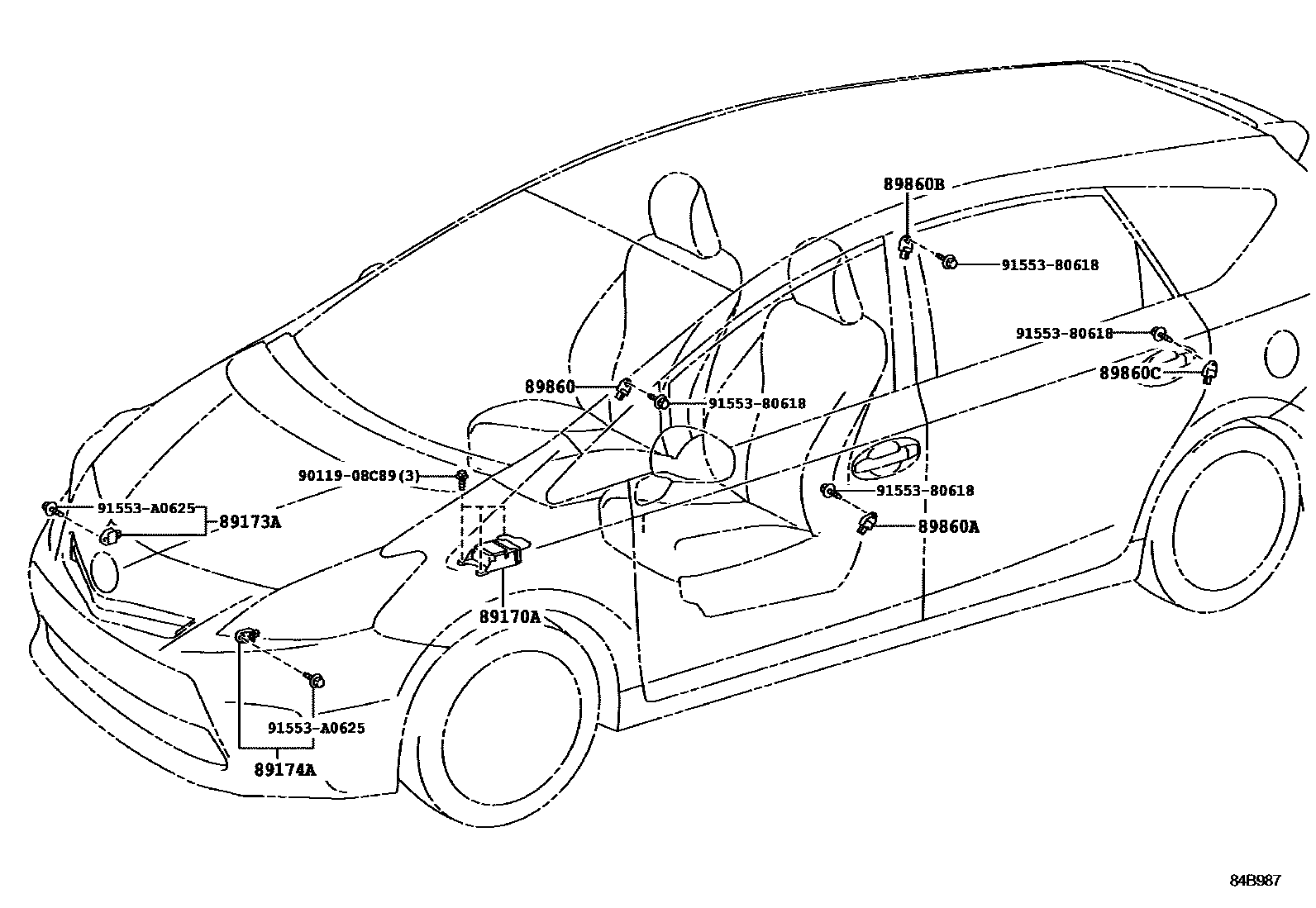

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-47210iZVW4#..CBU201104-201107

main89170-47260iZVW4#..CBU201107-201203

main89170-47300iZVW4#..CBU201203-201411

main89170-47550iZVW4#..CBU201411-201605

main89170-47740iZVW4#..CBU201605-202103

89173ASENSOR, AIRBAG, FRONT RH

main89173-19445iZVW4#..CBU201411-202103

main89173-49465iZVW4#..CBU201107-201203

main89173-79025iZVW40..S..CBU201210-201411

89174ASENSOR, AIRBAG, FRONT LH

main89173-19445iZVW4#..CBU201411-202103

main89173-49465iZVW4#..CBU201107-201203

main89173-79025iZVW4#..CBU201104-201107

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28020iZVW4#..CBU201107-201203

main89831-52020iZVW4#..CBU201411-202103

main89831-75010iZVW40..G;ZVW41..CBU201203-201411

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28020iZVW4#..CBU201107-201203

main89831-52020iZVW4#..CBU201411-202103

main89831-75010iZVW4#..CBU201104-201107

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-30020iZVW40..G;ZVW41..CBU201203-201411

main89831-47010iZVW4#..CBU201107-201203

main89831-52030iZVW4#..CBU201411-202103

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-30020iZVW40..S..CBU201210-201411

main89831-47010iZVW4#..CBU201107-201203

main89831-52030iZVW4#..CBU201411-202103

9011908C89

main90119-08C89

9155380618

main91553-80618

91553A0625

main91553-A0625

10 parts on this diagram · 1 diagram in section
