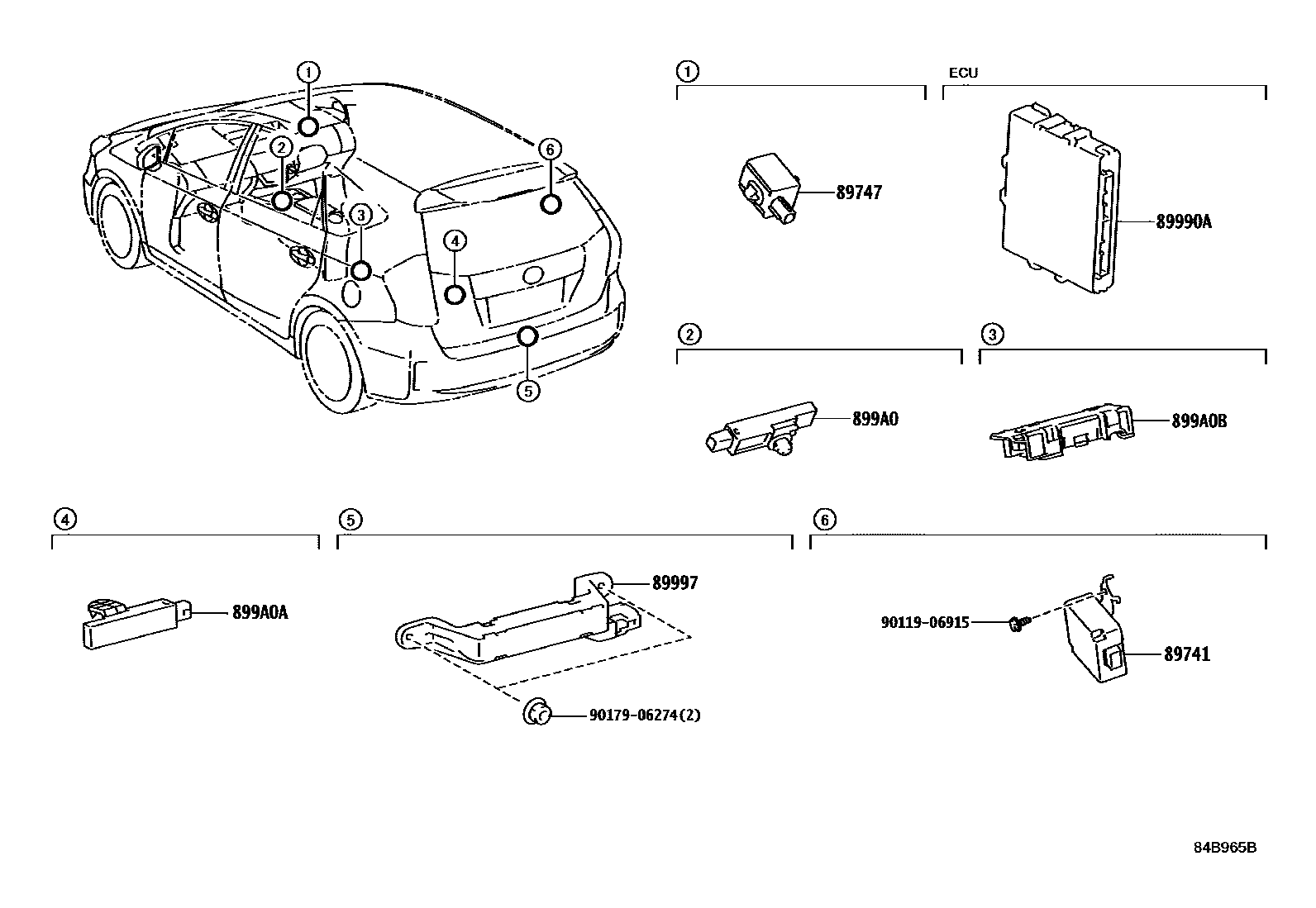

WIRELESS DOOR LOCK

0001 1 0002 1

89741RECEIVER, DOOR CONTROL

main89740-47090iZVW4#..CBU201104-201605

main89740-47210iZVW4#..CBU201605-202103

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZVW4#..CBU201104-202103

89990ACOMPUTER ASSY, SMART KEY

main89990-47091iZVW40..S..CBU201210-201411

main89990-47092iZVW40..S..CBU201411-201605

main89990-47100iZVW40201104-201203

main89990-47101iZVW40..G201203-201411

main89990-47102iZVW40..S..CBU201411-201605

main89990-47110iZVW41..S..CBU201104-201203

main89990-47111iZVW41..S..CBU201203-201411

main89990-47112iZVW41..S..CBU201411-201605

main89990-47120iZVW41..G201104-201203

main89990-47121iZVW41..S..CBU201203-201411

main89990-47122iZVW41..G201411-201605

main89990-47300iZVW40..S..CBU201605-201710

sub89990-47301

main89990-47301iZVW40..S..CBU201711-202103

main89990-47310iZVW40..S..CBU201605-201710

sub89990-47311

main89990-47311iZVW40..S..CBU201711-202103

main89990-47320iZVW41..S..CBU201605-202103

main89990-47330iZVW41..S..CBU201605-202103

89997ANTENNA, ELECTRICAL KEY

main89997-30070iZVW4#..S..CBU201411-202103

main89997-30070iZVW4#..G201104-201411

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iZVW4#..CBU201104-202103

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iZVW41..CBU201104-202103

main899A0-47030iZVW40..CBU201104-202103

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47040iZVW4#..CBU201104-201211

sub899A0-47041

main899A0-47041iZVW4#..CBU201212-201403

sub899A0-47042

main899A0-47042iZVW4#..CBU201404-202103

9011906915

main90119-06915

9017906274

main90179-06274

9 parts on this diagram · 2 diagrams in section
