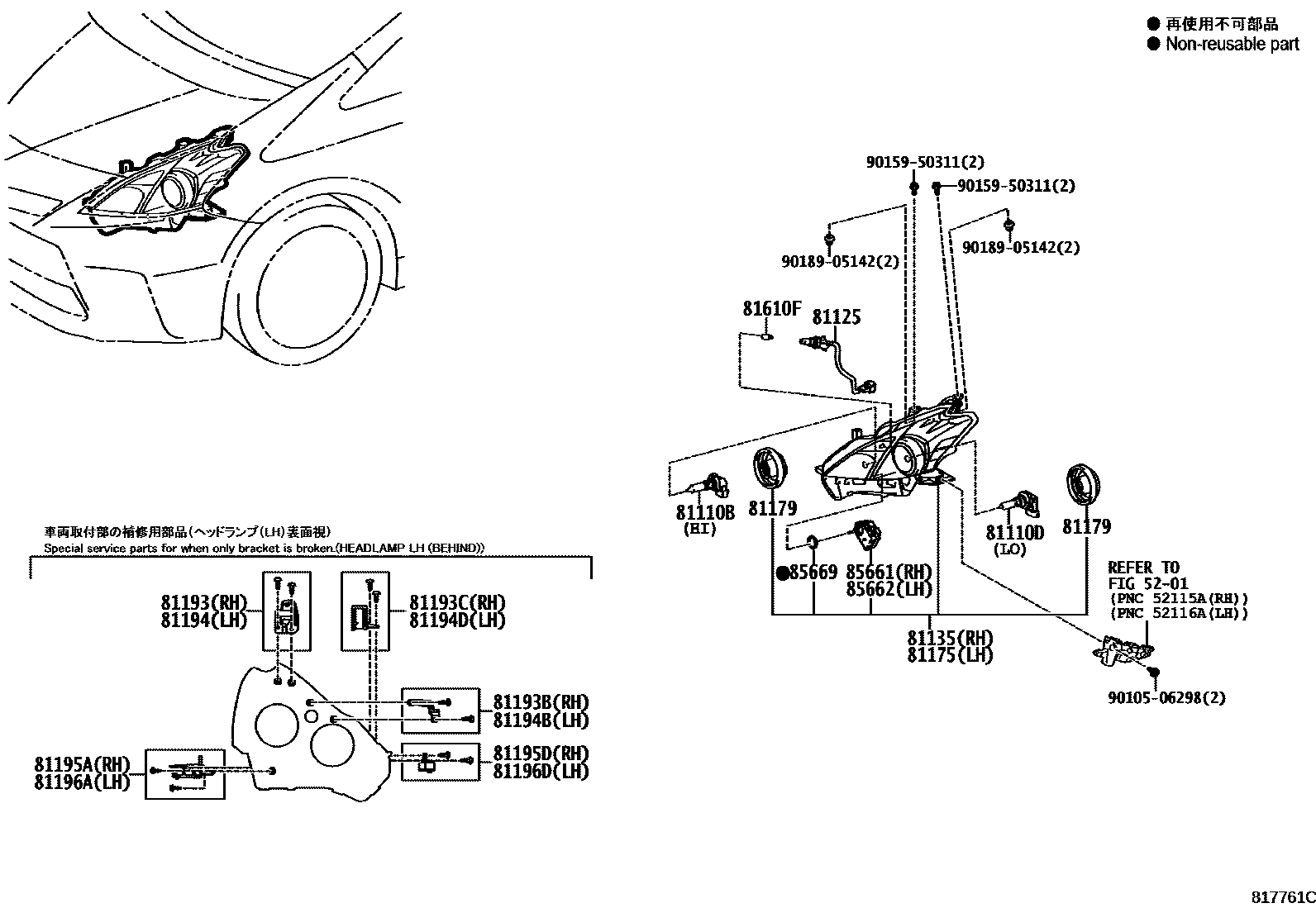

HEADLAMP

0001 1������������� 0002 1LED�������� 0003 1������������� 0004 1LED��������

5201

81110HEADLAMP ASSY, RH

main81110-47640iZVW4#..S..CBU201411-201605

main81110-47641iZVW4#..S..CBU201605-202103

main81110-47660iZVW4#..G201411-202103

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iZVW4#..CBU201104-202103

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iZVW4#..S..CBU201104-202103

81125CORD, HEADLAMP

main81125-47280iZVW4#..S..CBU201104-201411

main81125-47640iZVW4#..S..CBU201411-201605

main81125-47641iZVW4#..S..CBU201605-202103

main81125-47660iZVW4#..G201411-202103

81135UNIT ASSY, HEADLAMP, RH

main81130-47280iZVW4#..S..CBU201104-201411

main81130-47640iZVW4#..S..CBU201411-202103

main81140-47660iZVW4#..G201411-202103

main81145-47290iZVW4#..G201104-201308

main81145-47590iZVW4#..S..CBU201308-201411

81175UNIT ASSY, HEADLAMP, LH

main81070-47660iZVW4#..G201411-202103

main81170-47280iZVW4#..S..CBU201104-201411

main81170-47640iZVW4#..S..CBU201411-202103

main81185-47290iZVW4#..G201104-201308

main81185-47590iZVW4#..G201308-201411

81179COVER, HEADLAMP SOCKET

main90075-65006iZVW4#..S..CBU201411-202103

main90075-65006iZVW4#..G201104-201411

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-47050iZVW4#..CBU201104-202103

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-47060iZVW4#..CBU201104-202103

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-47090iZVW4#..CBU201104-201411

main81193-47090iZVW4#..G201411-202103

main81193-47150iZVW4#..S..CBU201411-202103

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-47050iZVW4#..CBU201104-202103

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-47060iZVW4#..CBU201104-202103

81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH

main81194-47090iZVW4#..CBU201104-201411

main81194-47090iZVW4#..G201411-202103

main81194-47140iZVW4#..S..CBU201411-202103

81195SCREW, HEADLAMP

main90075-02065iZVW4#..CBU201411-202103

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-47050iZVW4#..CBU201104-201411

main81195-47050iZVW4#..G201411-202103

main81195-47120iZVW4#..S..CBU201411-202103

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-47060iZVW4#..CBU201104-201411

main81195-47130iZVW4#..CBU201411-202103

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-47050iZVW4#..G201411-202103

main81196-47050iZVW4#..CBU201104-201411

main81196-47120iZVW4#..S..CBU201411-202103

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-47060iZVW4#..CBU201104-201411

main81196-47130iZVW4#..CBU201411-202103

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iZVW4#..CBU201104-202103

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iZVW4#..S..CBU201104-202103

main85661-12020iZVW4#..G201104-201411

main85661-12020iZVW4#..G201411-202103

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iZVW4#..S..CBU201104-202103

main85661-12020iZVW4#..S..CBU201104-201411

main85661-12020iZVW4#..G201411-202103

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iZVW4#..CBU201104-202103

9010506298

main90105-06298

9015950311

main90159-50311

9018905142

main90189-05142

26 parts on this diagram · 4 diagrams in section
