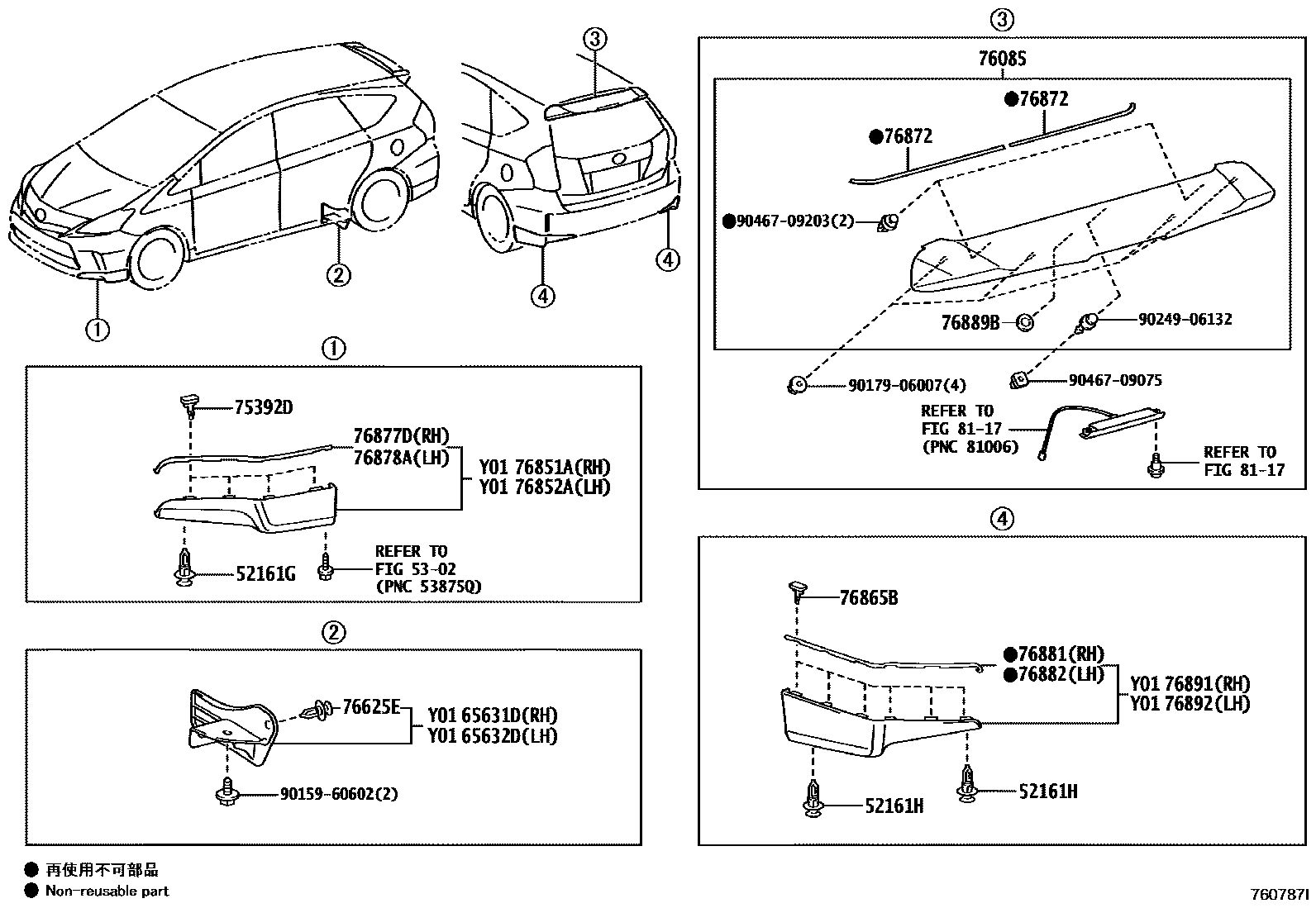

MUDGUARD & SPOILER
52161GPIECE, REAR BUMPER
52161HPIECE, REAR BUMPER
5302
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
75392DRETAINER, OUTSIDE MOULDING
76085SPOILER SUB-ASSY, REAR
76851ACOVER, FRONT SPOILER, RH
76852ACOVER, FRONT SPOILER, LH
76865BRETAINER, REAR SPOILER
76872PROTECTOR, REAR SPOILER, NO.1
76877DPROTECTOR, FRONT SPOILER SIDE, RH
76878APROTECTOR, FRONT SPOILER SIDE, LH
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76889BSEAL, REAR SPOILER, NO.1
76891SPOILER, REAR NO.1
76892SPOILER, REAR NO.2
8117
9015960602
main90159-60602
9017906007
main90179-06007
9024906132
main90249-06132
9046709075
main90467-09075
9046709203
main90467-09203
25 parts on this diagram · 2 diagrams in section
