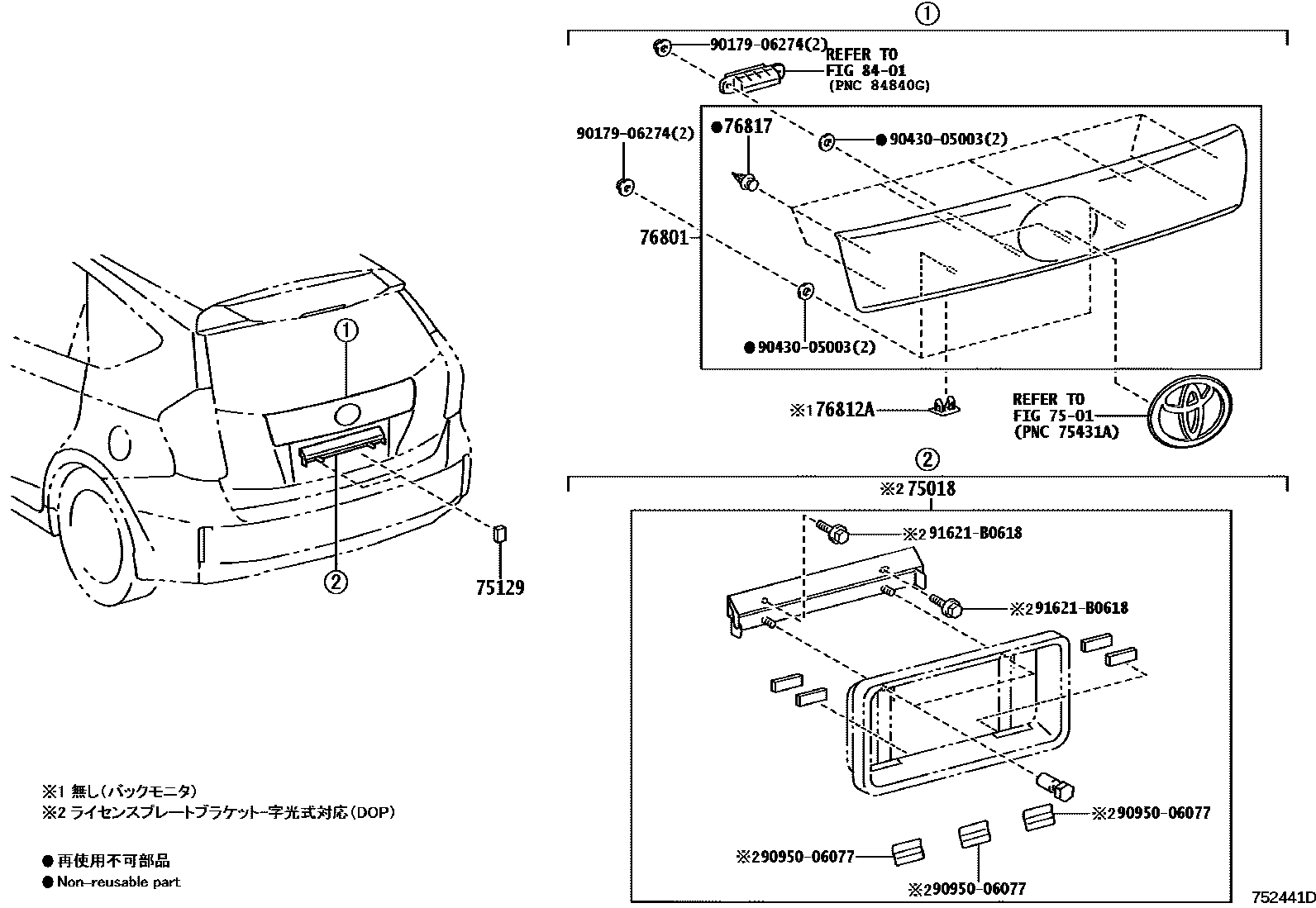

REAR MOULDING
7501
75018FRAME SUB-ASSY, REAR LICENSE PLATE
75129CUSHION, REAR LICENSE PLATE
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
RED M.M.,3R3
BLACKISH RED MC.,3R0
CLEAR STREAM ME.,787
DK.BLUE MC.,8T5
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
BLACKISH AGEHA GF.,221
SUPER RED 5,3P0
DK. RED M.M.,3Q3
RED MC.,3T3
DARK SHERRY M.M.,4W4
ORANGE ME.,4R8
STEEL BLONDE ME.,4X1
CLEAR STREAM ME.,787
DK.BLUE MC.,8T5
DK. BLUE MC.,8X8
76812AGARNISH, BACK DOOR, OUTSIDE NO.2
76817CLIP, BACK DOOR OUTSIDE GARNISH
8401
9017906274
main90179-06274
9043005003
main90430-05003
9095006077
main90950-06077
91621B0618
main91621-B0618
11 parts on this diagram · 1 diagram in section
