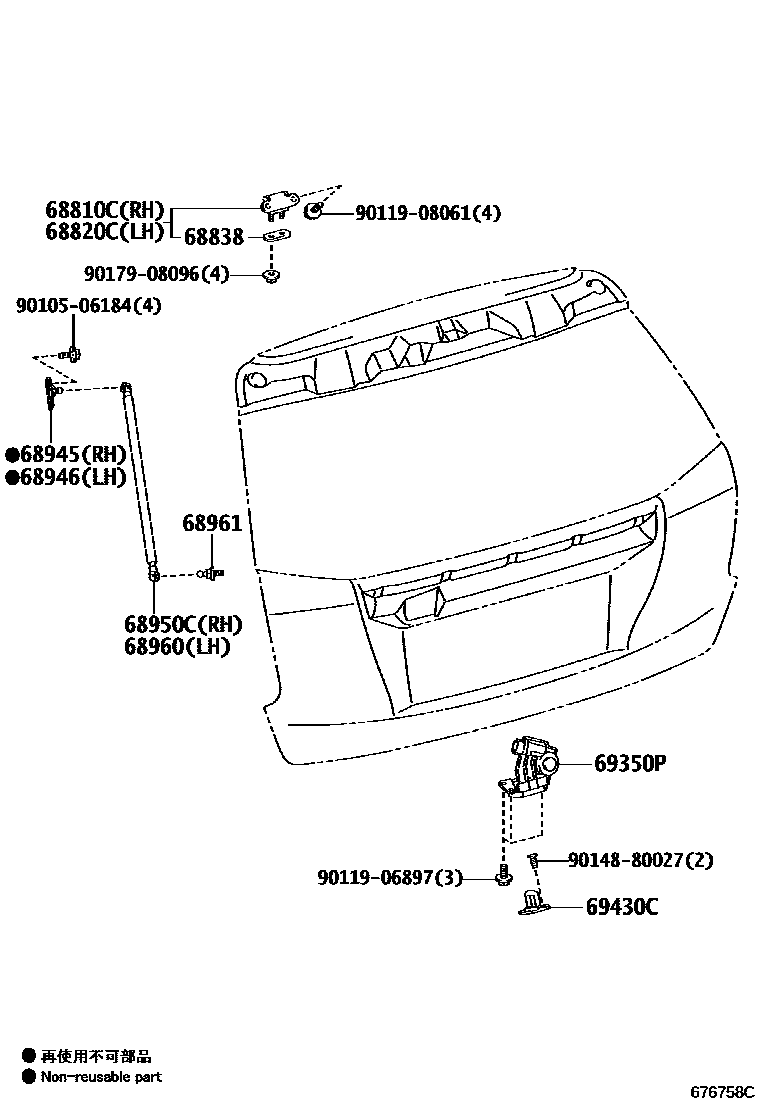

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iZVW4#..CBU201104-202103

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iZVW4#..CBU201104-202103

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010iZVW4#..CBU201104-202103

main68838-44020iZVW4#..CBU201104-202103

main68838-52020iZVW4#..CBU201104-202103

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-47020iZVW4#..CBU201104-201111

main68945-47030iZVW4#..CBU201111-202103

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-47010iZVW4#..CBU201104-201111

main68946-47020iZVW4#..CBU201111-202103

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W780iZVW4#..CBU201308-202103

main68950-47040iZVW4#..CBU201111-201112

sub68950-47041

main68950-47041iZVW4#..CBU201201-201308

sub68950-0W780

main68950-47070iZVW4#..CBU201104-201111

sub68950-47071

68960STAY ASSY, BACK DOOR, LH

main68960-0W780iZVW4#..CBU201308-202103

main68960-47040iZVW4#..CBU201111-201112

sub68960-47041

main68960-47041iZVW4#..CBU201201-201308

sub68960-0W780

main68960-47070iZVW4#..CBU201104-201111

sub68960-47071

68961BOLT, BACK DOOR STAY

main68961-20140iZVW4#..CBU201104-202103

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iZVW4#..CBU201104-201512

sub69350-28151

main69350-28151iZVW4#..CBU201601-202103

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-28050iZVW4#..CBU201104-202103

9010506184

main90105-06184

9011906897

main90119-06897

9011908061

main90119-08061

9014880027

main90148-80027

9017908096

main90179-08096

15 parts on this diagram · 1 diagram in section
