E
EPC Data

FRONT DOOR LOCK & HANDLE

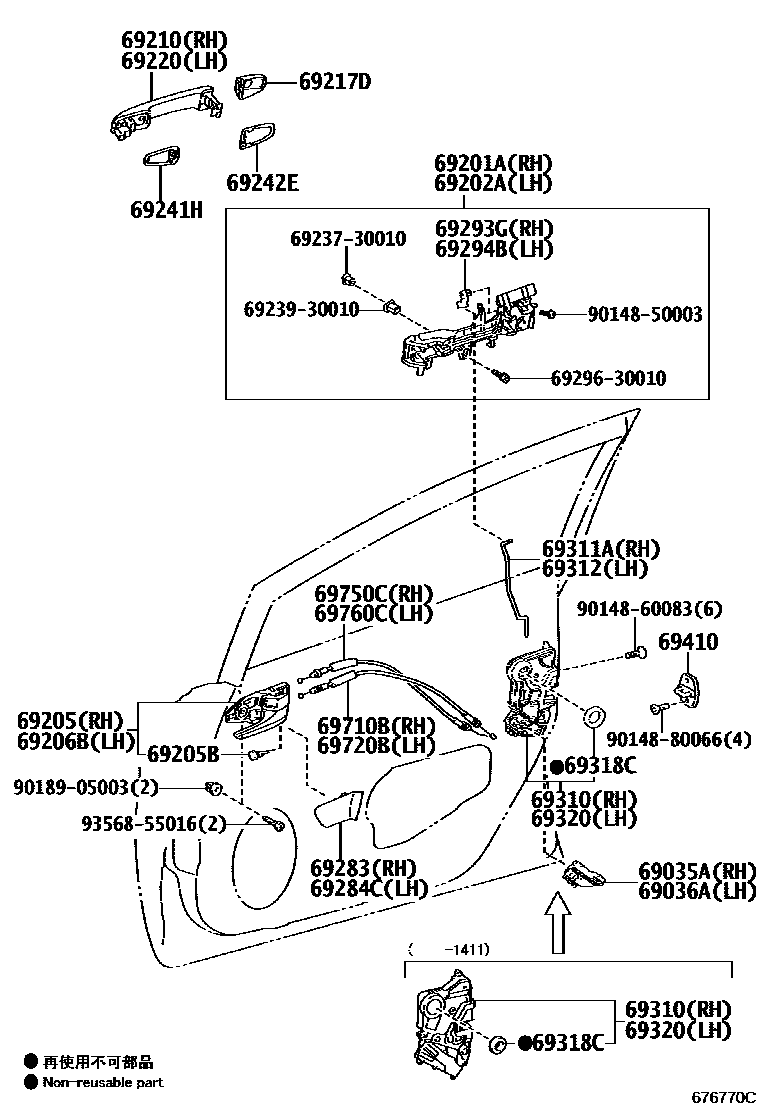

Parts diagram
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-30010i201411-202103
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-30010i201411-202103
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-30071i201104-202103
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-30061i201104-202103
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-33111-C0i201411-202103
BLACK,TRIM2#
main69205-33111-C0i201308-201411
main69205-33111-E0i201411-202103
GREGE,TRIM4#
main69205-47050-C0i201104-201411
BLACK,TRIM1#
main69205-47050-G0i201104-201411
AQUA,TRIM6#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04027i201104-202103
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-33121-C0i201308-201411
main69206-33121-C0i201411-202103
BLACK,TRIM2#
main69206-33121-E0i201411-202103
GREGE,TRIM4#
main69206-47050-C0i201104-201411
BLACK,TRIM1#
main69206-47050-G0i201104-201411
AQUA,TRIM6#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-30320-A2i201308-201411
sub69210-30320
main69210-30320-A2i201605-202103
sub69210-30320
main69210-30320-A2i201605-202103
sub69210-30320
main69210-30320-A2i201308-201411
sub69210-30320
main69210-30320-B0i201308-201411
sub69210-30320
main69210-30320-B0i201308-201411
sub69210-30320
main69210-30320-B0i201605-202008
sub69210-30320
main69210-30320-B0i201605-202008
sub69210-30320
main69210-30320-B5i201308-201411
sub69210-30320
main69210-30320-B5i201308-201411
sub69210-30320
main69210-30320-B6i202008-202103
sub69210-30320
main69210-30320-B6i202008-202103
sub69210-30320
main69210-30320-C0i201308-201411
sub69210-30320
main69210-30320-C0i201308-201411
sub69210-30320
main69210-30320-C2i201605-202103
sub69210-30320
main69210-30320-C2i201605-202103
sub69210-30320
main69210-30320-C3i201605-202103
sub69210-30320
main69210-30320-C3i201605-202103
sub69210-30320
main69210-30320-D0i201308-201411
sub69210-30320
main69210-30320-D0i201308-201411
sub69210-30320
main69210-74030-A0i201104-202103
WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A1i201104-202103
SUPER WHITE 2,040
sub69210-74030
main69210-74030-B0i201104-202008
SILVER ME.,1F7
sub69210-74030
main69210-74030-B3i201104-202103
GRAY ME.,1G3
sub69210-74030
main69210-74030-C0i201104-201411
BLACK,202
sub69210-74030
main69210-74030-C2i201411-202103
ATTITUDE BLACK MC.,218
sub69210-74030
main69210-74030-D0i201104-201411
RED M.M.,3R3
sub69210-74030
main69210-74030-D1i201411-201712
SUPER RED 5,3P0
sub69210-74030
main69210-74030-D7i201712-202008
DK. RED M.M.,3Q3
sub69210-74030
main69210-74030-D8i202008-202103
RED MC.,3T3
sub69210-74030
main69210-74030-E2i201411-201712
ORANGE ME.,4R8
sub69210-74030
main69210-74030-E3i201411-202103
DARK SHERRY M.M.,4W4
sub69210-74030
main69210-74030-E5i201712-202103
STEEL BLONDE ME.,4X1
sub69210-74030
main69210-74030-E5i202008-202103
sub69210-74030
main69210-74030-H3i201104-201605
CLEAR STREAM ME.,787
sub69210-74030
main69210-74030-J1i201104-202008
DK.BLUE MC.,8T5
sub69210-74030
main69210-74030-P4i202008-202103
SILVER ME.,1D6
sub69210-74030
main69210-74030-R3i202008-202103
DK. BLUE MC.,8X8
sub69210-74030
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-74010-A0i201104-202103
sub69217-74010
main69217-74010-A1i201104-202103
sub69217-74010
main69217-74010-B0i201104-202008
sub69217-74010
main69217-74010-B4i201104-202103
sub69217-74010
main69217-74010-C0i201104-201411
sub69217-74010
main69217-74010-C2i201411-202103
sub69217-74010
main69217-74010-D0i201104-201411
sub69217-74010
main69217-74010-D1i201411-201712
sub69217-74010
main69217-74010-D6i201712-202008
sub69217-74010
main69217-74010-D9i202008-202103
sub69217-74010
main69217-74010-E2i201411-201712
sub69217-74010
main69217-74010-E4i201411-202103
sub69217-74010
main69217-74010-E9i201712-202103
sub69217-74010
main69217-74010-E9i202008-202103
sub69217-74010
main69217-74010-H3i201104-201605
sub69217-74010
main69217-74010-J1i201104-202008
sub69217-74010
main69217-74010-P7i202008-202103
sub69217-74010
main69217-74010-R4i202008-202103
sub69217-74010
main69250-30030-A3i201308-201411
sub69250-30030
main69250-30030-A3i201308-201411
sub69250-30030
main69250-30030-A3i201605-202103
sub69250-30030
main69250-30030-A3i201605-202103
sub69250-30030
main69250-30030-B0i201308-201411
sub69250-30030
main69250-30030-B0i201308-201411
sub69250-30030
main69250-30030-B0i201605-202008
sub69250-30030
main69250-30030-B0i201605-202008
sub69250-30030
main69250-30030-B4i201308-201411
sub69250-30030
main69250-30030-B4i201308-201411
sub69250-30030
main69250-30030-B9i202008-202103
sub69250-30030
main69250-30030-B9i202008-202103
sub69250-30030
main69250-30030-C0i201308-201411
sub69250-30030
main69250-30030-C0i201308-201411
sub69250-30030
main69250-30030-C1i201605-202103
sub69250-30030
main69250-30030-C1i201605-202103
sub69250-30030
main69250-30030-C3i201605-202103
sub69250-30030
main69250-30030-C3i201605-202103
sub69250-30030
main69250-30030-D0i201308-201411
sub69250-30030
main69250-30030-D0i201308-201411
sub69250-30030
main69250-30040-A3i201605-202103
sub69250-30040
main69250-30040-A3i201308-201411
sub69250-30040
main69250-30040-A3i201308-201411
sub69250-30040
main69250-30040-A3i201605-202103
sub69250-30040
main69250-30040-B0i201605-202008
sub69250-30040
main69250-30040-B0i201308-201411
sub69250-30040
main69250-30040-B0i201308-201411
sub69250-30040
main69250-30040-B0i201605-202008
sub69250-30040
main69250-30040-B4i201308-201411
sub69250-30040
main69250-30040-B4i201308-201411
sub69250-30040
main69250-30040-B9i202008-202103
sub69250-30040
main69250-30040-B9i202008-202103
sub69250-30040
main69250-30040-C0i201308-201411
sub69250-30040
main69250-30040-C0i201308-201411
sub69250-30040
main69250-30040-C1i201605-202103
sub69250-30040
main69250-30040-C1i201605-202103
sub69250-30040
main69250-30040-C3i201605-202103
sub69250-30040
main69250-30040-C3i201605-202103
sub69250-30040
main69250-30040-D0i201308-201411
sub69250-30040
main69250-30040-D0i201308-201411
sub69250-30040
main69250-74010-A0i201104-202103
sub69250-74010
main69250-74010-A1i201104-202103
sub69250-74010
main69250-74010-B0i201104-202008
sub69250-74010
main69250-74010-B4i201104-202103
sub69250-74010
main69250-74010-C0i201104-201411
sub69250-74010
main69250-74010-C2i201411-202103
sub69250-74010
main69250-74010-D0i201104-201411
sub69250-74010
main69250-74010-D1i201411-201712
sub69250-74010
main69250-74010-D6i201712-202008
sub69250-74010
main69250-74010-D9i202008-202103
sub69250-74010
main69250-74010-E2i201411-201712
sub69250-74010
main69250-74010-E4i201411-202103
sub69250-74010
main69250-74010-E9i201712-202103
sub69250-74010
main69250-74010-E9i202008-202103
sub69250-74010
main69250-74010-H2i201104-201605
sub69250-74010
main69250-74010-J0i201104-202008
sub69250-74010
main69250-74010-P7i202008-202103
sub69250-74010
main69250-74010-R4i202008-202103
sub69250-74010
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-22260-A2i201308-201411
main69210-22260-A2i201605-202103
main69210-22260-B0i201308-201411
main69210-22260-B0i201605-202008
main69210-22260-B2i201308-201411
main69210-22260-B7i202008-202103
main69210-22260-C0i201308-201411
main69210-22260-C1i201605-202103
main69210-22260-C3i201605-202103
main69210-22260-D1i201308-201411
main69210-30320-A2i201308-201411
sub69210-30320
main69210-30320-A2i201605-202103
sub69210-30320
main69210-30320-A2i201308-201411
sub69210-30320
main69210-30320-B0i201308-201411
sub69210-30320
main69210-30320-B0i201308-201411
sub69210-30320
main69210-30320-B0i201605-202008
sub69210-30320
main69210-30320-B5i201308-201411
sub69210-30320
main69210-30320-B5i201308-201411
sub69210-30320
main69210-30320-B6i202008-202103
sub69210-30320
main69210-30320-C0i201308-201411
sub69210-30320
main69210-30320-C0i201308-201411
sub69210-30320
main69210-30320-C2i201605-202103
sub69210-30320
main69210-30320-C3i201605-202103
sub69210-30320
main69210-30320-D0i201308-201411
sub69210-30320
main69210-30320-D0i201308-201411
sub69210-30320
main69210-74030-A0i201104-202103
WHITE PEARL CS.,070
sub69210-74030
main69210-74030-A0i201104-201411
sub69210-74030
main69210-74030-A0i201411-202103
sub69210-74030
main69210-74030-A1i201104-202103
SUPER WHITE 2,040
sub69210-74030
main69210-74030-A1i201104-201411
sub69210-74030
main69210-74030-A1i201411-202103
sub69210-74030
main69210-74030-B0i201104-202008
SILVER ME.,1F7
sub69210-74030
main69210-74030-B0i201104-201411
sub69210-74030
main69210-74030-B0i201411-202008
sub69210-74030
main69210-74030-B3i201104-202103
GRAY ME.,1G3
sub69210-74030
main69210-74030-B3i201411-202103
sub69210-74030
main69210-74030-B3i201104-201411
sub69210-74030
main69210-74030-C0i201104-201411
sub69210-74030
main69210-74030-C0i201104-201411
BLACK,202
sub69210-74030
main69210-74030-C2i201411-202103
sub69210-74030
main69210-74030-C2i201411-202103
ATTITUDE BLACK MC.,218
sub69210-74030
main69210-74030-D0i201104-201411
sub69210-74030
main69210-74030-D0i201104-201411
RED M.M.,3R3
sub69210-74030
main69210-74030-D1i201411-201712
sub69210-74030
main69210-74030-D1i201411-201712
SUPER RED 5,3P0
sub69210-74030
main69210-74030-D7i201712-202008
sub69210-74030
main69210-74030-D7i201712-202008
DK. RED M.M.,3Q3
sub69210-74030
main69210-74030-D8i202008-202103
sub69210-74030
main69210-74030-D8i202008-202103
RED MC.,3T3
sub69210-74030
main69210-74030-E2i201411-201712
ORANGE ME.,4R8
sub69210-74030
main69210-74030-E2i201411-201712
sub69210-74030
main69210-74030-E3i201411-202103
sub69210-74030
main69210-74030-E3i201411-202103
DARK SHERRY M.M.,4W4
sub69210-74030
main69210-74030-E5i201712-202103
sub69210-74030
main69210-74030-E5i201712-202103
STEEL BLONDE ME.,4X1
sub69210-74030
main69210-74030-H3i201104-201411
sub69210-74030
main69210-74030-H3i201411-201605
sub69210-74030
main69210-74030-H3i201104-201605
CLEAR STREAM ME.,787
sub69210-74030
main69210-74030-J1i201104-202008
DK.BLUE MC.,8T5
sub69210-74030
main69210-74030-J1i201104-201411
sub69210-74030
main69210-74030-J1i201411-202008
sub69210-74030
main69210-74030-P4i202008-202103
sub69210-74030
main69210-74030-P4i202008-202103
SILVER ME.,1D6
sub69210-74030
main69210-74030-R3i202008-202103
DK. BLUE MC.,8X8
sub69210-74030
main69210-74030-R3i202008-202103
sub69210-74030
main69211-74020-A0i201104-202103
WHITE PEARL CS.,070
sub69211-74020
main69211-74020-A1i201104-202103
SUPER WHITE 2,040
sub69211-74020
main69211-74020-B0i201104-202008
SILVER ME.,1F7
sub69211-74020
main69211-74020-B4i201104-202103
GRAY ME.,1G3
sub69211-74020
main69211-74020-C0i201104-201411
BLACK,202
sub69211-74020
main69211-74020-C2i201411-202103
ATTITUDE BLACK MC.,218
sub69211-74020
main69211-74020-D0i201104-201411
RED M.M.,3R3
sub69211-74020
main69211-74020-D1i201411-201712
SUPER RED 5,3P0
sub69211-74020
main69211-74020-D6i201712-202008
DK. RED M.M.,3Q3
sub69211-74020
main69211-74020-D9i202008-202103
RED MC.,3T3
sub69211-74020
main69211-74020-E2i201411-201712
ORANGE ME.,4R8
sub69211-74020
main69211-74020-E4i201411-202103
DARK SHERRY M.M.,4W4
sub69211-74020
main69211-74020-E9i201712-202008
STEEL BLONDE ME.,4X1
sub69211-74020
main69211-74020-H3i201104-201605
CLEAR STREAM ME.,787
sub69211-74020
main69211-74020-J1i201104-202008
DK.BLUE MC.,8T5
sub69211-74020
main69211-74020-P7i202008-202103
SILVER ME.,1D6
sub69211-74020
main69211-74020-R2i202008-202103
DK. BLUE MC.,8X8
sub69211-74020
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-30111i201104-202103
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-47020i201104-202103
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-47010-B2i201308-201411
main69283-47010-B2i201104-201411
DK.GRAY,TRIM1#
main69283-47010-C0i201411-202103
BLACK,TRIM2#
main69283-47010-E0i201411-202103
GREGE,TRIM4#
main69283-47010-G0i201104-201411
AQUA,TRIM6#
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-47010-B2i201308-201411
main69284-47010-B2i201104-201411
DK.GRAY,TRIM1#
main69284-47010-C0i201411-202103
BLACK,TRIM2#
main69284-47010-E0i201411-202103
GREGE,TRIM4#
main69284-47010-G0i201104-201411
AQUA,TRIM6#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201104-202103
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201104-202103
69310LOCK ASSY, FRONT DOOR, RH
main69030-30A70i201411-202103
main69030-42210i201104-201411
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-47050i201104-202103
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-47050i201104-202103
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201104-202103
69320LOCK ASSY, FRONT DOOR, LH
main69040-30A80i201411-202103
main69040-42230i201104-201411
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33010i201104-202103
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-47040i201104-201411
main69710-47050i201411-202103
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-47040i201104-201411
main69710-47050i201411-202103
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-47050i201104-201411
main69750-47060i201411-201702
sub69750-47061
main69750-47061i201703-202103
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-47050i201104-201411
main69750-47060i201411-201702
sub69750-47061
main69750-47061i201703-202103
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356855016
main93568-55016

34 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
