DECK BOARD & DECK TRIM COVER

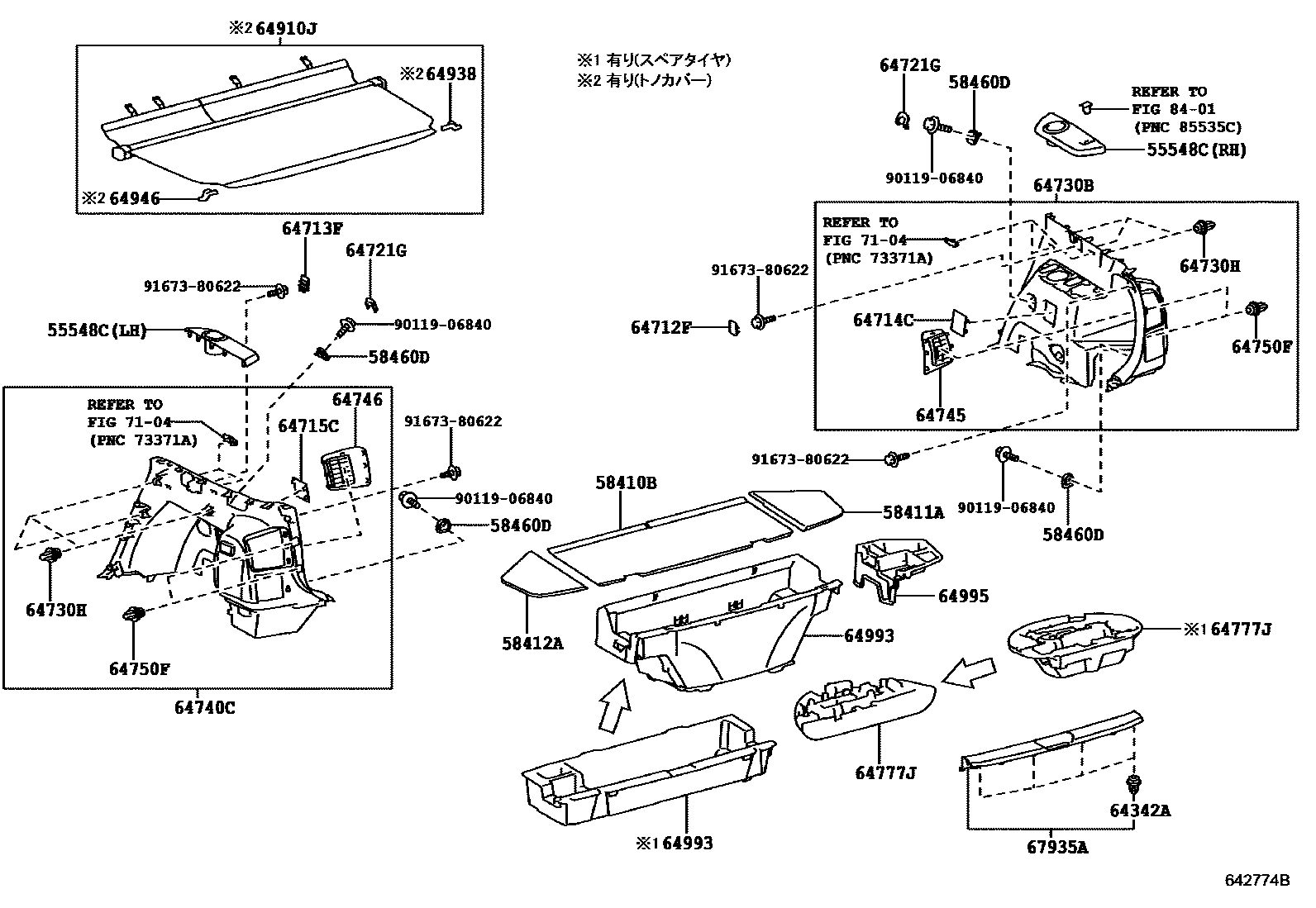

Parts diagram
55548CHOLDER, CUP
main66991-47010-B0i201104-201411
main66991-47010-C0i201411-202103
main66991-47010-E0i201411-202103
main66991-47010-G0i201104-201411
main66992-47010-B0i201104-201411
main66992-47010-C0i201411-202103
main66992-47010-E0i201411-202103
main66992-47010-G0i201104-201411
58410BBOARD ASSY, DECK
main58410-47010-B1i201104-201405
DARK GRAY,TRIM1#,2#
main58410-47010-G2i201104-201405
AQUA,TRIM6#
main58410-47011-B1i201405-201411
DARK GRAY,TRIM1#,2#
main58410-47011-C0i201411-202103
BLACK,TRIM2#
main58410-47011-E0i201411-202103
GREGE,TRIM4#
main58410-47011-G2i201405-201411
AQUA,TRIM6#
main58410-47020-B1i201104-201411
GRAY,TRIM1#,2#
main58410-47020-C0i201411-202103
BLACK,TRIM2#
main58410-47020-E2i201411-202103
GREGE,TRIM4#
main58410-47020-G2i201104-201411
AQUA,TRIM6#
58411ABOARD, DECK, NO.1
main58411-47010-B1i201104-201411
DARK GRAY,TRIM1#,2#
main58411-47010-C0i201411-202103
BLACK,TRIM2#
main58411-47010-E2i201411-202103
GREGE,TRIM4#
main58411-47010-G2i201104-201411
AQUA,TRIM6#
58412ABOARD, DECK, NO.2
main58412-47010-B1i201104-201411
DARK GRAY,TRIM1#,2#
main58412-47010-C0i201411-202103
BLACK,TRIM2#
main58412-47010-E2i201411-202103
GREGE,TRIM4#
main58412-47010-G2i201104-201411
AQUA,TRIM6#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33020i201104-202103
64342ACLIP
main90467-10161i201104-202103
64712FCOVER, DECK SIDE TRIM, FRONT RH
main64712-47010-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64712-47010-C0i201411-202103
BLACK,TRIM2#
main64712-47010-E0i201411-202103
GREGE,TRIM4#
main64712-47010-G0i201104-201411
AQUA,TRIM6#
64713FCOVER, DECK SIDE TRIM, FRONT LH
main64712-47010-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64712-47010-C0i201411-202103
BLACK,TRIM2#
main64712-47010-E0i201411-202103
GREGE,TRIM4#
main64712-47010-G0i201104-201411
AQUA,TRIM6#
64714CCOVER, DECK SIDE TRIM, RH
main64714-47040-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64714-47040-C0i201411-202103
BLACK,TRIM2#
main64714-47040-E0i201411-202103
GREGE,TRIM4#
main64714-47040-G0i201104-201411
AQUA,TRIM6#
main64714-47050-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64714-47050-C0i201411-202103
BLACK,TRIM2#
main64714-47050-E0i201411-202103
GREGE,TRIM4#
main64714-47050-G0i201104-201411
AQUA,TRIM6#
64715CCOVER, DECK SIDE TRIM, LH
main64715-47040-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64715-47040-C0i201411-202103
BLACK,TRIM2#
main64715-47040-E0i201411-202103
GREGE,TRIM4#
main64715-47040-G0i201104-201411
AQUA,TRIM6#
main64715-47050-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64715-47050-C0i201411-202103
BLACK,TRIM2#
main64715-47050-E0i201411-202103
GREGE,TRIM4#
main64715-47050-G0i201104-201411
AQUA,TRIM6#
64721GCOVER, DECK TRIM, NO.1
main64721-47020-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64721-47020-C0i201411-202103
BLACK,TRIM2#
main64721-47020-E0i201411-202103
GREGE,TRIM4#
main64721-47020-G0i201104-201411
AQUA,TRIM6#
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-47070-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64730-47070-C0i201411-201903
BLACK,TRIM2#
main64730-47070-E0i201411-201903
GREGE,TRIM4#
main64730-47070-G0i201104-201411
AQUA,TRIM6#
main64730-47080-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64730-47080-C0i201411-201903
BLACK,TRIM2#
main64730-47080-E0i201411-201903
GREGE,TRIM4#
main64730-47080-G0i201104-201411
AQUA,TRIM6#
main64730-47150-C0i201903-202103
BLACK,TRIM2#
main64730-47150-E0i201903-202103
GREGE,TRIM4#
main64730-47160-C0i201903-202103
BLACK,TRIM2#
main64730-47160-E0i201903-202103
GREGE,TRIM4#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
main90467-09236i201104-201302
main90467-09240i201303-202103
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-47080-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64740-47080-C0i201411-201903
BLACK,TRIM2#
main64740-47080-E0i201411-201903
GREGE,TRIM4#
main64740-47080-G0i201104-201411
AQUA,TRIM6#
main64740-47090-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64740-47090-C0i201411-201903
BLACK,TRIM2#
main64740-47090-E0i201411-201903
GREGE,TRIM4#
main64740-47090-G0i201104-201411
AQUA,TRIM6#
main64740-47290-C0i201903-202103
BLACK,TRIM2#
main64740-47290-E0i201903-202103
GREGE,TRIM4#
main64740-47300-C0i201903-202103
BLACK,TRIM2#
main64740-47300-E0i201903-202103
GREGE,TRIM4#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-47040-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64745-47040-C0i201411-202103
BLACK,TRIM2#
main64745-47040-E0i201411-202103
GREGE,TRIM4#
main64745-47040-G0i201104-201411
AQUA,TRIM6#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-47030-B0i201104-201411
MD.GRAY,TRIM1#,2#
main64746-47030-C0i201411-202103
BLACK,TRIM2#
main64746-47030-E0i201411-202103
GREGE,TRIM4#
main64746-47030-G0i201104-201411
AQUA,TRIM6#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main90467-10161i201104-202103
64777JCUSHION, SPARE WHEEL
main64777-47070i201104-202103
64910JCOVER ASSY, TONNEAU
64938HOOK, TONNEAU COVER, A
main64938-47040
64946HOOK, TONNEAU COVER, B
main64946-47040
64993BOX, DECK FLOOR, REAR
main64993-47040i201104-202103
64995BOX, DECK FLOOR, RH
main64995-47010i201104-202103
67935APLATE, BACK DOOR SCUFF
main67935-47010-B0i201104-201411
MD.GRAY,TRIM1#,2#
main67935-47010-C0i201411-202103
BLACK,TRIM2#
main67935-47010-E0i201411-202103
GREGE,TRIM4#
main67935-47010-G0i201104-201411
AQUA,TRIM6#
7104
8401
9011906840
main90119-06840
9167380622
main91673-80622

28 parts on this diagram · 2 diagrams in section
