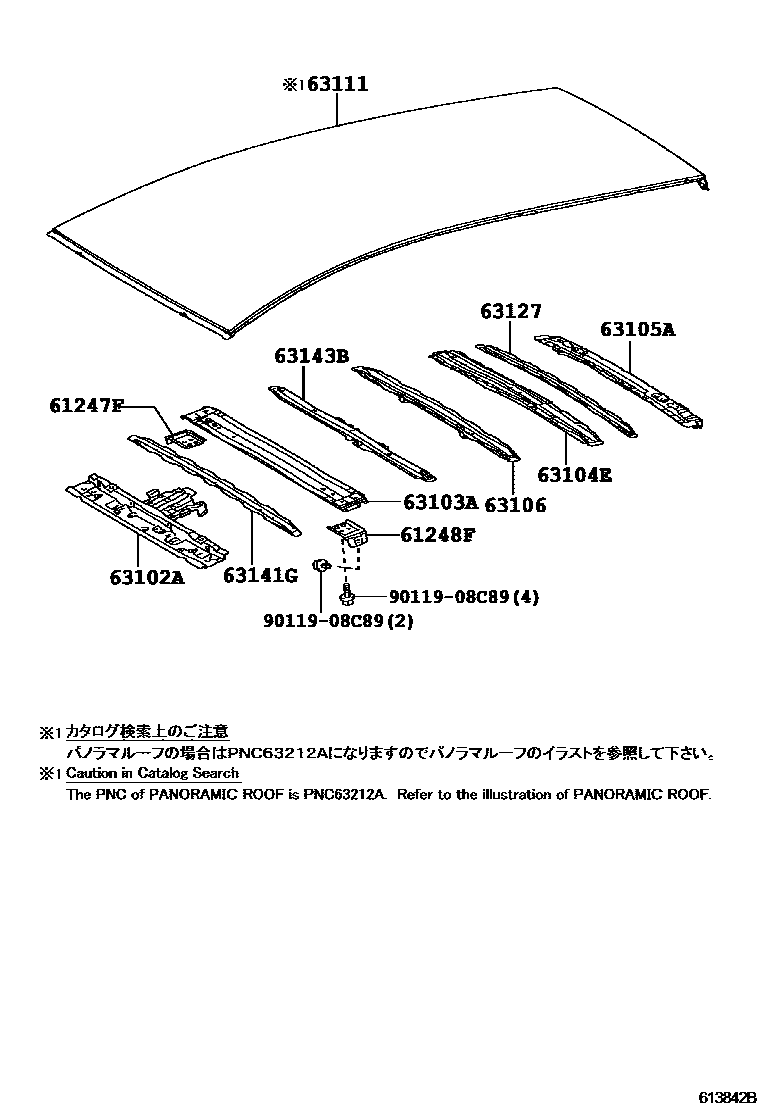

ROOF PANEL & BACK WINDOW GLASS

0001 1������� ��� 0002 1��������

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-47030iZVW4#..CBU201411-202103

61248FREINFORCEMENT, ROOF SIDE RAIL, INNER, LH

main61247-47030iZVW4#..CBU201411-202103

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-47060iZVW4#..CBU201104-201411

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-47030iZVW4#..CBU201411-202103

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-47020iZVW4#..CBU201104-201411

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-47030iZVW4#..CBU201104-202103

63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4

main63106-47010iZVW4#..CBU201104-202103

63111PANEL, ROOF

main63111-47050iZVW4#..CBU201104-202103

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-47030iZVW4#..CBU201104-201411

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63123-47010iZVW4#..CBU201104-202103

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-47040iZVW4#..CBU201104-202103

9011908C89

main90119-08C89

12 parts on this diagram · 2 diagrams in section
