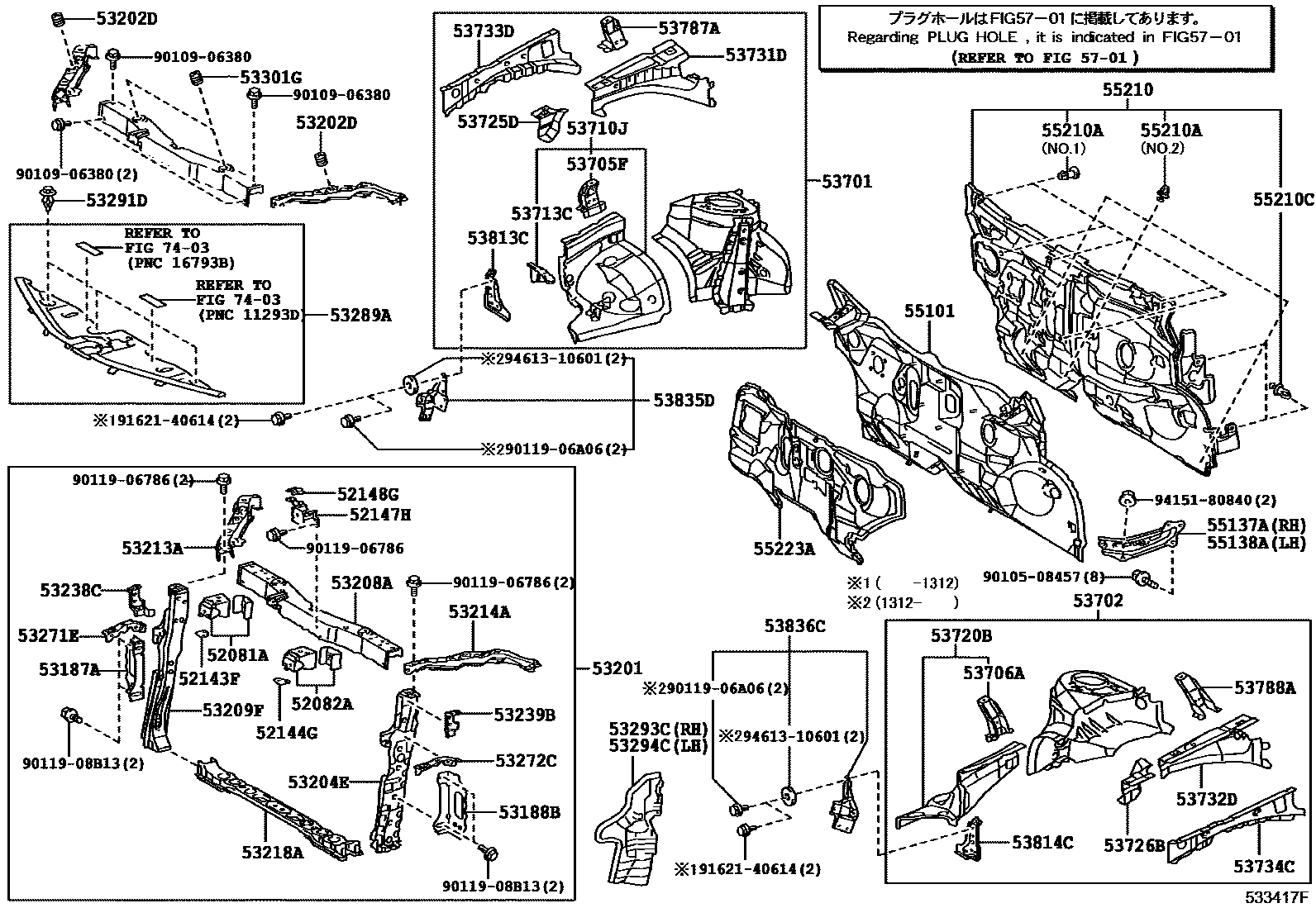

FRONT FENDER APRON & DASH PANEL
52081ASTAY SUB-ASSY, FRONT BUMPER, RH
52082ASTAY SUB-ASSY, FRONT BUMPER, LH
52143FBRACKET, FRONT BUMPER SIDE, RH
52144GBRACKET, FRONT BUMPER SIDE, LH
52147HBRACKET, FRONT BUMPER MOUNTING
52148GBRACKET, FRONT BUMPER MOUNTING, NO.2
53187ASTAY, RADIATOR SUPPORT, RH
53188BSTAY, RADIATOR SUPPORT, LH
53201SUPPORT SUB-ASSY, RADIATOR
53202DCUSHION, RADIATOR SUPPORT
53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH
53208ASUPPORT SUB-ASSY, HOOD LOCK
53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53218ASUPPORT, RADIATOR, LOWER
53238CBRACKET, HOOD BUMPER MOUNTING, RH
53239BBRACKET, HOOD BUMPER MOUNTING, LH
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53291DCLIP, RADIATOR SUPPORT TO FRAME
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53301GCUSHION, HOOD BUMPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53705FBRACE SUB-ASSY, FENDER APRON, RH
53706ABRACE SUB-ASSY, FENDER APRON, LH
53710JAPRON ASSY, FRONT FENDER, RH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53720BAPRON ASSY, FRONT FENDER, LH
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53787AGUSSET, FRONT FENDER APRON, LOWER RH
53788AGUSSET, FRONT FENDER APRON, LOWER LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
55137ABRACE, DASH TO FRAME, RH
55210CCLIP
55223AINSULATOR, DASH PANEL, OUTER
5701
7403
9010508457
main90105-08457
9010906380
main90109-06380
9011906786
main90119-06786
9011906A06
main90119-06A06
9011908B13
main90119-08B13
9162140614
main91621-40614
9415180840
main94151-80840
9461310601
main94613-10601
61 parts on this diagram · 1 diagram in section
