FRONT BUMPER & BUMPER STAY

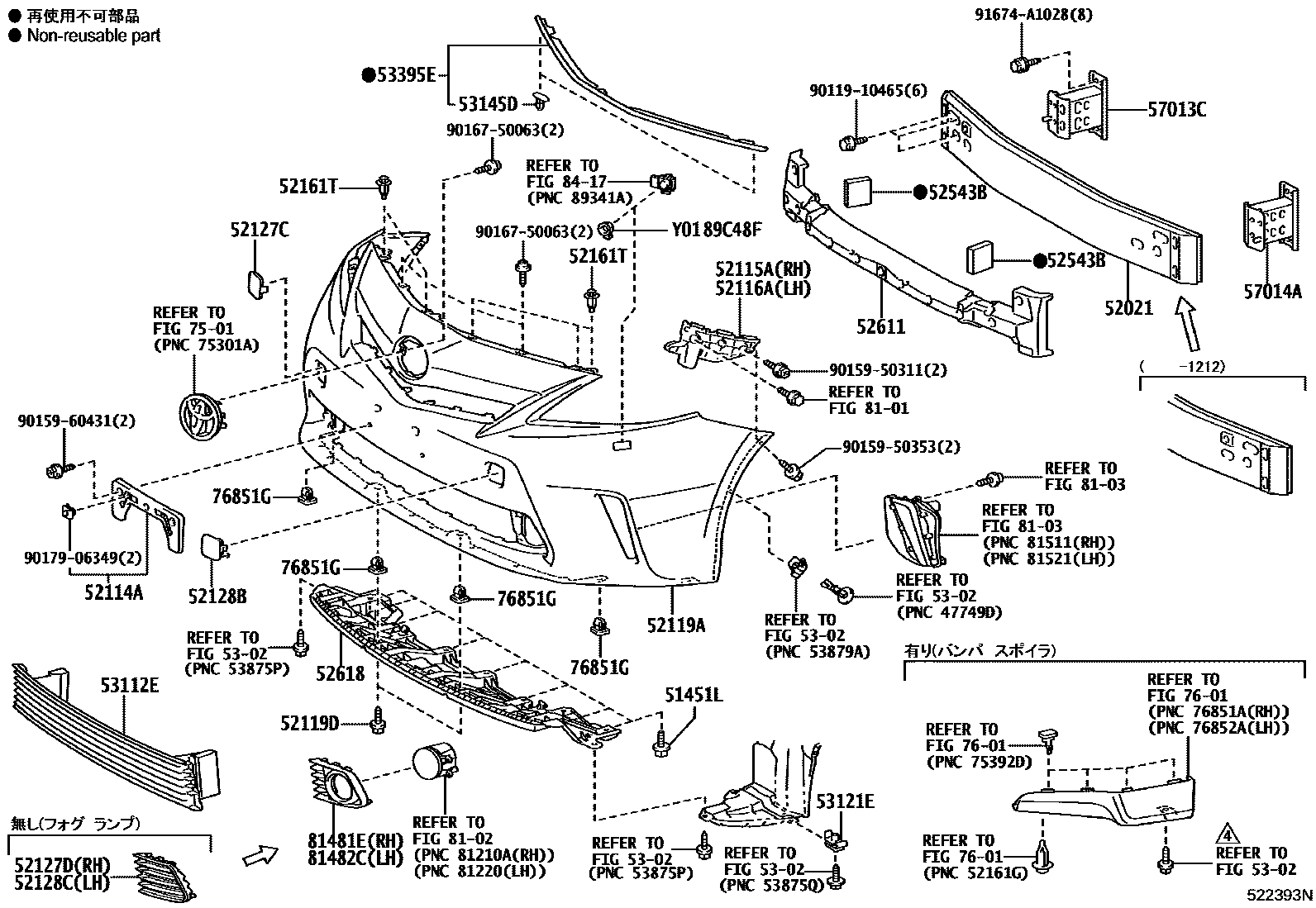

Parts diagram
51451LBOLT, NO.1
main90119-06767i201104-202103
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
main52021-47040i201212-201411
main52021-47060i201104-201212
main52021-47150i201411-202103
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
main52114-47090i201104-201411
main52114-47150i201411-202103
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-47030i201104-202103
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-47030i201104-202103
52119ACOVER, FRONT BUMPER
main52119-47240-A0i201104-201411
SUPER WHITE 2,040
sub52119-47955
main52119-47240-A1i201104-201407
sub52119-47955
main52119-47240-A1i201407-201409
sub52119-47955
main52119-47240-B0i201104-201411
SILVER ME.,1F7
sub52119-47955
main52119-47240-B2i201104-201411
GRAY ME.,1G3
sub52119-47955
main52119-47240-C0i201104-201411
BLACK,202
sub52119-47955
main52119-47240-D0i201104-201411
RED M.M.,3R3
sub52119-47955
main52119-47240-D1i201308-201411
BLACKISH RED MC.,3R0
sub52119-47955
main52119-47240-H0i201104-201411
CLEAR STREAM ME.,787
sub52119-47955
main52119-47240-J0i201104-201411
DK.BLUE MC.,8T5
sub52119-47955
main52119-47250-A0i201104-201411
sub52119-47956
main52119-47250-A0i201104-201411
SUPER WHITE 2,040
sub52119-47956
main52119-47250-A1i201407-201409
sub52119-47956
main52119-47250-A1i201104-201407
sub52119-47956
main52119-47250-A1i201104-201407
sub52119-47956
main52119-47250-A1i201407-201409
sub52119-47956
main52119-47250-B0i201104-201411
SILVER ME.,1F7
sub52119-47956
main52119-47250-B0i201104-201411
sub52119-47956
main52119-47250-B2i201104-201411
GRAY ME.,1G3
sub52119-47956
main52119-47250-B2i201104-201411
sub52119-47956
main52119-47250-C0i201104-201411
BLACK,202
sub52119-47956
main52119-47250-C0i201104-201411
sub52119-47956
main52119-47250-D0i201104-201411
sub52119-47956
main52119-47250-D0i201104-201411
RED M.M.,3R3
sub52119-47956
main52119-47250-D1i201308-201411
BLACKISH RED MC.,3R0
sub52119-47956
main52119-47250-D1i201308-201411
sub52119-47956
main52119-47250-H0i201104-201411
sub52119-47956
main52119-47250-H0i201104-201411
CLEAR STREAM ME.,787
sub52119-47956
main52119-47250-J0i201104-201411
DK.BLUE MC.,8T5
sub52119-47956
main52119-47250-J0i201104-201411
sub52119-47956
main52119-47650-A0i201411-201712
SUPER WHITE 2,040
sub52119-47949
main52119-47650-A1i201411-201712
WHITE PEARL CS.,070
sub52119-47949
main52119-47650-B0i201411-201712
SILVER ME.,1F7
sub52119-47949
main52119-47650-B1i201411-201712
GRAY ME.,1G3
sub52119-47949
main52119-47650-C0i201411-201712
ATTITUDE BLACK MC.,218
sub52119-47949
main52119-47650-C1i201605-201712
BLACKISH AGEHA GF.,221
sub52119-47949
main52119-47650-D0i201411-201712
SUPER RED 5,3P0
sub52119-47949
main52119-47650-E0i201411-201712
DARK SHERRY M.M.,4W4
sub52119-47949
main52119-47650-E1i201411-201712
ORANGE ME.,4R8
sub52119-47949
main52119-47650-J0i201411-201712
DK.BLUE MC.,8T5
sub52119-47949
main52119-47750-A1i201407-201409
sub52119-47955
main52119-47750-A1i201409-201411
sub52119-47955
main52119-47760-A1i201407-201409
sub52119-47956
main52119-47760-A1i201407-201409
sub52119-47956
main52119-47760-A1i201409-201411
sub52119-47956
main52119-47760-A1i201409-201411
sub52119-47956
main52119-47E00-A0i201712-202103
SUPER WHITE 2,040
sub52119-47969
main52119-47E00-A1i201712-202103
WHITE PEARL CS.,070
sub52119-47969
main52119-47E00-B0i201712-202008
SILVER ME.,1F7
sub52119-47969
main52119-47E00-B1i201712-202103
GRAY ME.,1G3
sub52119-47969
main52119-47E00-B2i202008-202103
SILVER ME.,1D6
sub52119-47969
main52119-47E00-C0i201712-202103
ATTITUDE BLACK MC.,218
sub52119-47969
main52119-47E00-C1i201712-202103
BLACKISH AGEHA GF.,221
sub52119-47969
main52119-47E00-D1i201712-202008
DK. RED M.M.,3Q3
sub52119-47969
main52119-47E00-D2i202008-202103
RED MC.,3T3
sub52119-47969
main52119-47E00-E1i201712-202103
DARK SHERRY M.M.,4W4
sub52119-47969
main52119-47E00-E2i201712-202008
STEEL BLONDE ME.,4X1
sub52119-47969
main52119-47E00-J0i201712-202008
DK.BLUE MC.,8T5
sub52119-47969
main52119-47E00-J1i202008-202103
DK. BLUE MC.,8X8
sub52119-47969
52119DSCREW, NO.1
main90159-60488i201104-202103
52127CCOVER, FRONT BUMPER HOLE
main52127-47030-A0i201104-201411
SUPER WHITE 2,040
sub52127-47905
main52127-47030-A1i201104-201407
sub52127-47905
main52127-47030-A1i201104-201409
sub52127-47905
main52127-47030-B0i201104-201411
SILVER ME.,1F7
sub52127-47905
main52127-47030-B1i201104-201411
GRAY ME.,1G3
sub52127-47905
main52127-47030-C0i201104-201411
BLACK,202
sub52127-47905
main52127-47030-D0i201104-201411
RED M.M.,3R3
sub52127-47905
main52127-47030-D1i201308-201411
BLACKISH RED MC.,3R0
sub52127-47905
main52127-47030-H0i201104-201411
CLEAR STREAM ME.,787
sub52127-47905
main52127-47030-J0i201104-201411
DK.BLUE MC.,8T5
sub52127-47905
main52127-47060i201411-202103
main52127-47090-A1i201407-201411
main52127-47090-A1i201409-201411
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
main52128-47020-A0i201104-201411
SUPER WHITE 2,040
sub52128-47905
main52128-47020-A1i201104-201409
sub52128-47905
main52128-47020-A1i201104-201407
sub52128-47905
main52128-47020-B0i201104-201411
SILVER ME.,1F7
sub52128-47905
main52128-47020-B1i201104-201411
GRAY ME.,1G3
sub52128-47905
main52128-47020-C0i201104-201411
BLACK,202
sub52128-47905
main52128-47020-D0i201104-201411
RED M.M.,3R3
sub52128-47905
main52128-47020-D1i201308-201411
BLACKISH RED MC.,3R0
sub52128-47905
main52128-47020-H0i201104-201411
CLEAR STREAM ME.,787
sub52128-47905
main52128-47020-J0i201104-201411
DK.BLUE MC.,8T5
sub52128-47905
main52128-47040i201411-202103
main52128-47070-A1i201409-201411
main52128-47070-A1i201407-201411
52128CCOVER, FRONT BUMPER HOLE, LH
52161TPIECE, FRONT BUMPER
main52161-16010i201104-202103
52543BSEAL, FRONT BUMPER
main52543-47030i201104-202103
52611ABSORBER, FRONT BUMPER ENERGY
main52611-47060i201104-201411
main52611-47100i201411-202103
52618ABSORBER, FRONT BUMPER, LOWER
main52618-47030i201104-201411
main52618-47060i201411-202103
5302
53112EGRILLE, RADIATOR, LOWER NO.1
main53112-47050i201104-201411
53121ECLIP(FOR FRONT BUMPER), NO.1
main90467-05114i201104-202103
53145DCLIP, RADIATOR GRILLE
main53145-60030i201104-202103
53395ESEAL, HOOD TO FRONT END PANEL
main53395-47030i201104-202103
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
main57013-47030i201104-202103
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
main57014-47030i201104-202103
7501
7601
76851GGROMMET, SCREW, NO.1
main90189-06193i201104-202103
8101
8102
8103
81481ECOVER, FOG LAMP, RH
main52030-47010i201104-201411
81482CCOVER, FOG LAMP, LH
main52040-47010i201104-201411
8417
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
9011910465
main90119-10465
9015950311
main90159-50311
9015950353
main90159-50353
9015960431
main90159-60431
9016750063
main90167-50063
9017906349
main90179-06349
91674A1028
main91674-A1028

39 parts on this diagram · 4 diagrams in section
