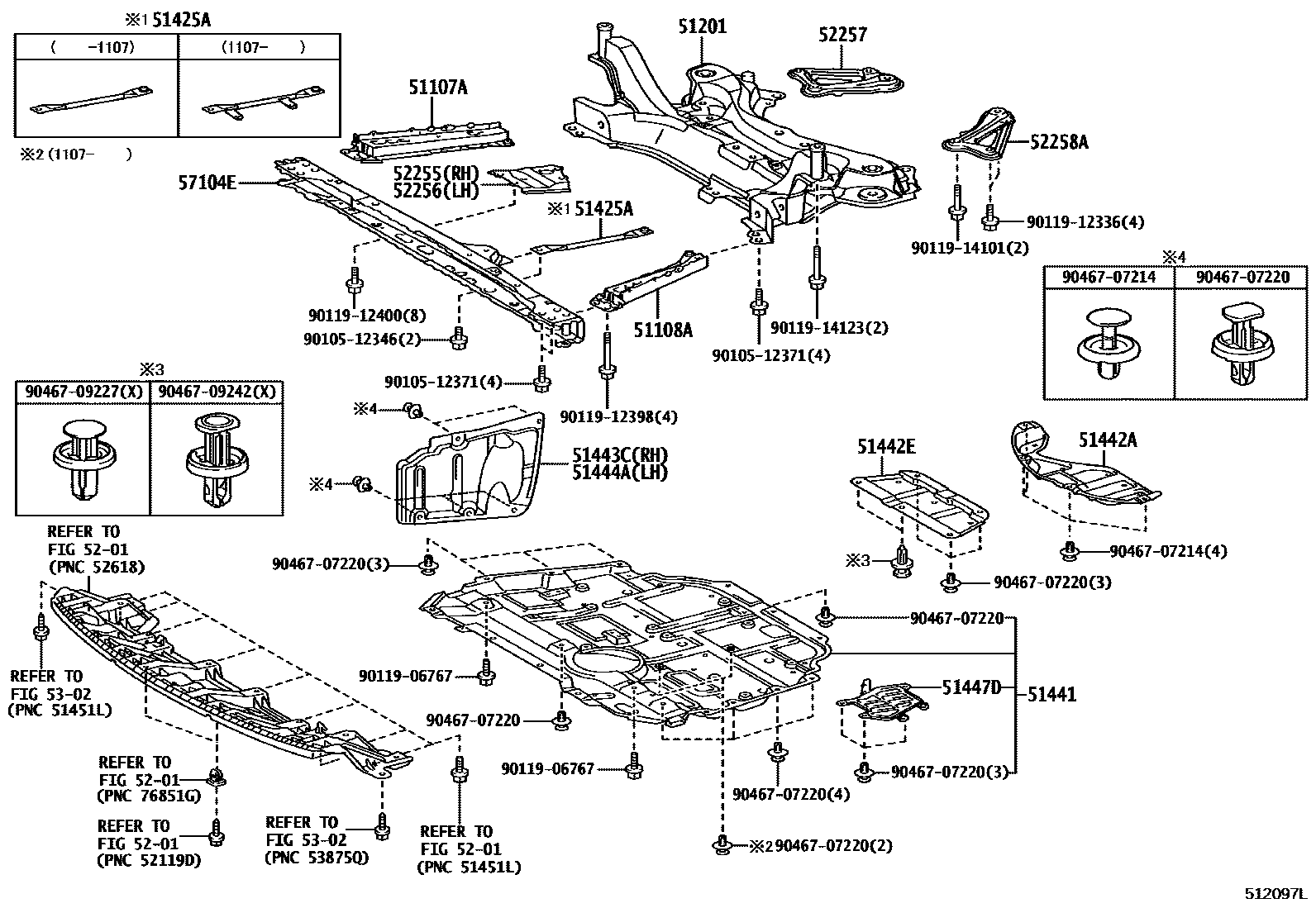

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1G'S OR GR SPORT

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-12010iZVW4#..CBU201104-202103

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-12010iZVW4#..CBU201104-202103

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iZVW4#..CBU201104-201212

sub51201-12442

main51201-12442iZVW4#..CBU201301-202009

sub51201-78010

main51201-78010iZVW4#..CBU202010-202103

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51408-47020iZVW4#..CBU201107-202103

main51425-12060iZVW4#..CBU201104-201107

51441COVER, ENGINE UNDER, NO.1

main51410-47040iZVW4#..CBU201104-202103

51442ACOVER, ENGINE UNDER, FRONT NO.3

main51442-12210iZVW4#..CBU201104-202103

51442ECOVER, ENGINE UNDER, NO.2

main51442-12270iZVW4#..CBU201104-202103

51443CCOVER, ENGINE UNDER, REAR RH

main51443-12080iZVW4#..CBU201104-202103

51444ACOVER, ENGINE UNDER, REAR LH

main51444-12050iZVW4#..CBU201104-202103

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-47020iZVW4#..CBU201104-202103

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iZVW4#..CBU201104-202103

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iZVW4#..CBU201104-202103

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-21040iZVW4#..CBU201104-202103

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-21040iZVW4#..CBU201104-202103

5302

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-47020iZVW4#..CBU201104-202103

9010512346

main90105-12346

9010512371

main90105-12371

9011906767

main90119-06767

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914123

main90119-14123

9046707214

main90467-07214

9046707220

main90467-07220

9046709227

main90467-09227

9046709242

main90467-09242

29 parts on this diagram · 2 diagrams in section
