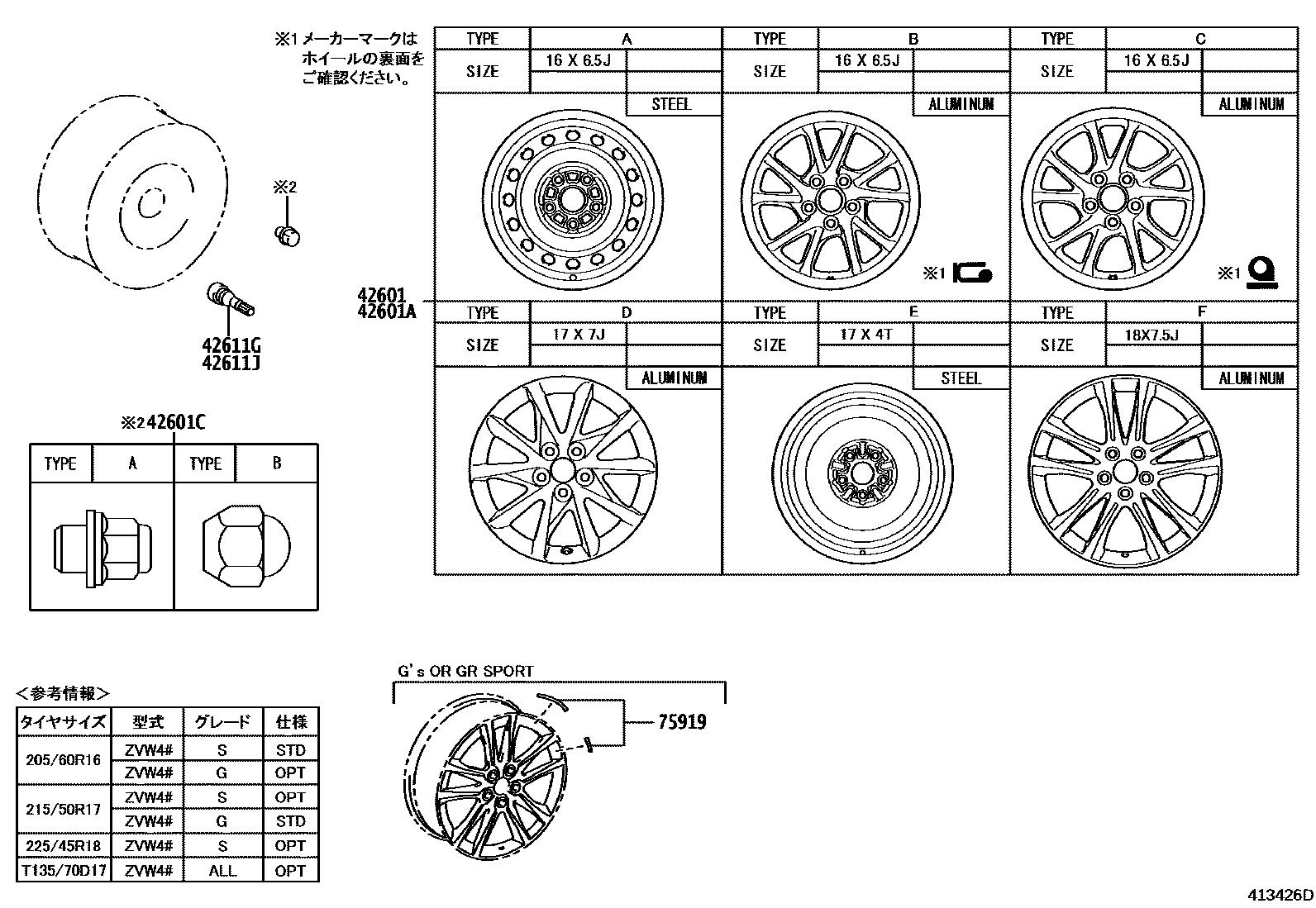

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-47230iZVW4#..S..CBU201104-202103

main42611-47230iZVW4#..S..CBU201104-201411

main42611-47240iZVW4#..S..CBU201104-201411

main42611-47240iZVW4#..G201104-202103

main42611-47250iZVW41..S..CBU201104-201411

main42611-47250iZVW41..S..CBU201104-201411

42601AWHEEL, DISC (FOR SPARE)

42601CNUT, HUB (FOR AXLE)

main90942-01033iZVW4#..CBU201104-202103

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iZVW4#..CBU201104-202103

42611JVALVE (FOR TUBELESS TIRE SPARE)

75919STICKER, WHEEL DECOR

main75919-WY090

6 parts on this diagram · 3 diagrams in section
