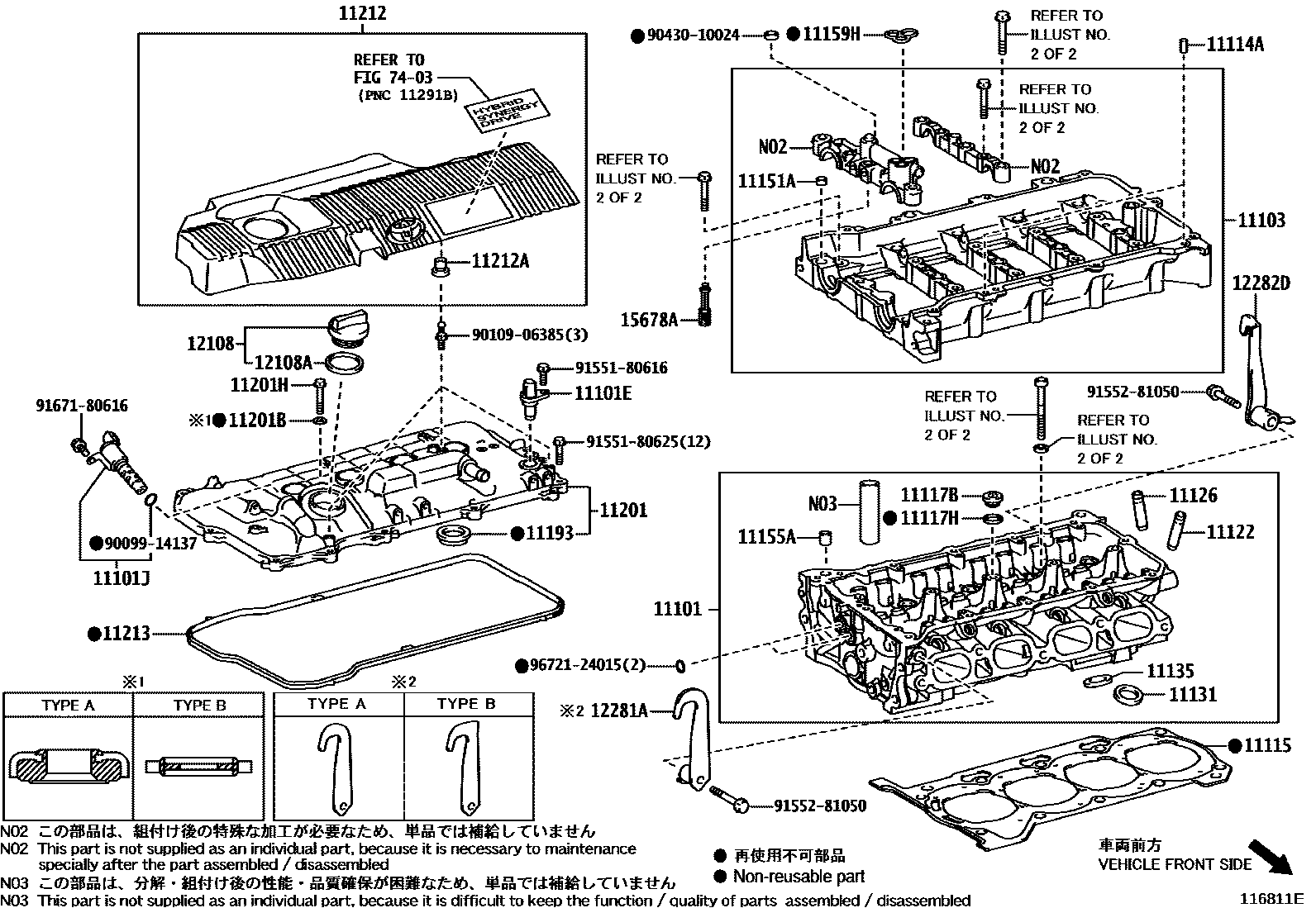

CYLINDER HEAD
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11114APIN, STRAIGHT
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11135SEAT, EXHAUST VALVE
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
11212COVER, CYLINDER HEAD, NO.2
11212ACUSHION, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
15678AFILTER, OIL CONTROL VALVE
7403
9009914137
main90099-14137
9010906385
main90109-06385
9043010024
main90430-10024
9155180616
main91551-80616
9155180625
main91551-80625
9155281050
main91552-81050
9167180616
main91671-80616
9672124015
main96721-24015
36 parts on this diagram · 2 diagrams in section
