HEV INVERTER

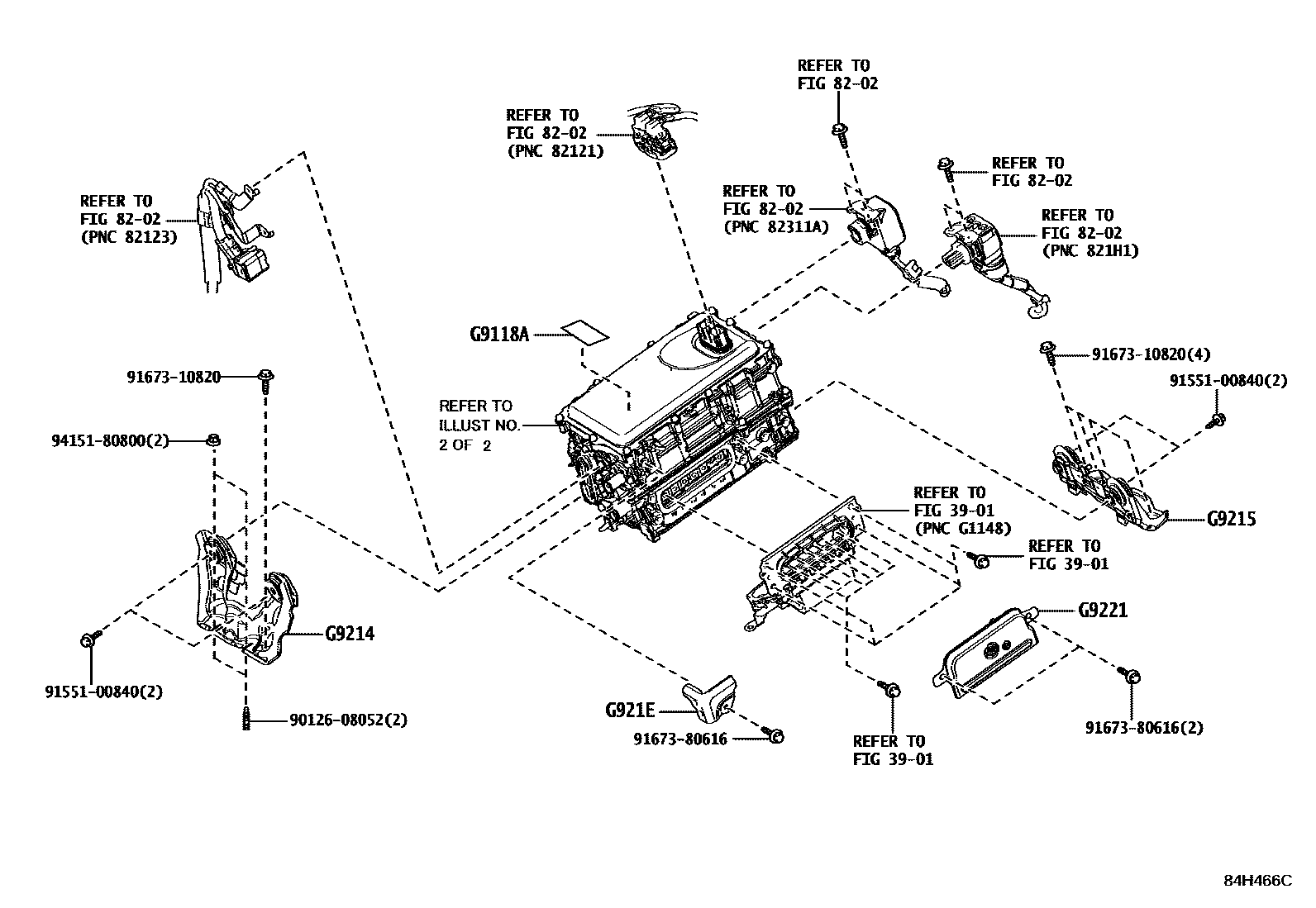

Parts diagram

3901

8202

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911876010i201905

G9214BRACKET, INVERTER, NO.1

mainG921447070i201609-201904

G9215BRACKET, INVERTER, NO.2

mainG921547050i201609-201904

G921EPROTECTOR, INVERTER

mainG921E47010i201609-201904

G9221COVER, INVERTER

mainG902247050i201609-201904

9012608052

main90126-08052

9155100840

main91551-00840

9167310820

main91673-10820

9167380616

main91673-80616

9415180800

main94151-80800

12 parts on this diagram · 2 diagrams in section
