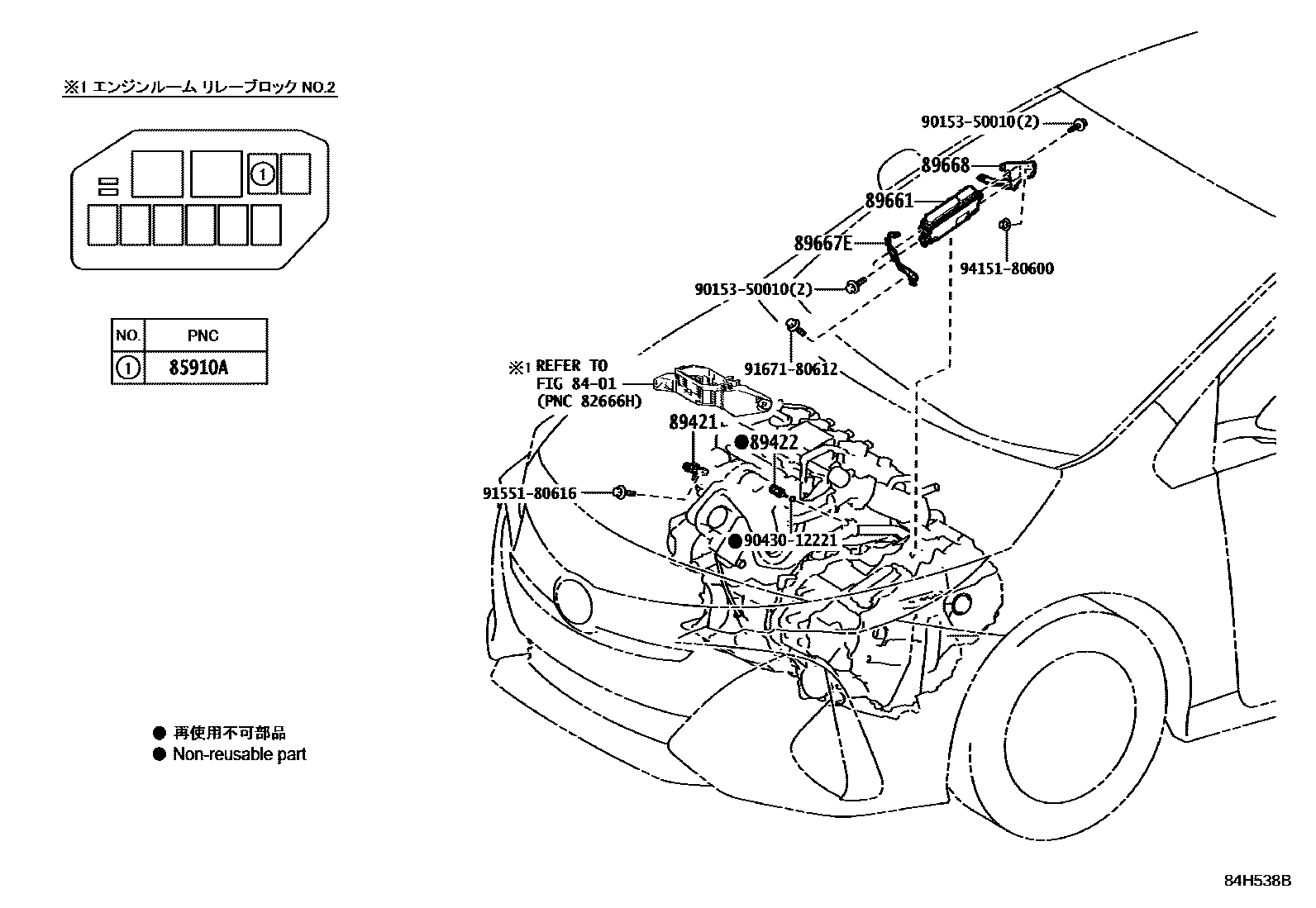

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iZVW52..CBU201609-201904

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iZVW52..CBU201609-201904

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVW52..CBU201609-201904

89661COMPUTER, ENGINE CONTROL

main89661-47760iZVW52..CBU201609-201808

sub89661-47761

main89661-47761iZVW52..CBU201809-201812

main89661-47B50iZVW52..CBU201812-202007

main89661-47D30iZVW52..CBU202007

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-47100iZVW52..CBU201609-201904

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-47050iZVW52..CBU201609-201904

9015350010

main90153-50010

9043012221

main90430-12221

9155180616

main91551-80616

9167180612

main91671-80612

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
