SWITCH & RELAY & COMPUTER

0001 1����� 0002 1�������� 1/2 0003 1�������� 1/2 0004 1�������� 2/2 0005 1�������� 2/2 0006 1��� 0007 1��� 0008 1������������ 0009 1������������ 0010 1������� 0011 1��� 0012 1��� & ��� 0013 1��� & ��� 0014 1���,���,��� & ������� 0015 1���,���,��� & �������

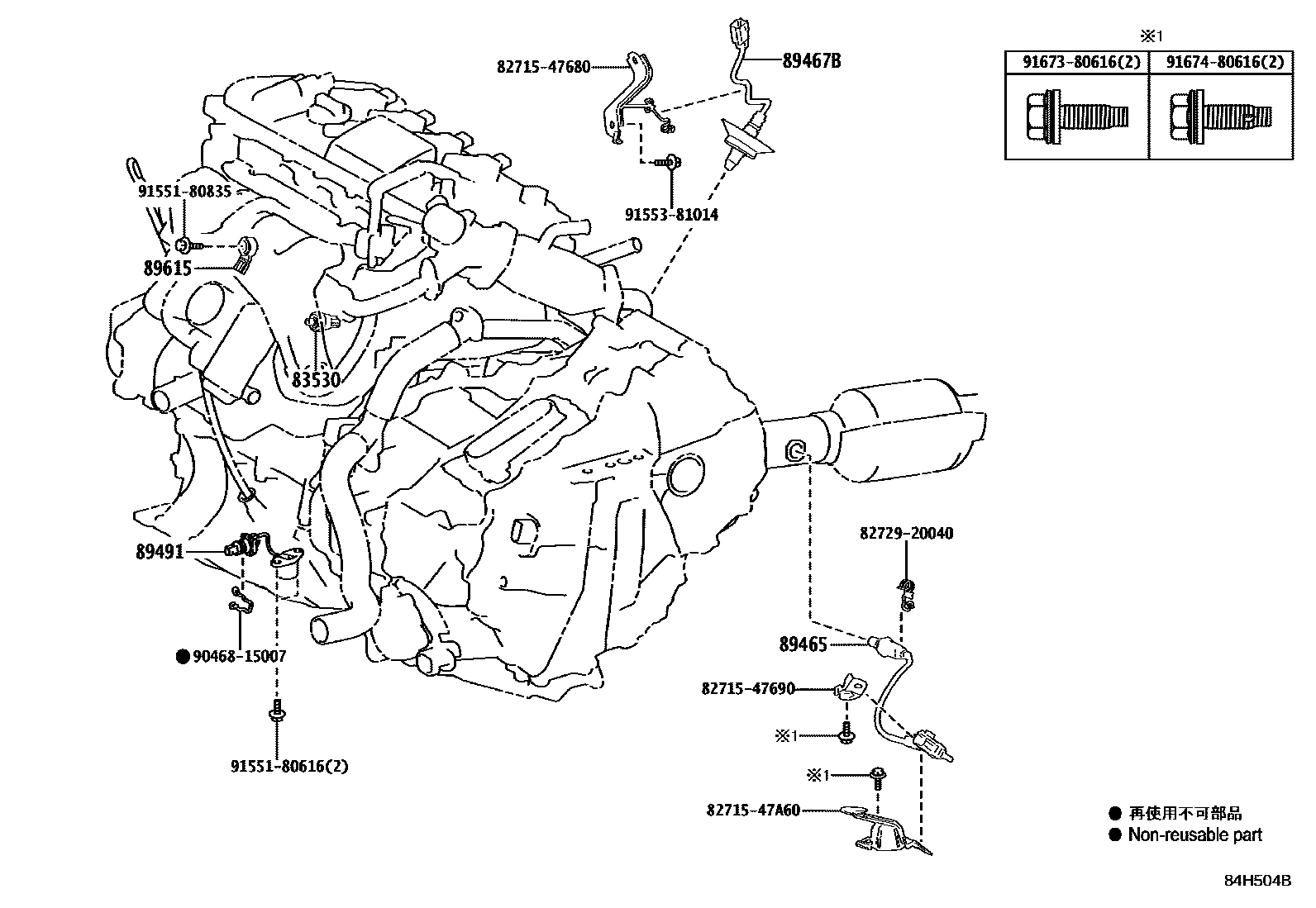

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12060iZVW52..CBU¥1,970201609-201904

89465SENSOR, OXYGEN

main89465-47090iZVW52..CBU¥6,400201609-201904

89467BSENSOR, AIR FUEL RATIO

main89467-47030iZVW52..CBU¥9,900201609-201904

89491SENSOR, ENGINE OIL LEVEL

main89491-28090iZVW52..CBU¥3,670202104-202204

sub89491-28091¥3,330

main89491-28091iZVW52..CBU¥3,330202205

main89491-47010iZVW52..CBU¥4,400201609-201808

sub89491-47011¥3,670

main89491-47011iZVW52..CBU¥3,670201809-202103

sub89491-28090¥3,670

89615SENSOR, KNOCK CONTROL

main89615-20090iZVW52..CBU¥2,370201609-201904

8271547680BRACKET,WIRING HARNESS CLAMP

main82715-47680¥570

8271547690BRACKET,WIRING HARNESS CLAMP

main82715-47690¥260

8271547A60BRACKET,WIRING HARNESS CLAMP

main82715-47A60¥900

8272920040

main82729-20040¥220

9046815007

main90468-15007¥80

9155180616

main91551-80616¥60

9155180835

main91551-80835¥80

9155381014

main91553-81014¥100

9167380616

main91673-80616¥60

9167480616

main91674-80616¥60

15 parts on this diagram · 15 diagrams in section
