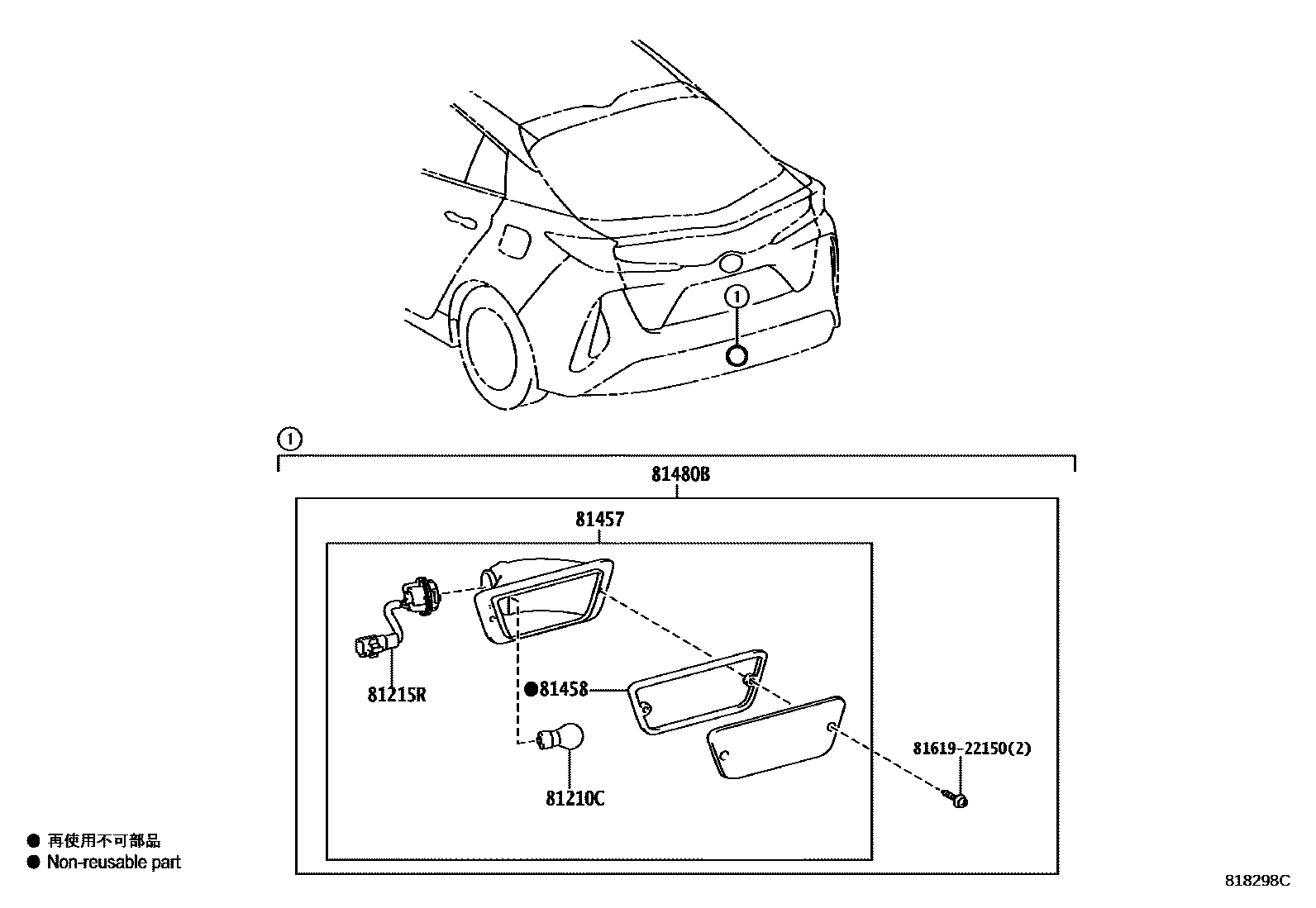

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main99132-11210iZVW52..S..CBU201710-201904

81215RSOCKET & WIRE, REAR FOG LAMP

main81459-52110iZVW52..S..CBU201710-201904

81457LENS, REAR FOG LAMP

main81457-52110iZVW52..S..CBU201710-201904

81458PACKING, REAR FOG LAMP

main81458-28030iZVW52..S..CBU201710-201904

81480BLAMP ASSY, REAR FOG

main81480-52110iZVW52..S..CBU201710-201904

8161922150

main81619-22150

6 parts on this diagram · 1 diagram in section
