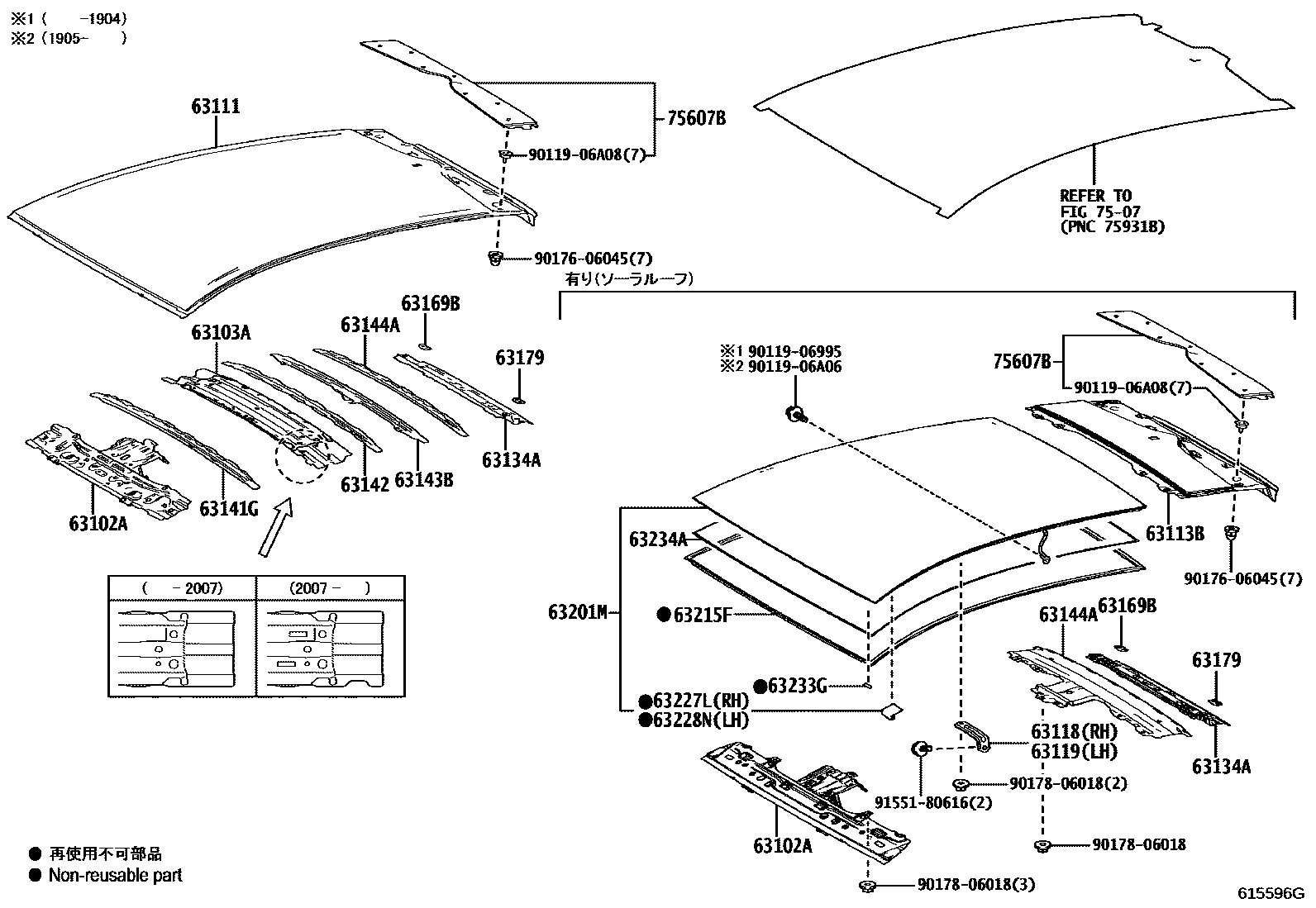

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-47902iZVW52..CBU201905

main63102-47904iZVW52..S..CBU201905

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-47040iZVW52..CBU201609-201904

main63103-47050iZVW52..CBU202007-202101

63111PANEL, ROOF

main63111-47060iZVW52..CBU201609-201904

63113BPANEL, ROOF, REAR

main63113-47020iZVW52..S..CBU201612-201904

63118SUPPORT, ROOF PANEL, RH

main63118-47020iZVW52..S..CBU201905

63119SUPPORT, ROOF PANEL, LH

main63118-47020iZVW52..S..CBU201612-201904

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-47040iZVW52..CBU201609-201904

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63142-47040iZVW52..CBU201609-201904

63142REINFORCEMENT, ROOF PANEL, NO.2

main63143-47050iZVW52..CBU201609-201904

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-47050iZVW52..CBU201609-201904

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63177-47010iZVW52..CBU201609-201904

main63142-47060iZVW52..A,PREM202007

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-47010iZVW52..CBU201609-201904

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-47010iZVW52..CBU201609-201904

63201MGLASS SUB-ASSY, ROOF WINDOW, NO.1

main63202-47070iZVW52..S..CBU201612-201904

63215FMOULDING, ROOF WINDOW, UPPER

main63215-47020iZVW52..S..CBU201612-201904

63227LCLIP, ROOF WINDOW

main63227-47030iZVW52..S..CBU201612-201904

63228NCLIP, ROOF WINDOW, SIDE

main63228-47030iZVW52..S..CBU201612-201904

63233GPROTECTOR, ROOF WINDOW MOULDING, LOWER

main63233-47040×2iZVW52..S..CBU201612-201904

63234ASEAL, ROOF WINDOW, NO.1

main63234-47010iZVW52..S..CBU201612-201904

7507

75607BMOULDING SUB-ASSY, ROOF TOP

main75607-47010iZVW52..CBU201609-201904

9011906995

main90119-06995

9011906A06

main90119-06A06

9011906A08

main90119-06A08

9017606045

main90176-06045

9017806018

main90178-06018

9155180616

main91551-80616

27 parts on this diagram · 1 diagram in section
