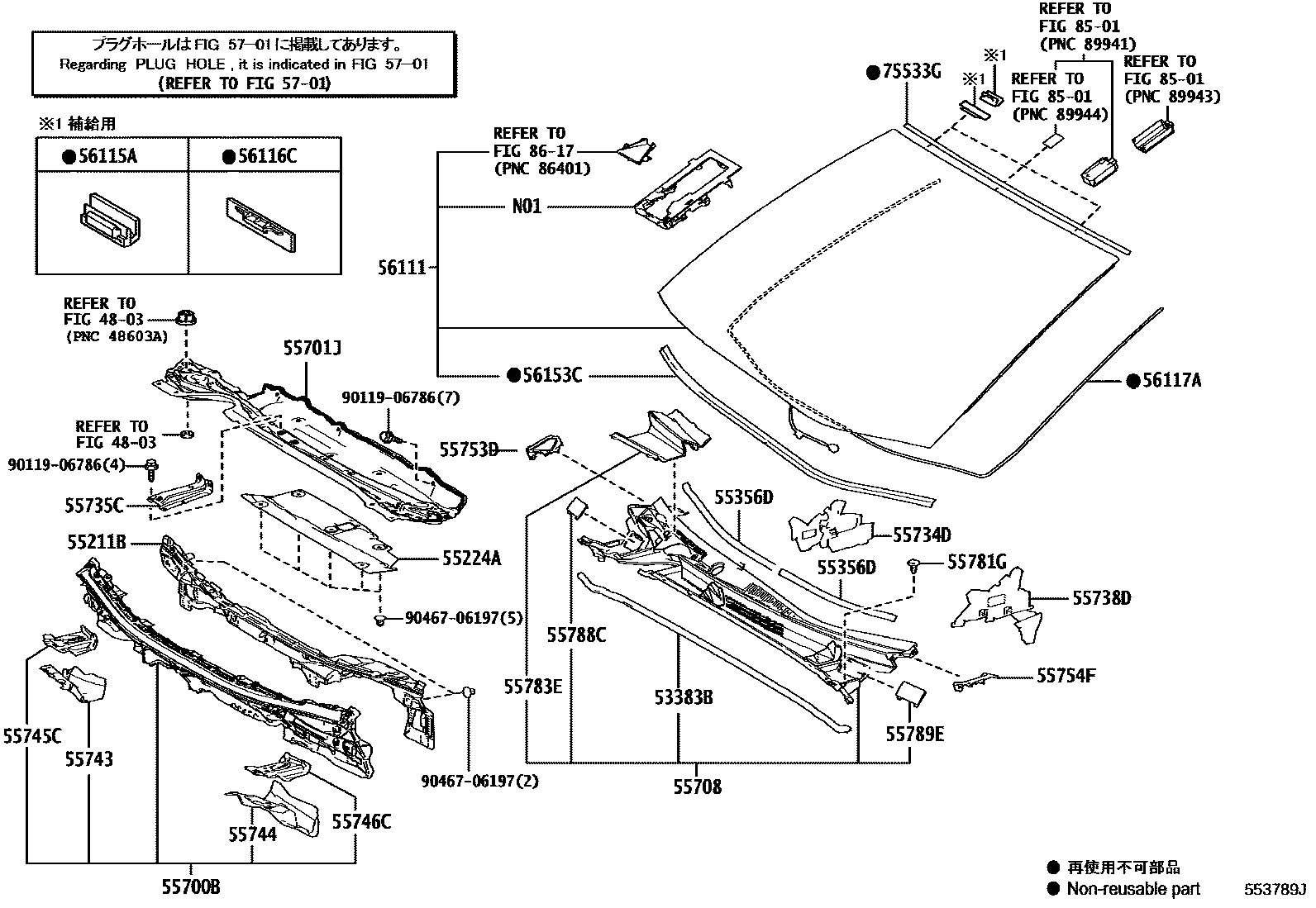

COWL PANEL & WINDSHIELD GLASS
4803
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55734DPLATE, WATER GUARD
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55745CREINFORCEMENT, COWL TOP, INNER RH
55746CREINFORCEMENT, COWL TOP, INNER LH
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55788CPROTECTOR, COWL TOP VENTILATOR LOUVER, RH
55789EPROTECTOR, COWL TOP VENTILATOR LOUVER, LH
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
56153CMOULDING, FRONT WINDOW, INNER CENTER
5701
75533GMOULDING, WINDSHIELD, OUTSIDE
8501
8617
9011906786
9046706197
32 parts on this diagram · 2 diagrams in section
