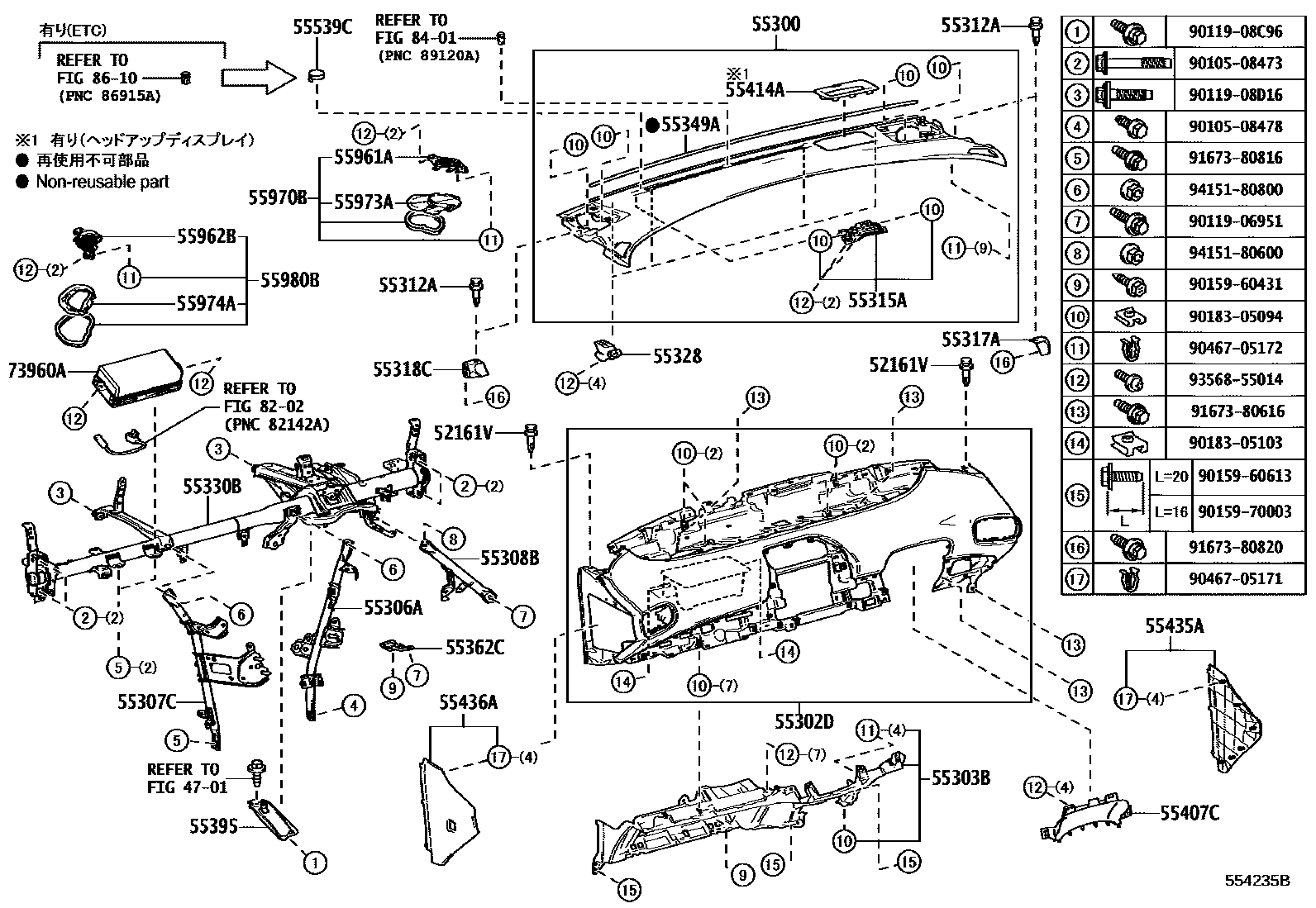

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1TYPE A 0002 1TYPE B 0003 1��������� 0004 1����� 0005 1���������� 0006 1��(����� ��������) 0007 1���������, ��(����� ��������)0008 1�����, ��(����� ��������) 0009 1����������, ��(����� ��������

4701

52161VPIECE, INSTRUMENT PANEL

main52161-16010iZVW52..CBU¥120201609-201904

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-47330-C0iZVW52..PREM201609-201610

BLACK,TRIM1#,2#

main55300-47331-C0iZVW52..PREM201610-201904

BLACK,TRIM1#,2#

main55300-47340-C0iZVW52..A,S201609-201610

BLACK,TRIM1#,2#

main55300-47341-C0iZVW52..S..CBU201610-202106

BLACK,TRIM1#,2#

55302DPANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1

main55302-47120-B0iZVW52..A,PREM201609-201610

main55302-47120-B0iZVW52..A,PREM201609-201610

main55302-47120-C0iZVW52..A,PREM201609-201610

main55302-47120-C0iZVW52..A,PREM201609-201610

main55302-47121-B0iZVW52..A,PREM201609-201904

main55302-47121-B0iZVW52..A,PREM201609-201904

main55302-47121-C0iZVW52..A,PREM201609-201904

main55302-47121-C0iZVW52..A,PREM201609-201904

main55302-47140-B0iZVW52..S201609-201610

main55302-47140-C1iZVW52..S201609-201610

main55302-47141-B0iZVW52..CBU201905

COOL GRAY/BLACK,TRIM1#

main55302-47141-B0iZVW52..S..CBU201609-201904

main55302-47141-C1iZVW52..S..CBU201609-201904

main55302-47141-C1iZVW52..CBU201905

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-47090-C0iZVW52..S201609-201610

main55303-47091-C0iZVW52..CBU201905

BLACK,TRIM1#,2#

main55303-47091-C0iZVW52..S..CBU201609-201904

main55303-47110-C0iZVW52..S201609-201610

main55303-47110-C0iZVW52..S201609-201610

main55303-47111-C0iZVW52..A,PREM201609-201904

main55303-47111-C0iZVW52..A,PREM201609-201904

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47120iZVW52..CBU¥3,340201609-202006

sub55306-47150¥2,780

main55306-47140iZVW52..S..CBU¥3,340201609-201904

sub55306-47160¥2,780

main55306-47150iZVW52..CBU¥2,780202007

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-47060iZVW52..CBU¥2,780201609-201904

main55307-47090iZVW52..S..CBU¥2,780201609-201904

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-47060iZVW52..CBU¥1,300201609-201904

55312ACLIP, INSTRUMENT PANEL

main52161-16010iZVW52..CBU¥120201609-201904

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-47090iZVW52..CBU¥650201609-201904

55317APANEL, INSTRUMENT SIDE, RH

main55317-47060iZVW52..CBU¥320201609-201904

55318CPANEL, INSTRUMENT SIDE, LH

main55318-47070iZVW52..CBU¥320201609-201904

55328PIN, INSTRUMENT PANEL, NO.1

main55328-47170iZVW52..CBU¥410201609-201904

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47171iZVW52..CBU¥15,400201609-201904

55349ACUSHION, INSTRUMENT PANEL

main55349-47030iZVW52..CBU¥800201609-201904

55362CBRACKET, PARKING BRAKE MOUNTING

main55362-47060iZVW52..CBU¥440201609-201904

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-47020iZVW52..CBU¥1,040201609-201904

55407CCOVER SUB-ASSY, INSTRUMENT, LOWER

main55407-47020iZVW52..CBU¥2,800201609-201904

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-47120-C0iZVW52..A201609-201904

BLACK,TRIM1#,2#

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-47050-C0iZVW52..CBU201609-201904

BLACK,TRIM1#,2#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-47050-C0iZVW52..CBU201609-201904

BLACK,TRIM1#,2#

55539CCOVER, SPARE SWITCH HOLE

main55539-47010-C0iZVW52..CBU201609-201904

BLACK,TRIM1#,2#

main55539-47010-C0iZVW52..CBU201609-201904

55961ANOZZLE, SIDE DEFROSTER, RH

main55961-47040-C0iZVW52..CBU201609-201904

BLACK,TRIM1#,2#

55962BNOZZLE, SIDE DEFROSTER, LH

main55962-47020-C0iZVW52..CBU201609-201904

BLACK,TRIM1#,2#

55970BNOZZLE ASSY, SIDE DEFROSTER, RH

main55970-47010-C0iZVW52..CBU201609-201904

BLACK,TRIM1#,2#

55973ADUCT, SIDE DEFROSTER NOZZLE, NO.3

main55973-47060iZVW52..CBU¥650201609-201904

55974ADUCT, SIDE DEFROSTER NOZZLE, NO.4

main55974-47020iZVW52..CBU¥650201609-201904

55980BNOZZLE ASSY, SIDE DEFROSTER, LH

main55980-47010-C0iZVW52..CBU201609-201904

BLACK,TRIM1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47110iZVW52..CBU¥83,200201609-201904

8202

8401

8610

9010508473

main90105-08473¥100

9010508478

main90105-08478¥80

9011906951

main90119-06951¥80

9011908C96

main90119-08C96¥80

9011908D16

main90119-08D16¥100

9015960431

main90159-60431¥70

9015960613

main90159-60613¥60

9015970003

main90159-70003¥60

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9167380820

main91673-80820¥80

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

50 parts on this diagram · 9 diagrams in section
