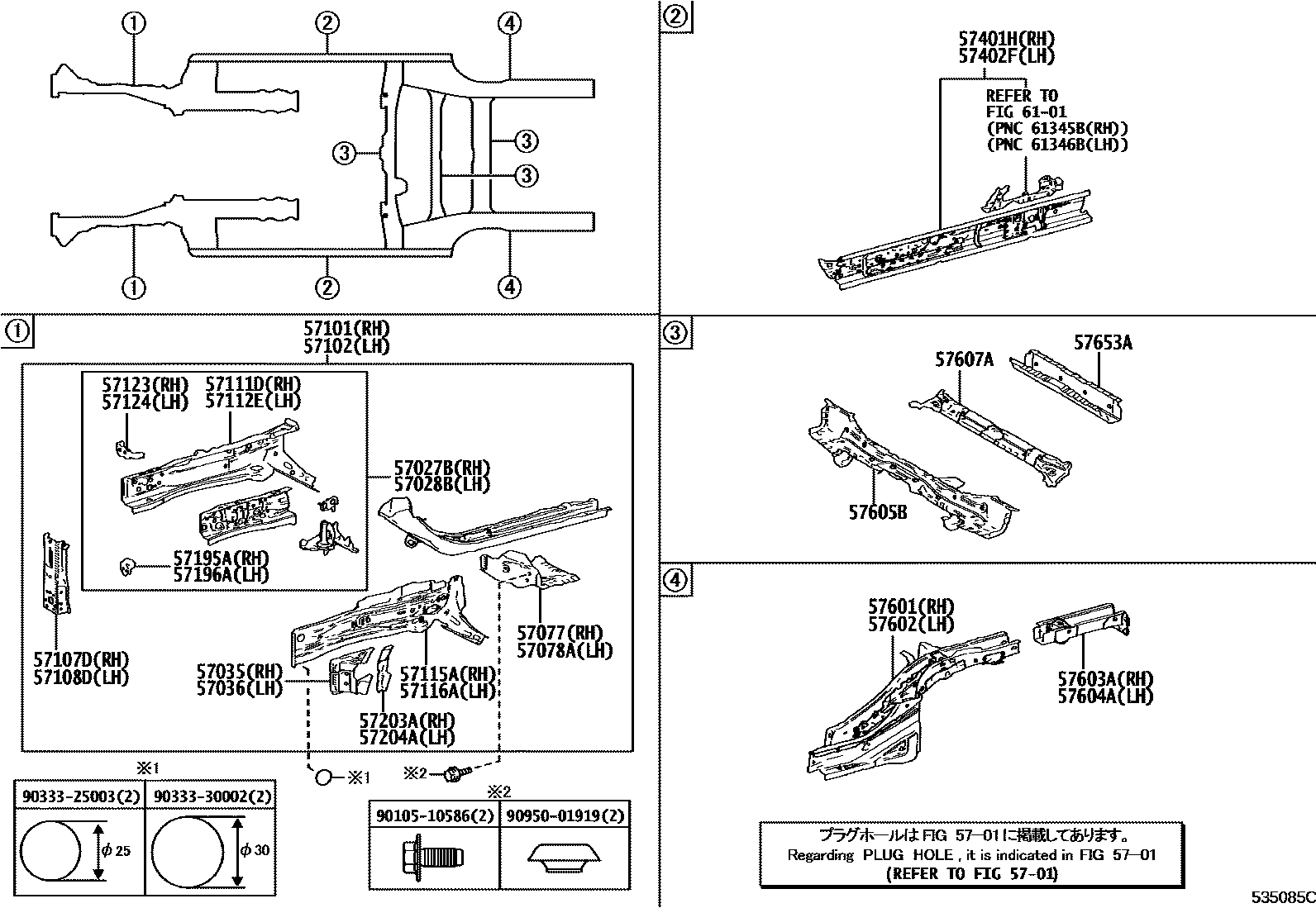

FLOOR SIDE MEMBER

5701

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-47020iZVW52..CBU201609-201711

sub57027-47021

main57027-47021iZVW52..CBU201711-201904

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-47040iZVW52..CBU201609-201904

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-47020iZVW52..CBU201609-201804

sub57035-47021

main57035-47021iZVW52..CBU201805-201904

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-47030iZVW52..CBU201609-201804

sub57036-47031

main57036-47031iZVW52..CBU201805-201904

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-47040iZVW52..CBU201609-201907

sub57077-47041

main57077-47050iZVW52..CBU201908

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-47040iZVW52..CBU201609-201907

sub57078-47041

main57078-47050iZVW52..CBU201908

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-47070iZVW52..CBU201609-201907

sub57101-47071

main57101-47080iZVW52..CBU201908

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-47070iZVW52..CBU201908

main57102-47090iZVW52..CBU201609-201907

sub57102-47091

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-47030iZVW52..CBU201609-201904

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-47030iZVW52..CBU201609-201904

57111DMEMBER, FRONT SIDE, INNER RH

main57111-47030iZVW52..CBU201609-201904

57112EMEMBER, FRONT SIDE, INNER LH

main57112-47030iZVW52..CBU201609-201904

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-47901iZVW52..CBU201609-201904

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-47902iZVW52..CBU201609-201904

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-47020iZVW52..CBU201609-201904

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-47020iZVW52..CBU201609-201904

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-47010iZVW52..CBU201609-201904

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-47030iZVW52..CBU201609-201904

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-47010iZVW52..CBU201609-201804

sub57203-47011

main57203-47011iZVW52..CBU201805-201904

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-47010iZVW52..CBU201609-201804

sub57204-47011

main57204-47011iZVW52..CBU201805-201904

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-47080iZVW52..CBU201609-201710

sub57401-47081

main57401-47081iZVW52..CBU201711-201904

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-47140iZVW52..CBU201609-201710

sub57402-47141

main57402-47141iZVW52..CBU201711-201904

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12B70iZVW52..CBU201609-202201

main57601-12C30iZVW52..CBU202201

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12C50iZVW52..CBU201609-202201

main57602-12D10iZVW52..CBU202201

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-47060iZVW52..CBU201609-201904

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-47060iZVW52..CBU201609-201904

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-47080iZVW52..CBU201609-201904

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-47020iZVW52..CBU201609-201904

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-47040iZVW52..CBU201609-201811

main57653-47050iZVW52..CBU201811-201904

6101

9010510586

main90105-10586

9033325003

main90333-25003

9033330002

main90333-30002

9095001919

main90950-01919

35 parts on this diagram · 1 diagram in section
