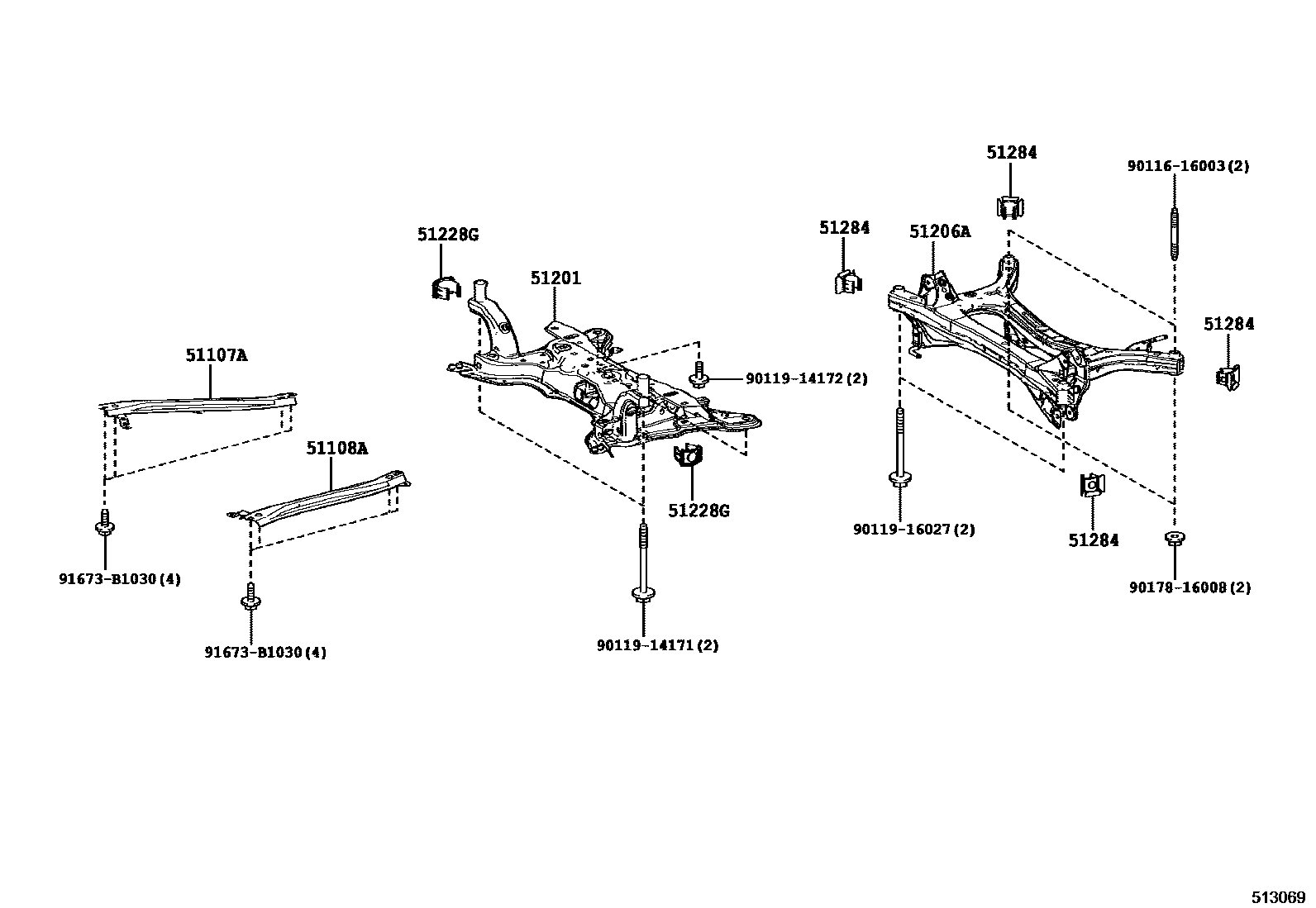

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1��������������� 0002 1�������� 0003 1��������(GR SPORT)

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-47020iZVW52..CBU¥3,020201609-201904

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-47020iZVW52..CBU¥3,020201609-201904

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47070iZVW52¥69,200201609-201704

sub51201-47071¥69,200

main51201-47071iZVW52..CBU¥69,200201705-201902

sub51201-47072¥57,600

main51201-47072iZVW52..CBU¥57,600201903-201904

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-47011iZVW52¥60,000201609-201702

sub51206-47012¥60,000

main51206-47012iZVW52..CBU¥60,000201703-202011

sub51206-47013¥50,000

main51206-47013iZVW52..CBU¥50,000202012

51228GPLATE, FRONT SUSPENSION MEMBER

main51228-47010iZVW52..CBU¥220201609-201904

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iZVW52..CBU¥340201609-202012

9011616003

main90116-16003¥540

9011914171

main90119-14171¥430

9011914172

main90119-14172¥310

9011916027

main90119-16027¥540

9017816008

main90178-16008¥190

91673B1030

main91673-B1030¥120

12 parts on this diagram · 3 diagrams in section
