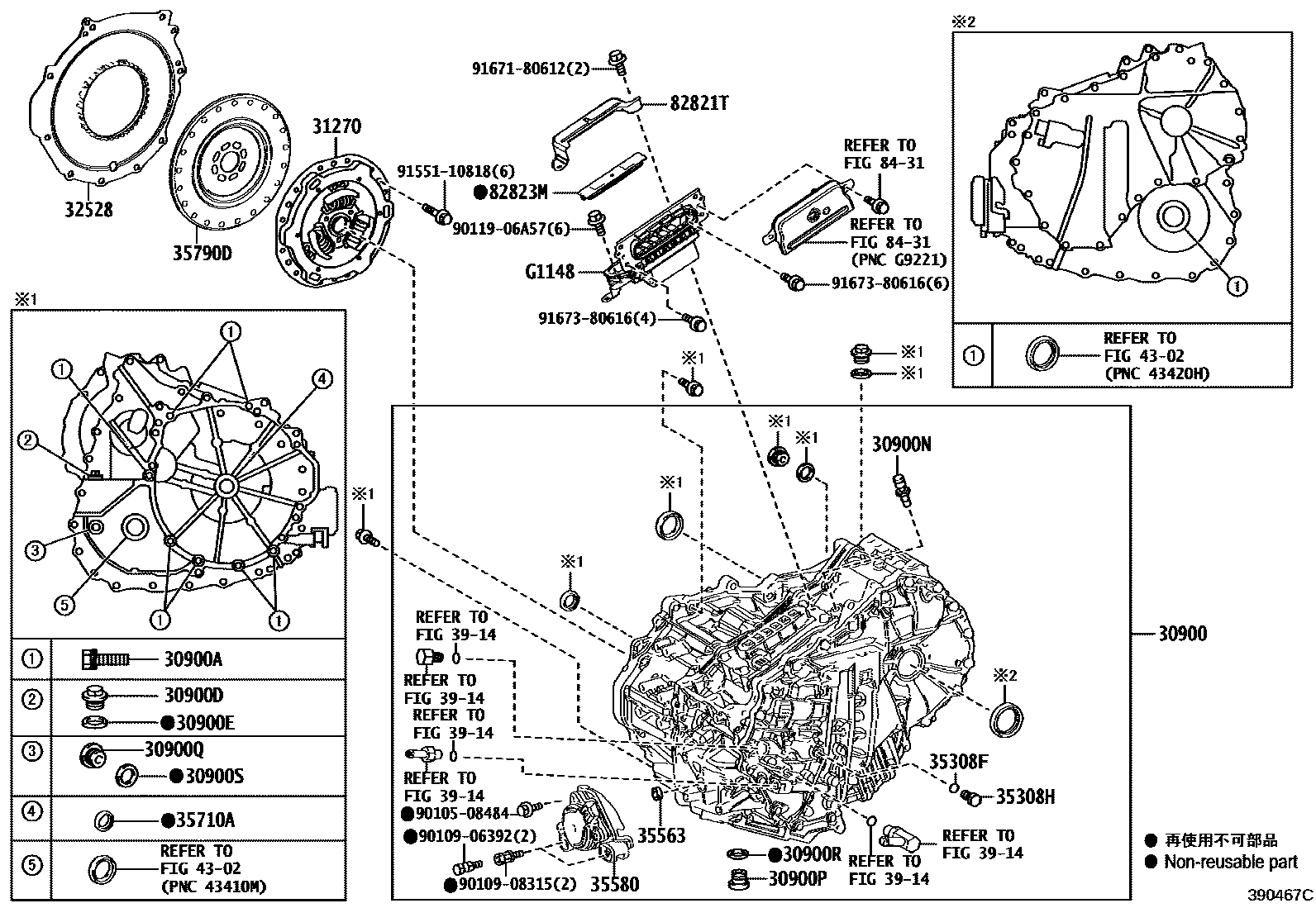

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
sub30900-47240
30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
31270DAMPER ASSY, TRANSMISSION INPUT
35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35563SEAL, SHIFT CONTROL ACTUATOR
35580ACTUATOR ASSY, SHIFT CONTROL
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
35790DCLUTCH ASSY, 1 WAY
3914
4302
82821TCOVER, CONNECTOR
82823MCAP, TERMINAL
8431
G1148CABLE, MOTOR
9010508484
main90105-08484
9010906392
main90109-06392
9010908315
main90109-08315
9011906A57
main90119-06A57
9155110818
main91551-10818
9167180612
main91671-80612
9167380616
main91673-80616
30 parts on this diagram · 1 diagram in section
