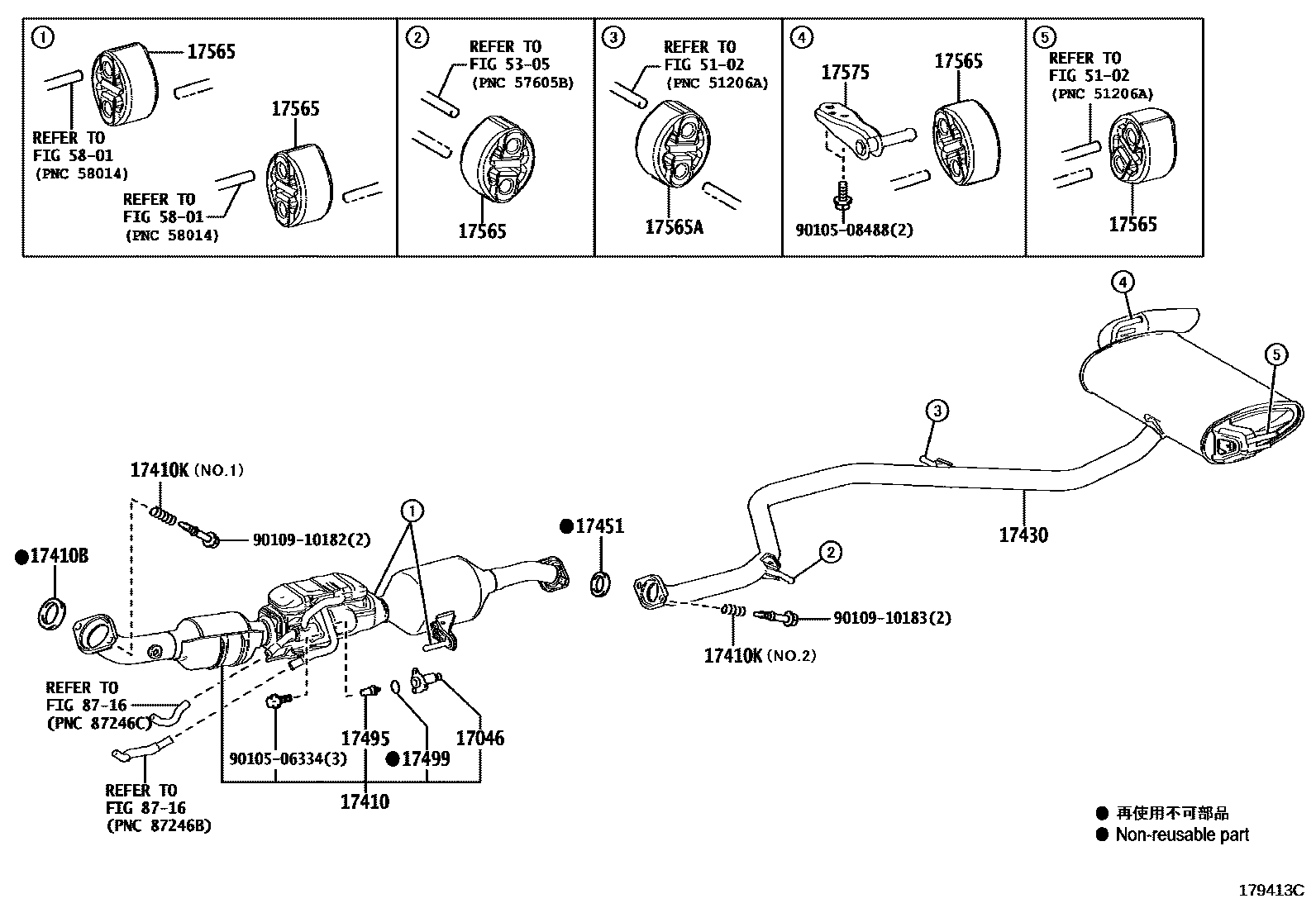

EXHAUST PIPE

0001 1 0002 1 0003 1��������

17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL

main17046-24010i2ZRFXE..ZVW52..CBU201908

main17046-37100i2ZRFXE..ZVW52..CBU201609-201908

17410PIPE ASSY, EXHAUST, FRONT

main17410-37B60i2ZRFXE..ZVW52..CBU201609-201810

sub17410-37B62

main17410-37B62i2ZRFXE..ZVW52..CBU201810-201908

main17410-37C70i2ZRFXE..ZVW52..CBU201908

17410BGASKET, EXHAUST PIPE

main17451-28040i2ZRFXE..ZVW52..CBU201609-201904

sub17451-28041

17410KSPRING, EXHAUST PIPE

main90501-35035i2ZRFXE..ZVW52..CBU201609-201904

main90501-35037i2ZRFXE..ZVW52..CBU201609-201904

17430PIPE ASSY, EXHAUST, TAIL

main17430-37530i2ZRFXE..ZVW52..CBU201812-201907

sub17430-37A90

main17430-37740i2ZRFXE..ZVW52..CBU201609-201812

sub17430-37741

main17430-37741i2ZRFXE..ZVW52..CBU201812-201907

sub17430-37A80

main17430-37770i2ZRFXE..ZVW52..CBU201701-201812

sub17430-37530

main17430-37A80i2ZRFXE..ZVW52..CBU201908

main17430-37A90i2ZRFXE..ZVW52..CBU201908

17451GASKET, EXHAUST PIPE

main17451-23042i2ZRFXE..ZVW52..CBU201609-201904

sub17451-23043

17495ACTUATOR, EXHAUST PIPE GAS CONTROL

main17495-24010i2ZRFXE..ZVW52..CBU201908

main17495-37010i2ZRFXE..ZVW52..CBU201609-201804

main17495-37020i2ZRFXE..ZVW52..CBU201805-201908

17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR

main17499-24010i2ZRFXE..ZVW52..CBU201908

main17499-37020i2ZRFXE..ZVW52..CBU201609-201908

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040i2ZRFXE..ZVW52..CBU201609-201904

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i2ZRFXE..ZVW52..CBU201609-201904

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-37030i2ZRFXE..ZVW52..CBU201609-201904

5102

5305

5801

8716

9010506334

main90105-06334

9010508488

main90105-08488

9010910182

main90109-10182

9010910183

main90109-10183

19 parts on this diagram · 3 diagrams in section
