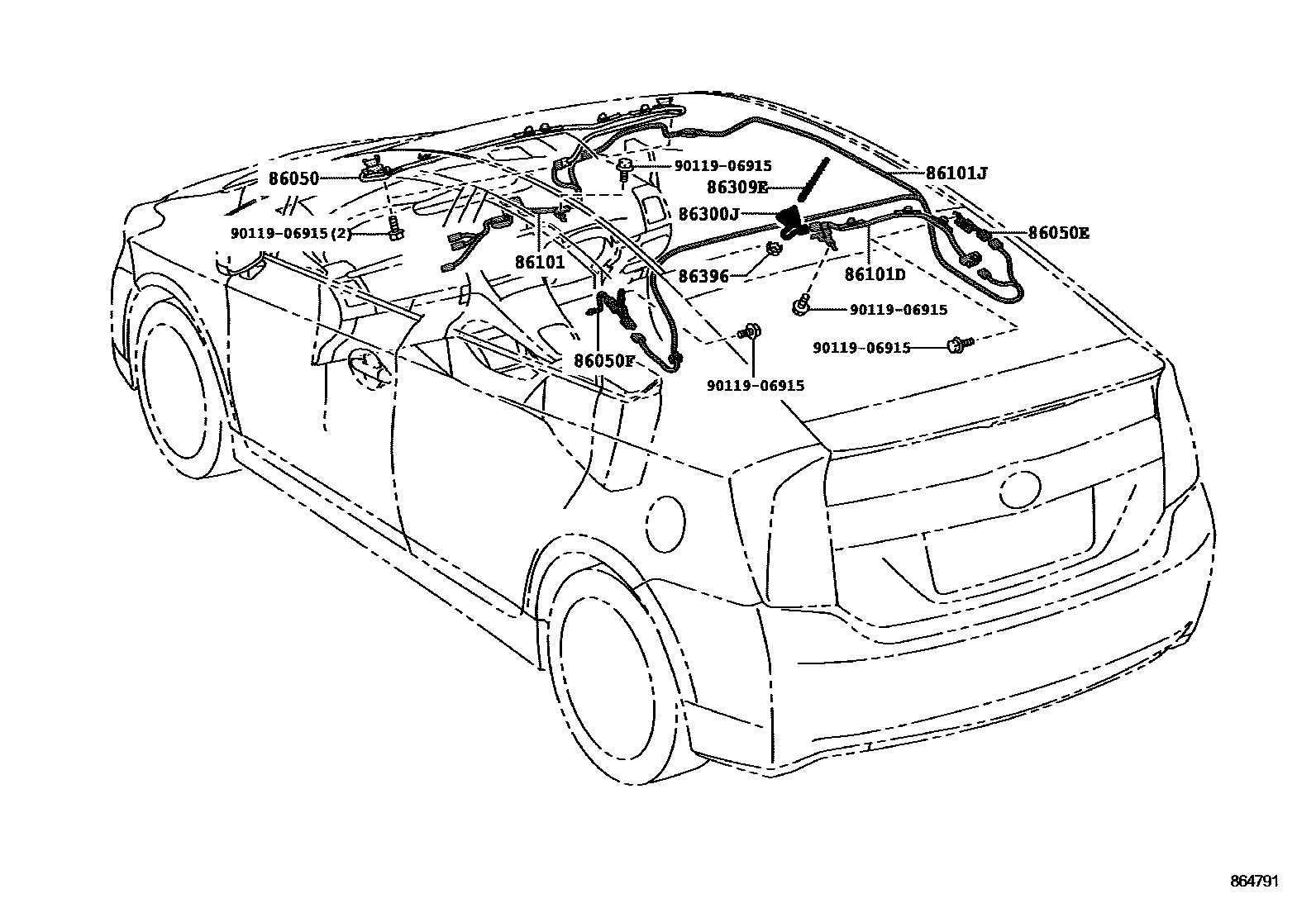

ANTENNA

86050ANTENNA ASSY, TELEVISION

main86050-47020iZVW35..G201201

86050EANTENNA ASSY, TELEVISION

main86050-47030iZVW35..G201201

86050FANTENNA ASSY, TELEVISION

main86050-47040iZVW35..G201201

86101CORD SUB-ASSY, ANTENNA

main86101-47840iZVW35201201

main86101-47210iZVW35..G201201

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-47860iZVW35201201

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-47850iZVW35201201

main86101-47870iZVW35..G201201

86300JANTENNA ASSY, ROOF

main86300-47110iZVW35201201

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-47060iZVW35201201

86396NUT, ANTENNA

main86396-47010iZVW35201201

9011906915

main90119-06915

10 parts on this diagram · 1 diagram in section
