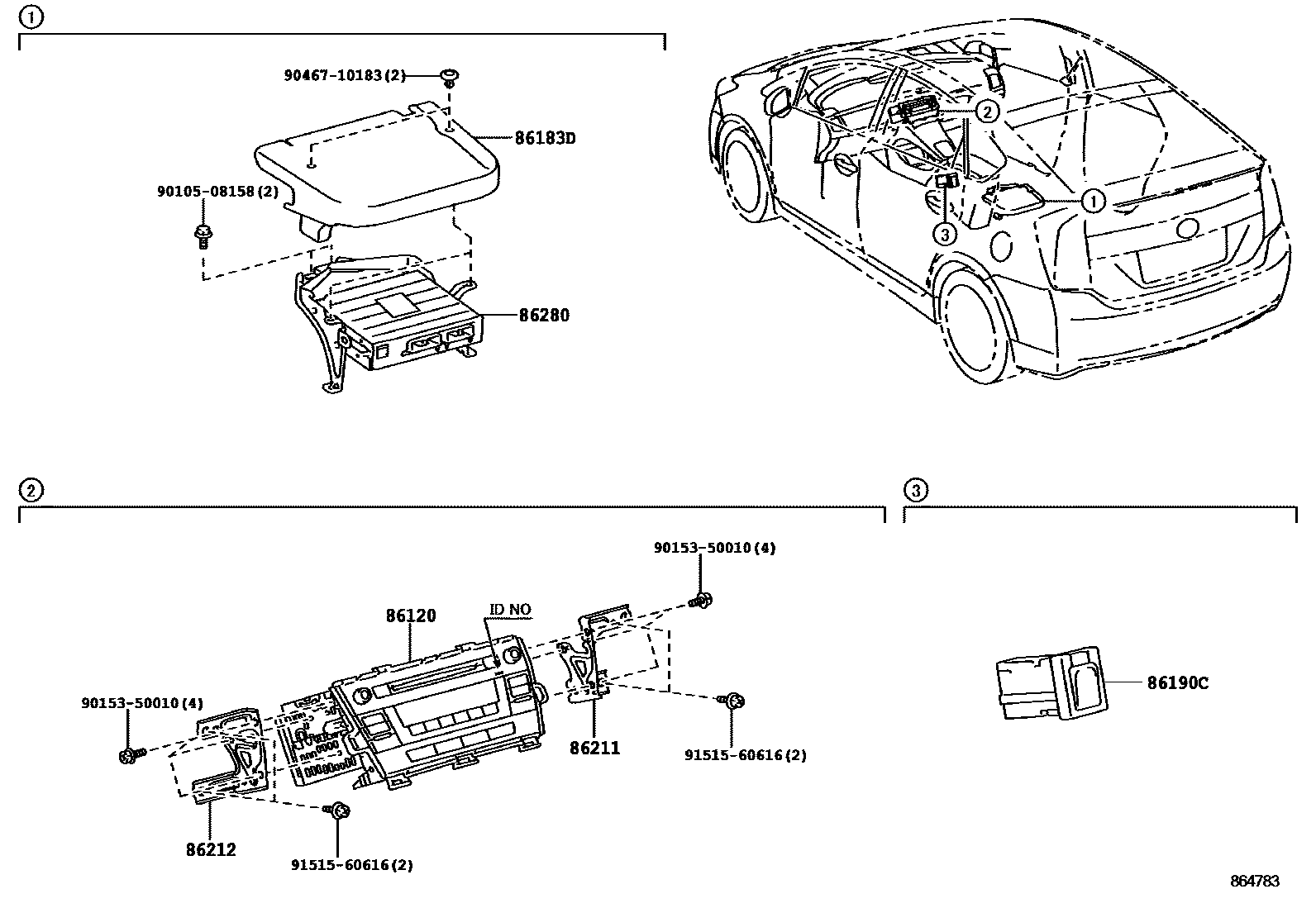

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1������

86120RECEIVER ASSY, RADIO

main86120-47530iZVW35201201-201506

main86120-47530iZVW35201201-201506

main86120-47530iZVW35201201-201506

main86120-47530iZVW35201201-201506

main86120-47530iZVW35201201-201506

86183DCOVER, AUDIO AMPLIFIER

main86183-47110iZVW35..G201201

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-24010iZVW35..G,S201201-201507

main86190-47020iZVW35..G,S201201

main86190-47020iZVW35..G201201

86211BRACKET, RADIO, NO.1

main86211-47050iZVW35..L201201-201506

main86211-47050iZVW35..G,S201201-201507

main86211-47050iZVW35201507

main86211-47100iZVW35..G201507

main86211-47100iZVW35201201-201507

main86211-47100iZVW35201507

86212BRACKET, RADIO, NO.2

main86212-47050iZVW35..G,S201201-201507

main86212-47050iZVW35..L201201-201506

main86212-47050iZVW35201507

main86212-47100iZVW35201507

main86212-47100iZVW35..G201507

main86212-47100iZVW35201201-201507

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0WA51iZVW35..G201201-201310

main86280-47080iZVW35..G201311

sub86280-47081

9010508158

main90105-08158

9015350010

main90153-50010

9046710183

main90467-10183

9151560616

main91515-60616

10 parts on this diagram · 2 diagrams in section
