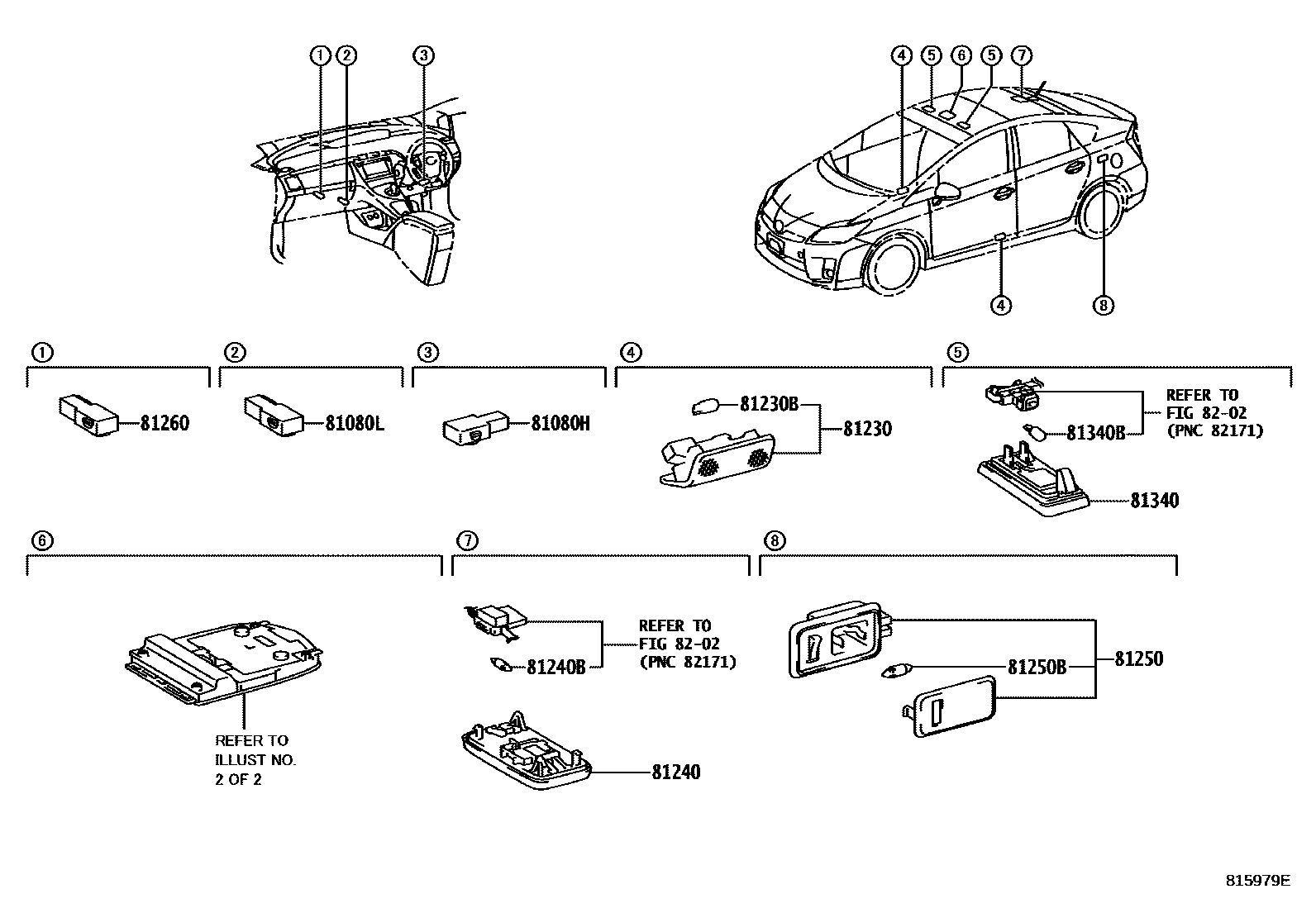

INTERIOR LAMP

0001 1 0002 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48010iZVW35..G201201

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48010iZVW35..G201201

81230LAMP ASSY, COURTESY

main81230-30200iZVW35201306

main81230-47010iZVW35201201-201305

sub81230-30200

81230BBULB(FOR COURTESY LAMP)

main90981-12010iZVW35201201

81240LAMP ASSY, ROOM, NO.1

main81240-60060-B0iZVW35201201-201604

LT.GRAY,TRIM2#,6#

sub81240-12100

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZVW35201201

81250LAMP ASSY, ROOM, NO.2

main81250-48010iZVW35201201-201504

main81330-58010iZVW35201505

81250BBULB, ROOM LAMP, NO.2

main99132-12050iZVW35201505

main99132-13050iZVW35201201-201505

81260LAMP ASSY, GLOVE BOX

main81080-48010iZVW35201201

81340LAMP ASSY, VANITY

main81340-30110iZVW35201201

81340BBULB (FOR VANITY LAMP)

main90981-11062iZVW35201201

8202

12 parts on this diagram · 2 diagrams in section
