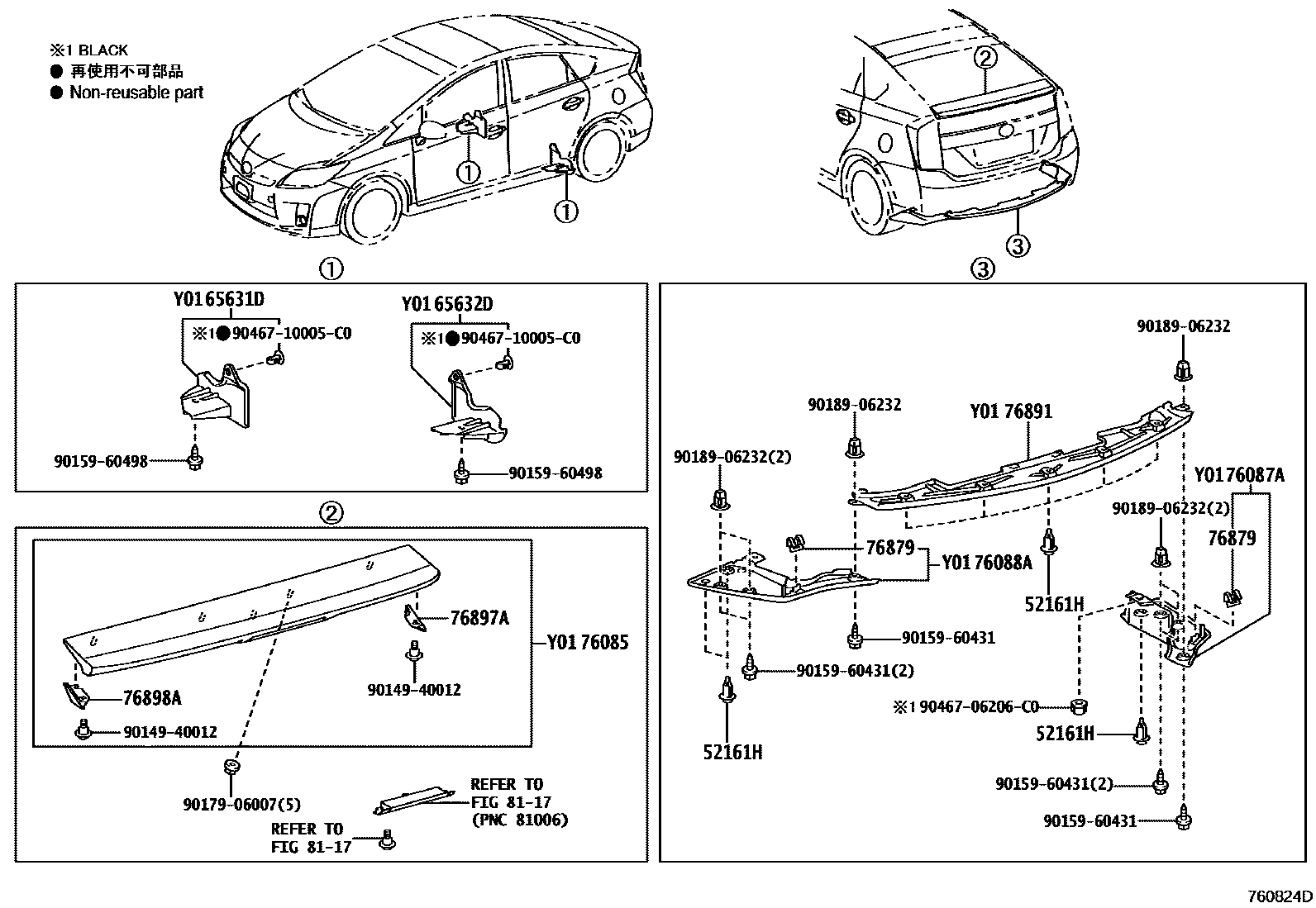

MUDGUARD & SPOILER

52161HPIECE, REAR BUMPER

main52161-16010iZVW35201201

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-47041iZVW35201201

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-47041iZVW35201201

76085SPOILER SUB-ASSY, REAR

main76085-47910iZVW35201201-201604

76087ASPOILER SUB-ASSY, REAR SIDE

main76087-47020iZVW35201201

76088ASPOILER SUB-ASSY, REAR SIDE

main76088-47020iZVW35201201

76879CLIP, REAR SPOILER, NO.1

main76879-44010iZVW35201201

76891SPOILER, REAR NO.1

main76891-47020iZVW35201201

76897ASPOILER,REAR SIDE RH

main76897-47020iZVW35201201

76898ASPOILER,REAR SIDE LH

main76898-47020iZVW35201201

8117

9014940012

main90149-40012

9015960431

main90159-60431

9015960498

main90159-60498

9017906007

main90179-06007

9018906232

main90189-06232

9046706206C0

main90467-06206C0

9046710005C0

main90467-10005C0

18 parts on this diagram · 1 diagram in section
