MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58442FCOVER, JACK
BLACK,TRIM2#,6#
58510DCARPET ASSY, FLOOR, FRONT
DK.GRAY,TRIM2#,6#
58520CCLIP(FOR FRONT FLOOR CARPET)
58560BCLIP(FOR FLOOR CARPET, REAR)
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#,6#
58621JSILENCER, CENTER CONSOLE, NO.1
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
58708BCARRIER, SUB-ASSY, JACK(FOR REAR FLOOR)
58766COVER, JACK BOX HOLE
BLACK,TRIM2#,6#
58797BBAND, JACK CLAMP
9046710208
main90467-10208
9046711122
main90467-11122
9046713071
main90467-13071

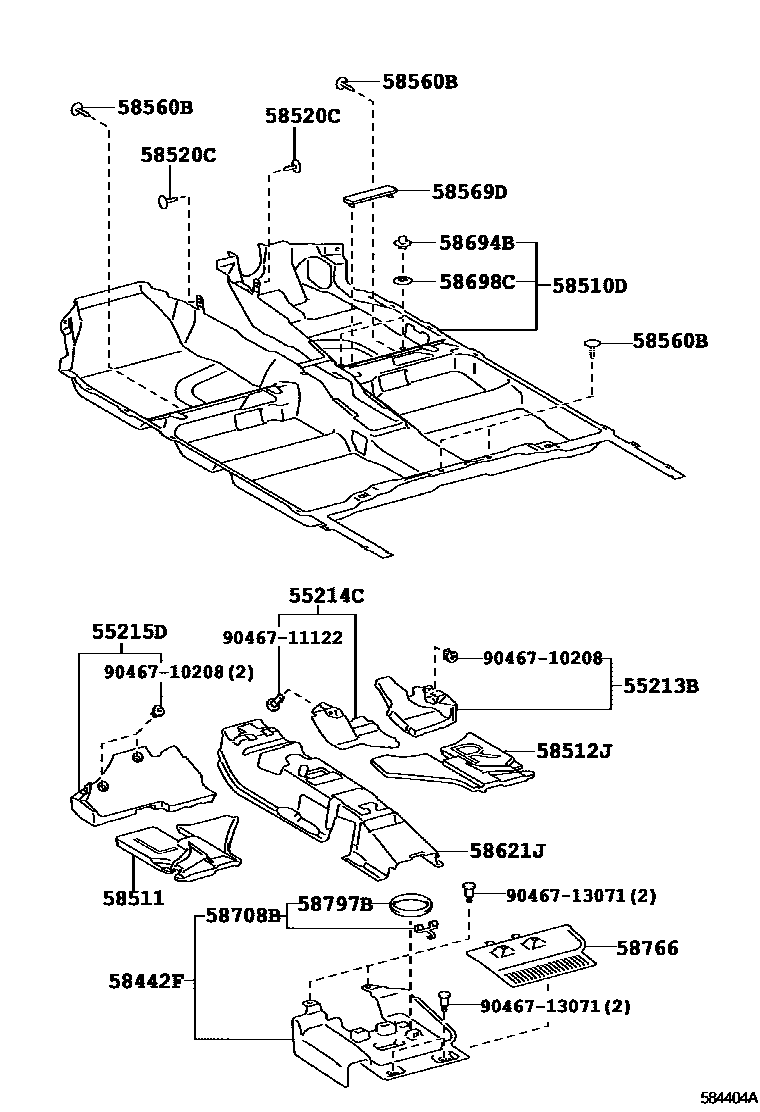

19 parts on this diagram · 1 diagram in section
