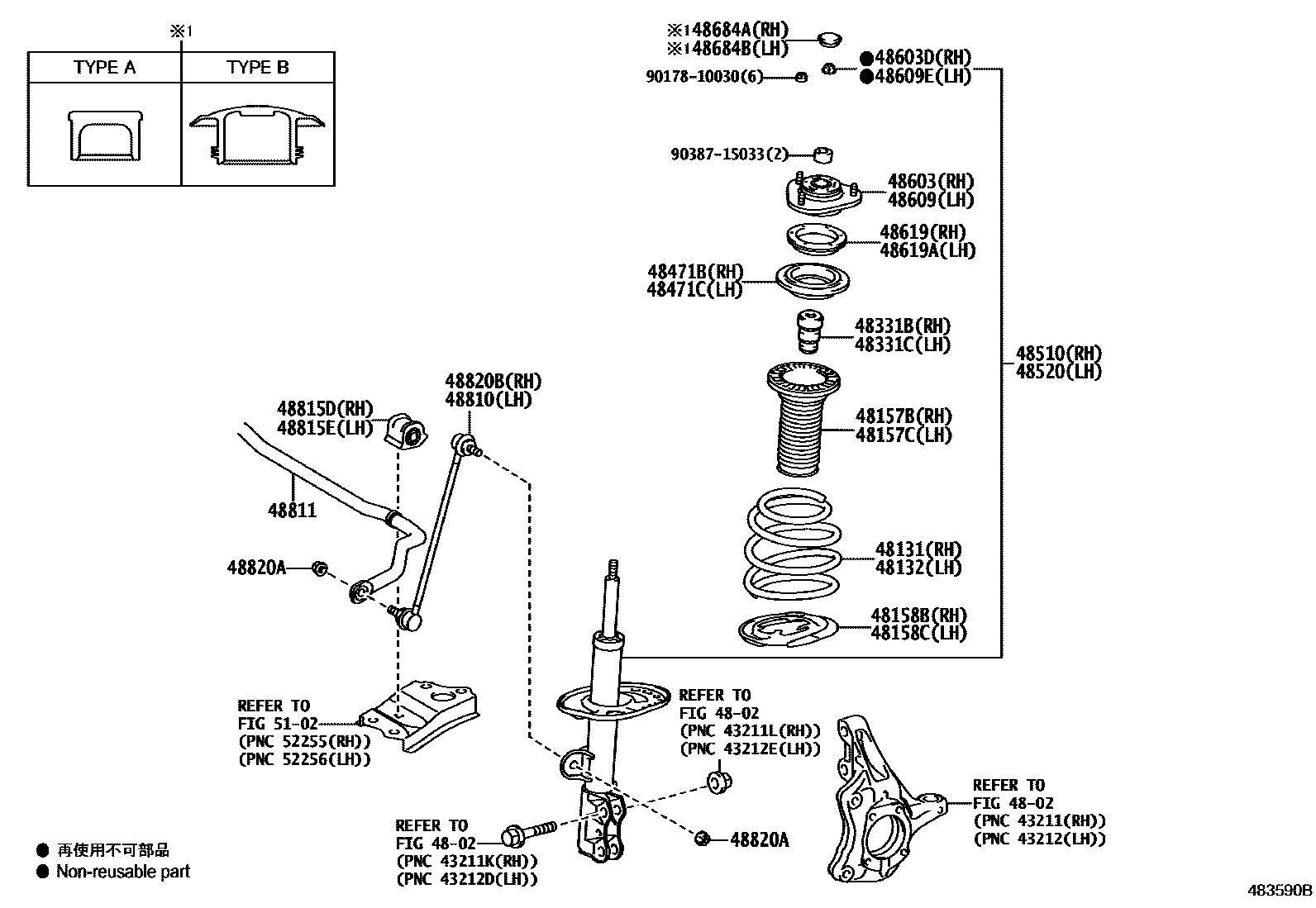

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-47130iZVW35201201

48132SPRING, FRONT COIL, LH

main48131-47130iZVW35201201

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-47020iZVW35201201

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-47020iZVW35201201

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12040iZVW35201201

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12040iZVW35201201

48331BBUMPER, FRONT SPRING, RH

main48331-21030iZVW35201201

48331CBUMPER, FRONT SPRING, LH

main48331-21030iZVW35201201

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-42010iZVW35201201

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-42010iZVW35201201

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80575iZVW35201201-201309

main48510-80669iZVW35201309

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80295iZVW35201201-201309

main48520-80370iZVW35201309

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-47040iZVW35201201

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14005iZVW35201201

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-47040iZVW35201201

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14005iZVW35201201

48619BEARING, STRUT MOUNTING, RH

main48619-28010iZVW35201201

48619ABEARING, STRUT MOUNTING, LH

main48619-28010iZVW35201201

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42010iZVW35201201

main48684-42020iZVW35201201

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42010iZVW35201201

main48684-42020iZVW35201201

48810LINK ASSY, FRONT STABILIZER, LH

main48820-47020iZVW35201201

48811BAR, STABILIZER, FRONT

main48811-47060iZVW35201201

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-47030iZVW35201201

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-47020iZVW35201201

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151×4iZVW35201201

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-47020iZVW35201201

5102

9017810030

main90178-10030

9038715033

main90387-15033

30 parts on this diagram · 1 diagram in section
