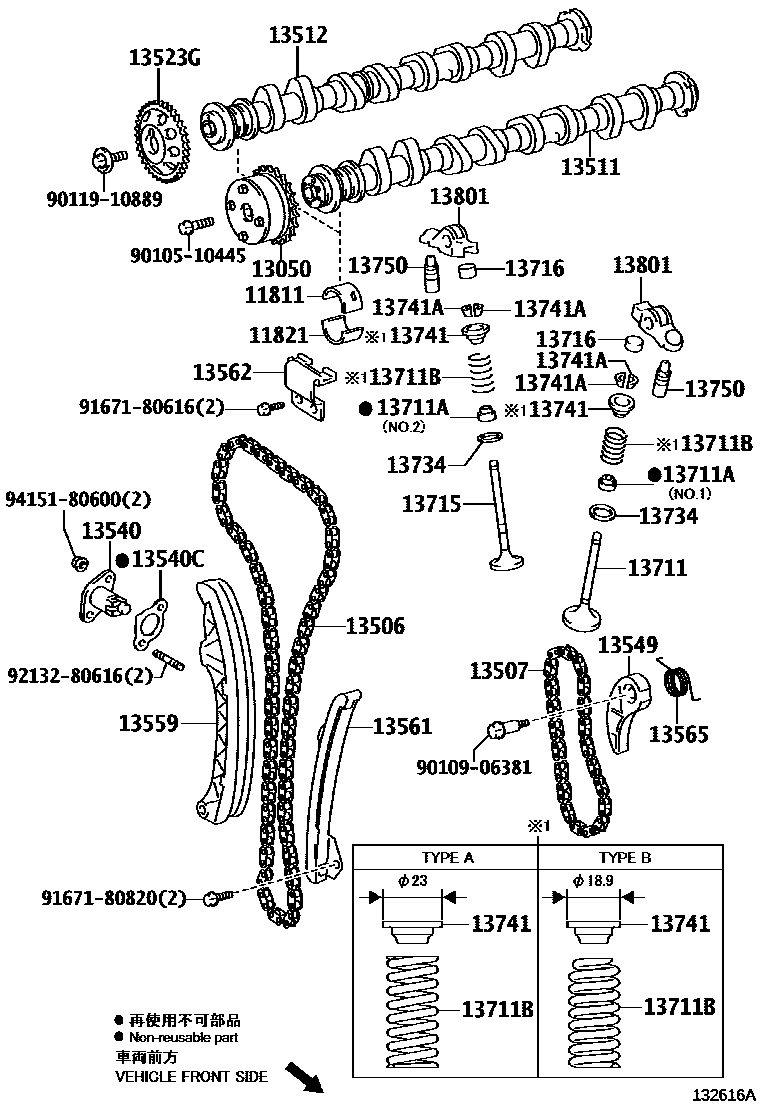

CAMSHAFT & VALVE

11811BEARING, CAMSHAFT, NO.1

main11811-37010i2ZRFXE..ZVW35201201

11821BEARING, CAMSHAFT, NO.2

main11821-37010i2ZRFXE..ZVW35201201

13050GEAR ASSY, CAMSHAFT TIMING

main13050-37012i2ZRFXE..ZVW35201201-201306

sub13050-0T090

sub13050-37040

sub13050-37060

main13050-37040i2ZRFXE..ZVW35201302

13506CHAIN SUB-ASSY

main13506-37010i2ZRFXE..ZVW35201201-201311

sub13506-37070

main13506-37070i2ZRFXE..ZVW35201311

13507CHAIN SUB-ASSY, NO.2

main13507-28010i2ZRFXE..ZVW35201201

13511CAMSHAFT

main13501-37030i2ZRFXE..ZVW35201201

13512CAMSHAFT, NO.2

main13502-37040i2ZRFXE..ZVW35201201-201504

sub13502-37080

sub13801-36020

main13502-37080i2ZRFXE..ZVW35201504

13523GSPROCKET, CAMSHAFT TIMING

main13523-22020i2ZRFXE..ZVW35201201

13540TENSIONER ASSY, CHAIN, NO.1

main13540-37030i2ZRFXE..ZVW35201201

13540CGASKET(FOR CHAIN TENSIONER)

main13552-37010i2ZRFXE..ZVW35201201

13549PLATE, CHAIN TENSIONER

main13549-37010i2ZRFXE..ZVW35201201-201503

sub13549-37020

main13549-37020i2ZRFXE..ZVW35201504

13559SLIPPER, CHAIN TENSIONER

main13559-37010i2ZRFXE..ZVW35201201-201501

sub13559-37050

main13559-37050i2ZRFXE..ZVW35201502

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-37020i2ZRFXE..ZVW35201201-201503

sub13561-37050

main13561-37050i2ZRFXE..ZVW35201504

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-37010i2ZRFXE..ZVW35201201-201503

sub13562-37020

main13562-37020i2ZRFXE..ZVW35201504

13565SPRING, CHAIN DAMPER

main13565-37010i2ZRFXE..ZVW35201201

13711VALVE, INTAKE

main13711-37020i2ZRFXE..ZVW35201201

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02101i2ZRFXE..ZVW35201201

main90913-02112i2ZRFXE..ZVW35201201

13711BSPRING, COMPRESSION(FOR INNER)

main90501-31027i2ZRFXE..ZVW35201201-201405

main90501-31028i2ZRFXE..ZVW35201405-201408

main90501-32071i2ZRFXE..ZVW35201405-201408

sub90501-32072

main90501-32072i2ZRFXE..ZVW35201408

13715VALVE, EXHAUST

main13715-37030i2ZRFXE..ZVW35201201

13716CAP, VALVE STEM

main13716-75020i2ZRFXE..ZVW35201201

13734SEAT, VALVE SPRING

main13734-62020i2ZRFXE..ZVW35201201

13741RETAINER, VALVE SPRING

main13741-20021i2ZRFXE..ZVW35201201-201405

main13741-20021i2ZRFXE..ZVW35201405-201408

main13741-36010i2ZRFXE..ZVW35201405-201408

main13741-36010i2ZRFXE..ZVW35201408

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i2ZRFXE..ZVW35201201

13750ADJUSTER ASSY, VALVE LASH

main13750-21010i2ZRFXE..ZVW35201408

main13750-75020i2ZRFXE..ZVW35201201-201408

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-23011i2ZRFXE..ZVW35201201-201404

main13801-36020i2ZRFXE..ZVW35201405

9010510445

main90105-10445

9010906381

main90109-06381

9011910889

main90119-10889

9167180616

main91671-80616

9167180820

main91671-80820

9213280616

main92132-80616

9415180600

main94151-80600

32 parts on this diagram · 1 diagram in section
