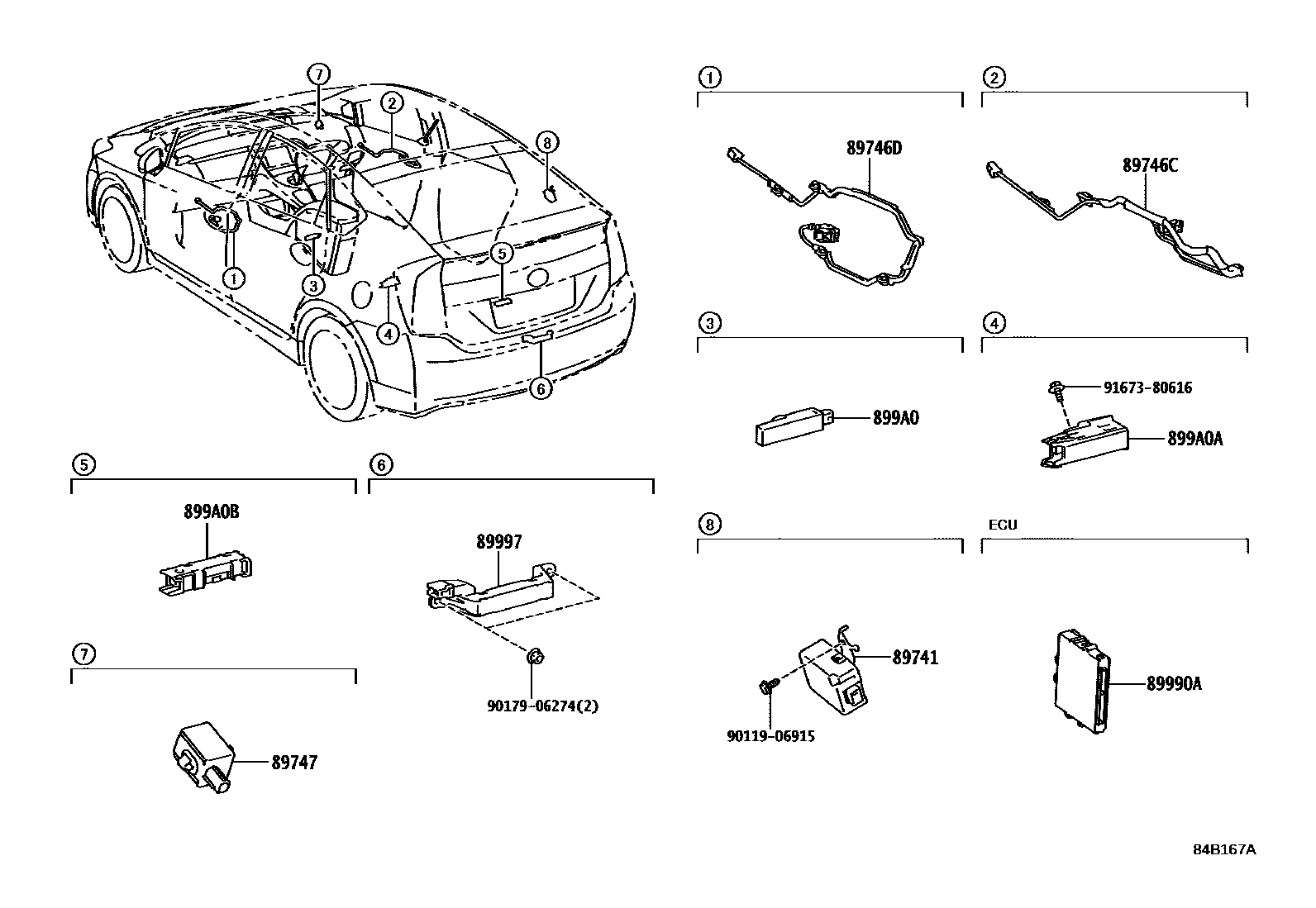

WIRELESS DOOR LOCK
89741RECEIVER, DOOR CONTROL
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
89747BUZZER, WIRELESS DOOR LOCK
89990ACOMPUTER ASSY, SMART KEY
89997ANTENNA, ELECTRICAL KEY
899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
9011906915
main90119-06915
9017906274
main90179-06274
9167380616
main91673-80616
12 parts on this diagram · 1 diagram in section
