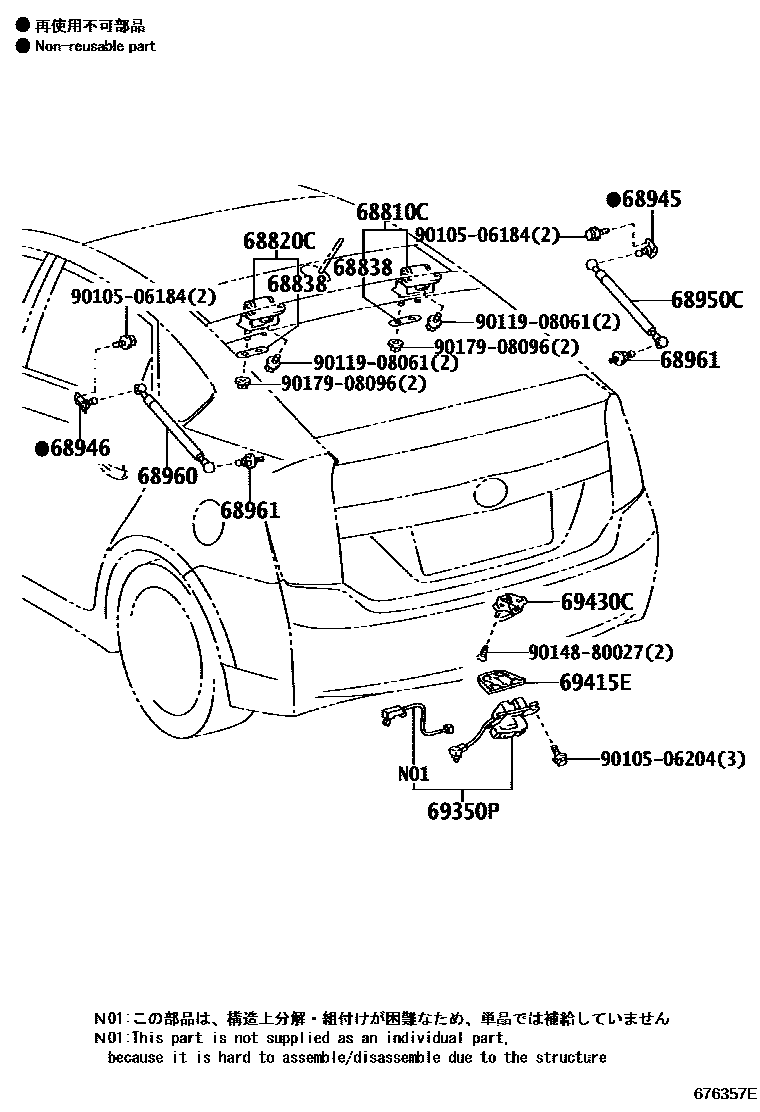

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
sub68810-47011
68820CHINGE ASSY, BACK DOOR, LH
sub68810-47011
68838PAD, BACK DOOR HINGE, NO.1
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
sub69350-47040
69415ECOVER, BACK DOOR LOCK STRIKER
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506184
main90105-06184
9010506204
main90105-06204
9011908061
main90119-08061
9014880027
main90148-80027
9017908096
main90179-08096
16 parts on this diagram · 1 diagram in section
