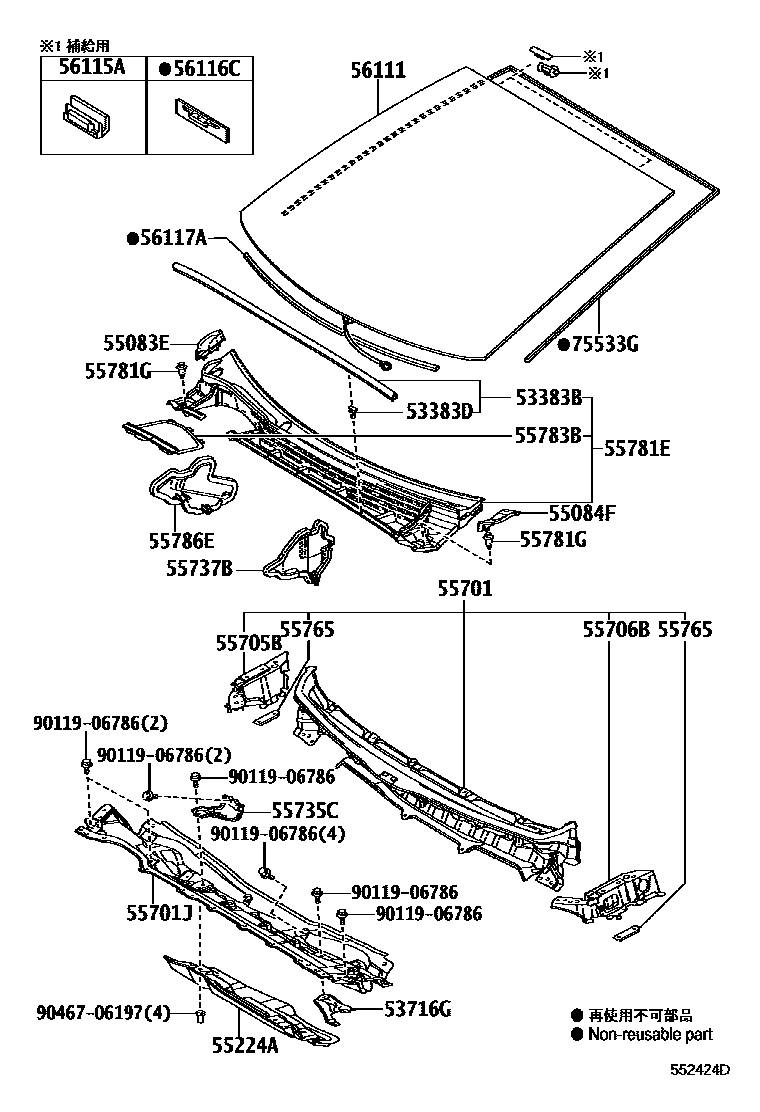

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-47090iZVW35201005

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iZVW35200912

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-47020iZVW35200912

55083EVENTILATOR SUB-ASSY, COWL SIDE, RH

main55083-47011iZVW35200912

55084FVENTILATOR SUB-ASSY, COWL SIDE, LH

main55084-47011iZVW35200912

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-47020iZVW35200912

55701PANEL SUB-ASSY, COWL

main55700-47160iZVW35200912

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-47020iZVW35200912

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-47020iZVW35200912

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-47020iZVW35200912

55735CREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-47010iZVW35200912

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55738-47010iZVW35200912

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010iZVW35200912

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-47100iZVW35200912-201004

sub55708-47101

main55708-47101iZVW35201005

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iZVW35200912

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-47070iZVW35200912-201004

sub55783-47071

main55783-47071iZVW35201005-201010

55786EPLATE, COWL TOP VENTILATOR LOUVER

main55734-47020iZVW35200912

56111GLASS, WINDSHIELD

main56101-47913iZVW35200912

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iZVW35200912

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iZVW35200912

56117ADAM, WINDOW GLASS ADHESIVE

main56117-47030iZVW35200912

sub56117-50140

main56117-47030iZVW35200912

sub56117-50140

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-47050iZVW35200912

9011906786

main90119-06786

9046706197

main90467-06197

24 parts on this diagram · 1 diagram in section
