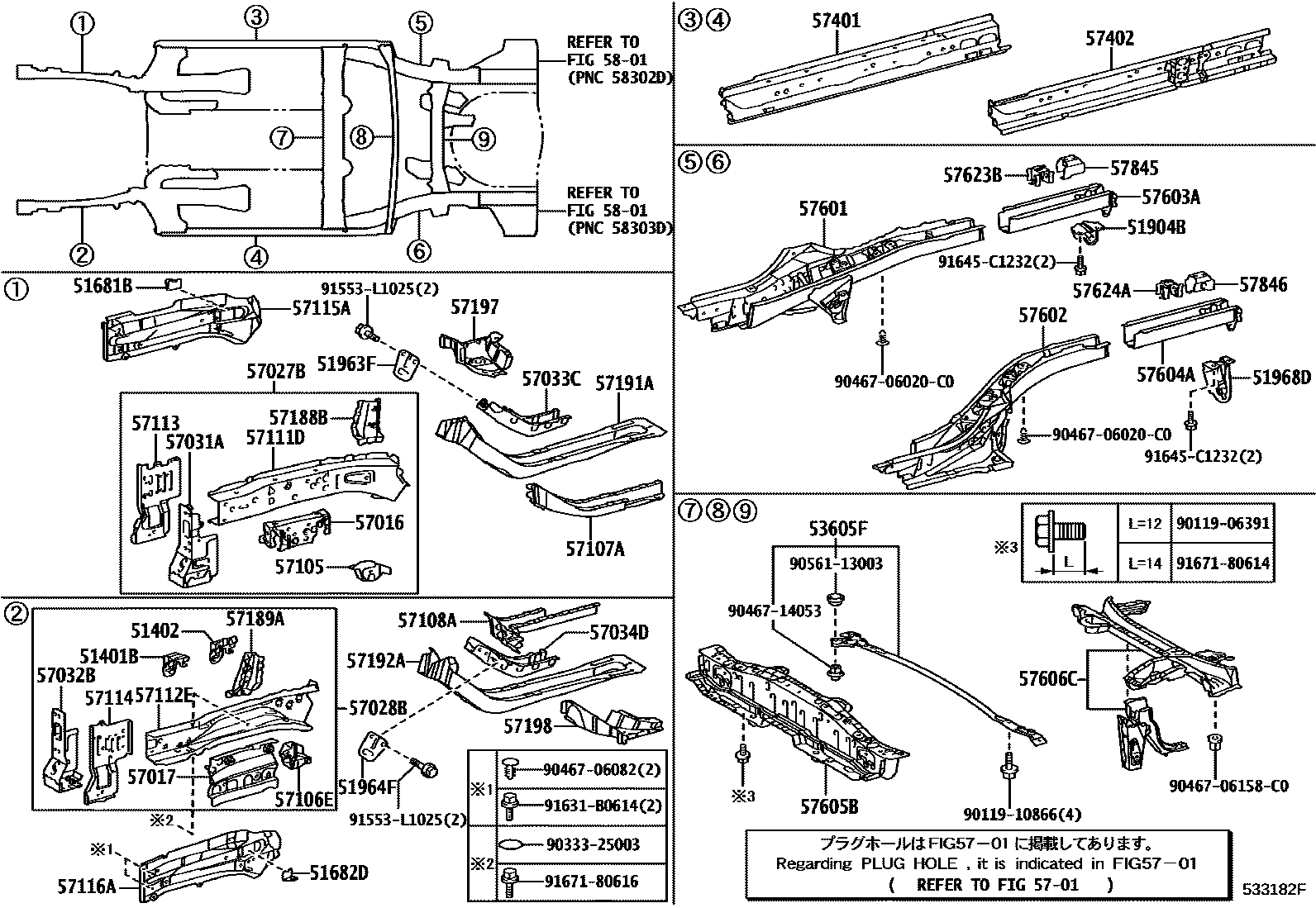

FLOOR SIDE MEMBER

51401BBRACKET SUB-ASSY, ENGINE FRONT MOUNTING

main51401-12020iZVW35200912

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-12020iZVW35200912

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-12080iZVW35200912

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-12080iZVW35200912

51904BHANGER SUB-ASSY, EXHAUST PIPE, NO.4

main51904-47010iZVW35200912-201010

51963FHOOK, TRANSPORT

main51963-12250iZVW35200912-201010

51964FHOOK, TRANSPORT, LH

main51964-12040iZVW35200912

51968DHOOK, TRANSPORT, REAR LH

main51968-12180iZVW35200912

53605FBRACE SUB-ASSY, REAR SUSPENSION

main53605-47020iZVW35200912

sub53605-47021

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-12110iZVW35200912

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-12070iZVW35200912

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-12010iZVW35200912

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-12020iZVW35200912

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-12010iZVW35200912

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-12010iZVW35200912

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-12010iZVW35200912

57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH

main57034-12010iZVW35200912

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-12160iZVW35200912

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-12150iZVW35200912

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-12120iZVW35200912

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-12140iZVW35200912

57111DMEMBER, FRONT SIDE, INNER RH

main57111-12230iZVW35200912

57112EMEMBER, FRONT SIDE, INNER LH

main57112-12190iZVW35200912

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-12220iZVW35200912

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-12190iZVW35200912

sub57114-12191

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12090iZVW35200912

sub57025-12010

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12090iZVW35200912

sub57116-12091

57188BGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, RH

main57188-12030iZVW35200912

57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH

main57189-12010iZVW35200912

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-12070iZVW35200912

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-12060iZVW35200912

57197BOX, TORQUE, FRONT RH

main57197-12040iZVW35200912

57198BOX, TORQUE, FRONT LH

main57198-12040iZVW35200912

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-47050iZVW35200912

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-47070iZVW35200912

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12A00iZVW35200912

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12A00iZVW35200912

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-47030iZVW35200912

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-47030iZVW35200912

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12321iZVW35200912

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-47050iZVW35200912

57623BPLATE. REAR FLOOR SIDE MEMBER, REAR RH

main57727-47010iZVW35200912

57624APLATE. REAR FLOOR SIDE MEMBER, REAR LH

main57728-47010iZVW35200912

57845REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH

main57845-12010iZVW35200912

57846REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH

main57846-12010iZVW35200912

5801

9011906391

main90119-06391

9011910866

main90119-10866

9033325003

main90333-25003

9046706020C0

main90467-06020C0

9046706082

main90467-06082

9046706158C0

main90467-06158C0

9046714053

main90467-14053

9056113003

main90561-13003

91553L1025

main91553-L1025

91631B0614

main91631-B0614

91645C1232

main91645-C1232

9167180614

main91671-80614

9167180616

main91671-80616

60 parts on this diagram · 1 diagram in section
