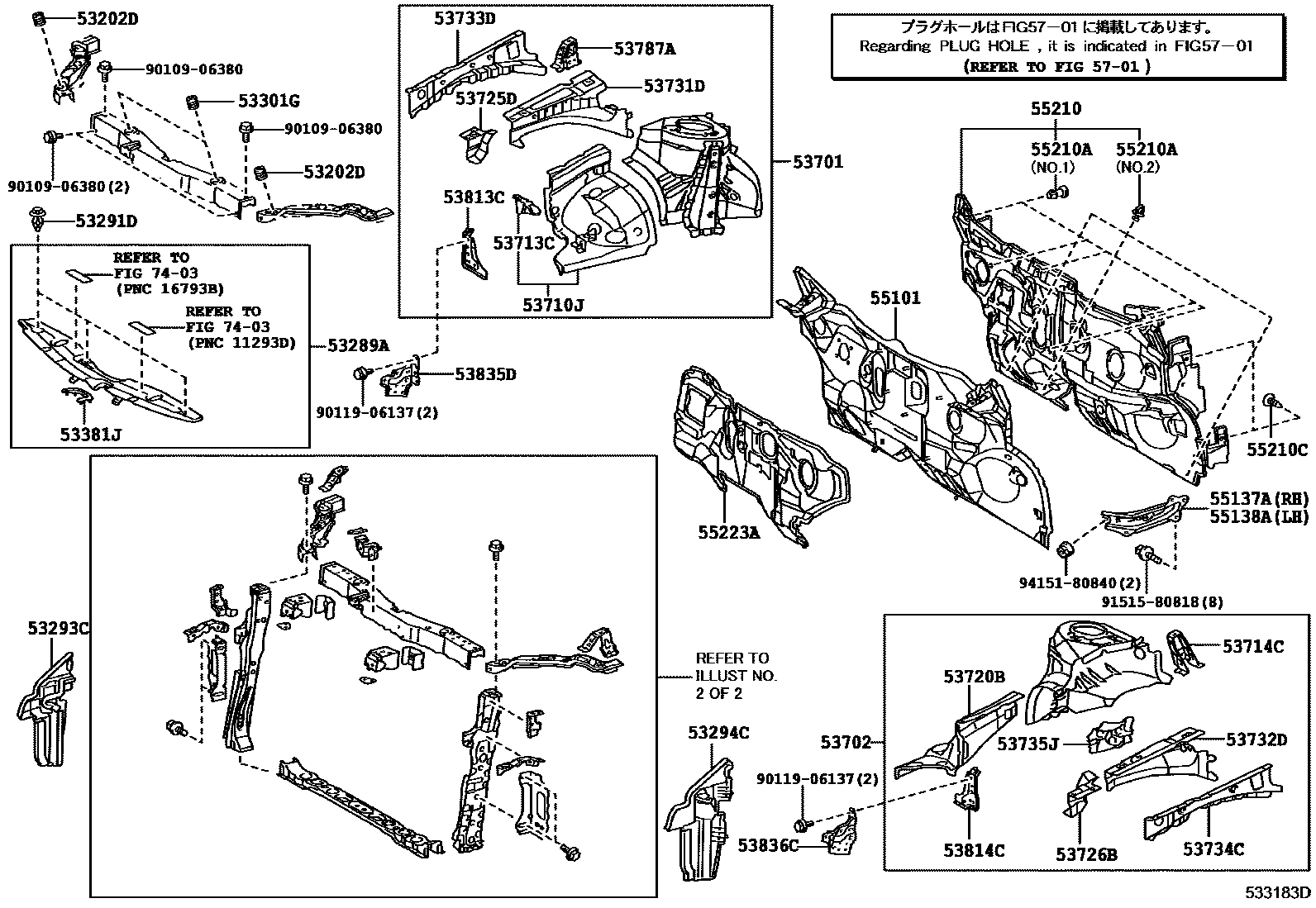

FRONT FENDER APRON & DASH PANEL
53202SUPPORT SUB-ASSY, RADIATOR, RH
53202DCUSHION, RADIATOR SUPPORT
53289ACOVER, RADIATOR SUPPORT OPENING
sub53289-47031
53291DCLIP, RADIATOR SUPPORT TO FRAME
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53301GCUSHION, HOOD BUMPER
53381JSEAL, HOOD TO RADIATOR SUPPORT
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53710JAPRON ASSY, FRONT FENDER, RH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53720BAPRON ASSY, FRONT FENDER, LH
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53735JPATCH, FRONT FENDER APRON, NO.5
53787AGUSSET, FRONT FENDER APRON, LOWER RH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53835DBRACKET, FRONT SIDE PANEL, RH
sub53803-47020
53836CBRACKET, FRONT SIDE PANEL, LH
sub53804-47020
55101PANEL SUB-ASSY, DASH
55137ABRACE, DASH TO FRAME, RH
55138ABRACE, DASH TO FRAME, LH
sub55138-47060
55210INSULATOR ASSY, DASH PANEL
55210CCLIP
55223AINSULATOR, DASH PANEL, OUTER
5701
7403
9010906380
main90109-06380
9011906137
main90119-06137
9151580818
main91515-80818
9415180840
main94151-80840
39 parts on this diagram · 2 diagrams in section
