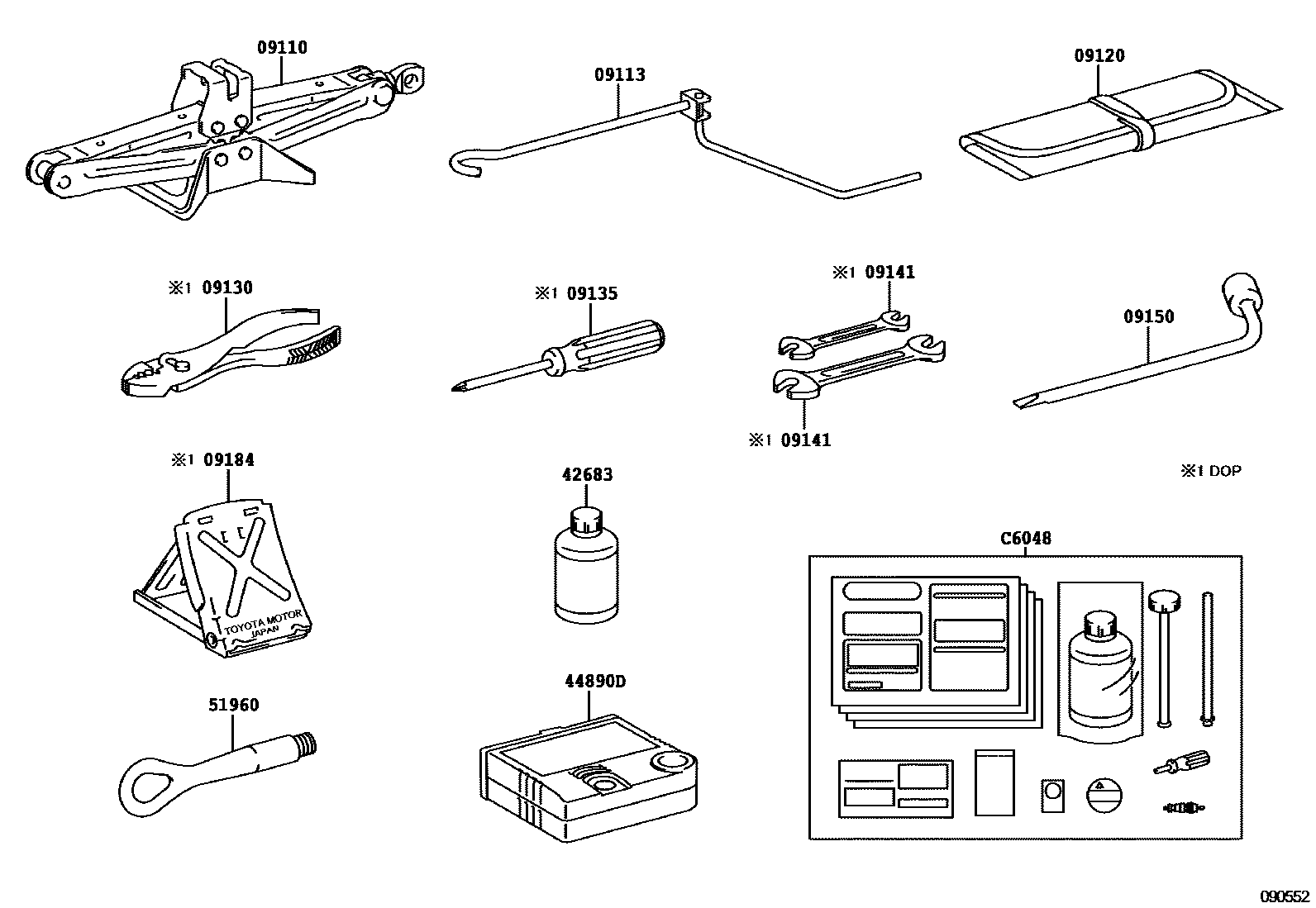

STANDARD TOOL

09110JACK ASSY

main09111-50051iZVW35200912-201009

sub09111-76011

09113HANDLE, JACK

main09113-44010iZVW35200912

09120BAG, TOOL

main09120-16030iZVW35200912

09130PLIERS

main99913-11500iZVW35200912

09135DRIVER, SCREW

main99915-10700iZVW35200912

09141SPANNER

main99914-10810iZVW35200912

main99914-11214iZVW35200912

09150WRENCH, HUB NUT BOX

main09150-35070iZVW35200912

09184STOPPER, WHEEL

main09184-00010iZVW35200912

42683SEAL, TIRE REPAIR

main42683-52010iZVW35200912

sub42683-52011

44890DCOMPRESSOR ASSY, AIR

main44890-52010iZVW35200912

sub44890-42010

51960HOOK ASSY, FRONT

main51961-50040iZVW35200912

sub51961-50042

C6048REPAIR SET, TIRE

mainC604847010iZVW35200912

subC6048-47011

12 parts on this diagram · 1 diagram in section
