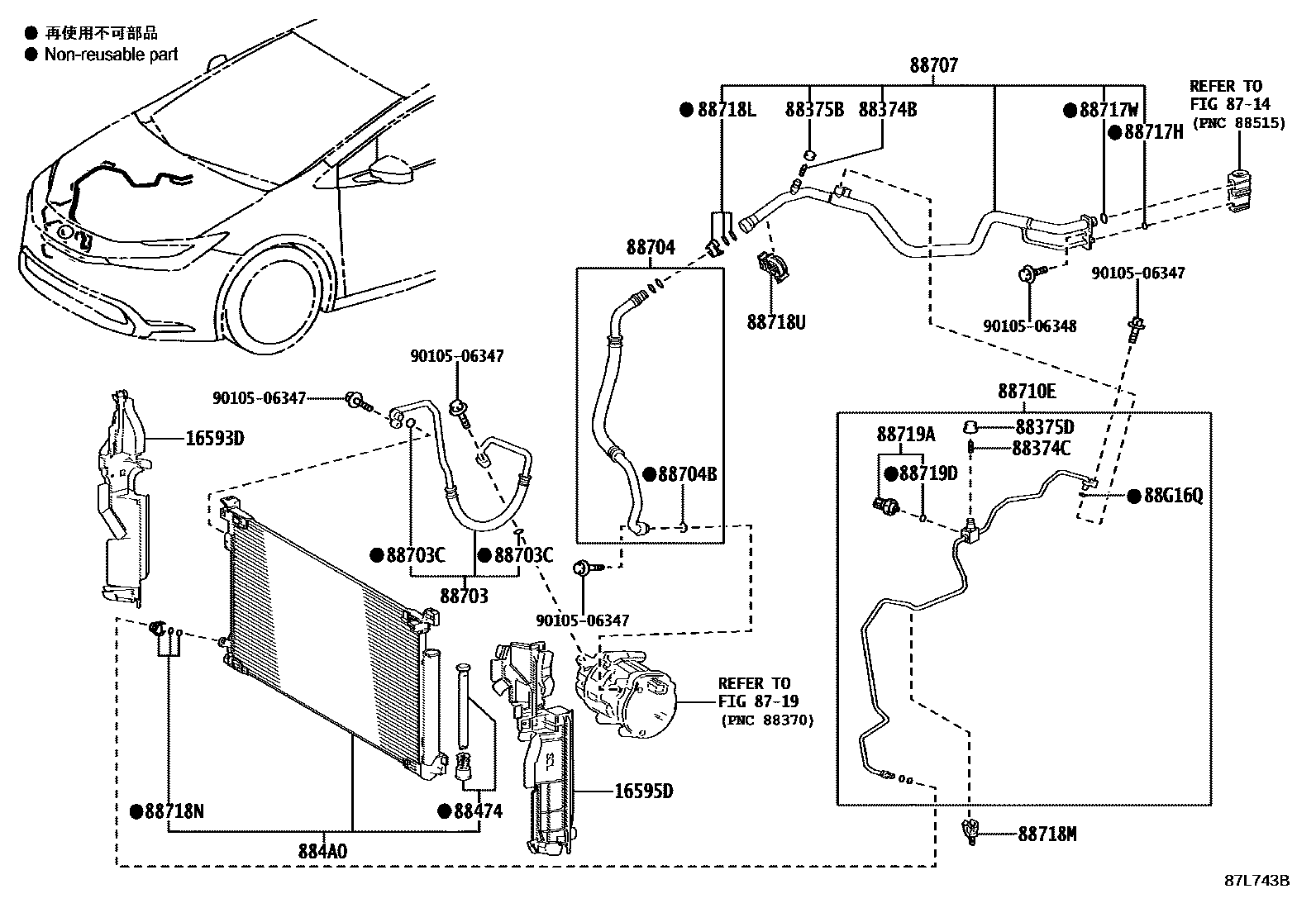

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

16593DGUIDE, RADIATOR AIR, NO.1 RH

main16593-37260supersedes 16593-37280i2ZRFXE..ZVW65..X;M20AFXS,2ZRFXE..MXWH60,65,ZVW60202212-202507

main16593-24110supersedes 16593-24120iM20AFXS..MXWH61202303-202507

16595DGUIDE, RADIATOR AIR, NO.1 LH

main16595-37240supersedes 16595-37260i2ZRFXE..ZVW65..X;M20AFXS,2ZRFXE..MXWH60,65,ZVW60202212-202507

main16595-24110supersedes 16595-24120iM20AFXS..MXWH61202303-202507

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iMXWH6#,ZVW6#202212

88374CVALVE, SERVICE, NO.2

main88374-30010iMXWH6#,ZVW6#202212

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iMXWH60,65,ZVW6#202212

main88375-30320iMXWH61202303

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iMXWH61202303

main88375-30320iMXWH60,65,ZVW6#202212

88474DRYER, COOLER

main88474-12010iMXWH60,65,ZVW6#202212

884A0CONDENSER ASSY, COOLER

main884A0-12110iMXWH60,65,ZVW6#202212

main884A0-47020iMXWH61202303

88703HOSE SUB-ASSY, DISCHARGE

main88703-16340iZVW6#202212

main88703-16370iMXWH60,65202212

main88703-47140iMXWH61202303

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120×2iMXWH6#,ZVW6#202212

88704HOSE SUB-ASSY, SUCTION

main88704-16500iZVW6#202212

main88704-16520iMXWH60,65202212

main88704-47150iMXWH61202303

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iMXWH60,65,ZVW6#202212

main90099-14169×2iMXWH61202303

88707PIPE SUB-ASSY, SUCTION

main88710-47330iMXWH60,65202212

main88710-47370iZVW6#202212

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-47400iMXWH60,65202212

main88710-47440iZVW6#202212

88717HRING, O(FOR COOLER REFRIGERANT SUCTION PIPE)

main90099-14119iMXWH60,65,ZVW6#202212

88717WRING, O(FOR COOLER REFRIGERANT SUCTION PIPE) NO.2

main90099-14121iMXWH60,65,ZVW6#202212

88718LCLAMP, PIPING

main88718-52280iMXWH60,65,ZVW6#202212

88718MCLAMP, PIPING

main88718-47110iMXWH60,65,ZVW6#202212

88718NCLAMP, PIPING

main88718-1E150iMXWH60,65,ZVW6#202212

88718UCLAMP, NO.6(FOR COOLER REFRIGERANT PIPE)

main88718-47190iMXWH60,65202212

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iMXWH6#,ZVW6#202212

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

main90099-14122iMXWH60,65,ZVW6#202212

88G16QRING, O, NO.1(FOR LIQUID TUBE)

main90099-14119iMXWH6#,ZVW6#202212

9010506347

main90105-06347

9010506348

main90105-06348

27 parts on this diagram · 5 diagrams in section
