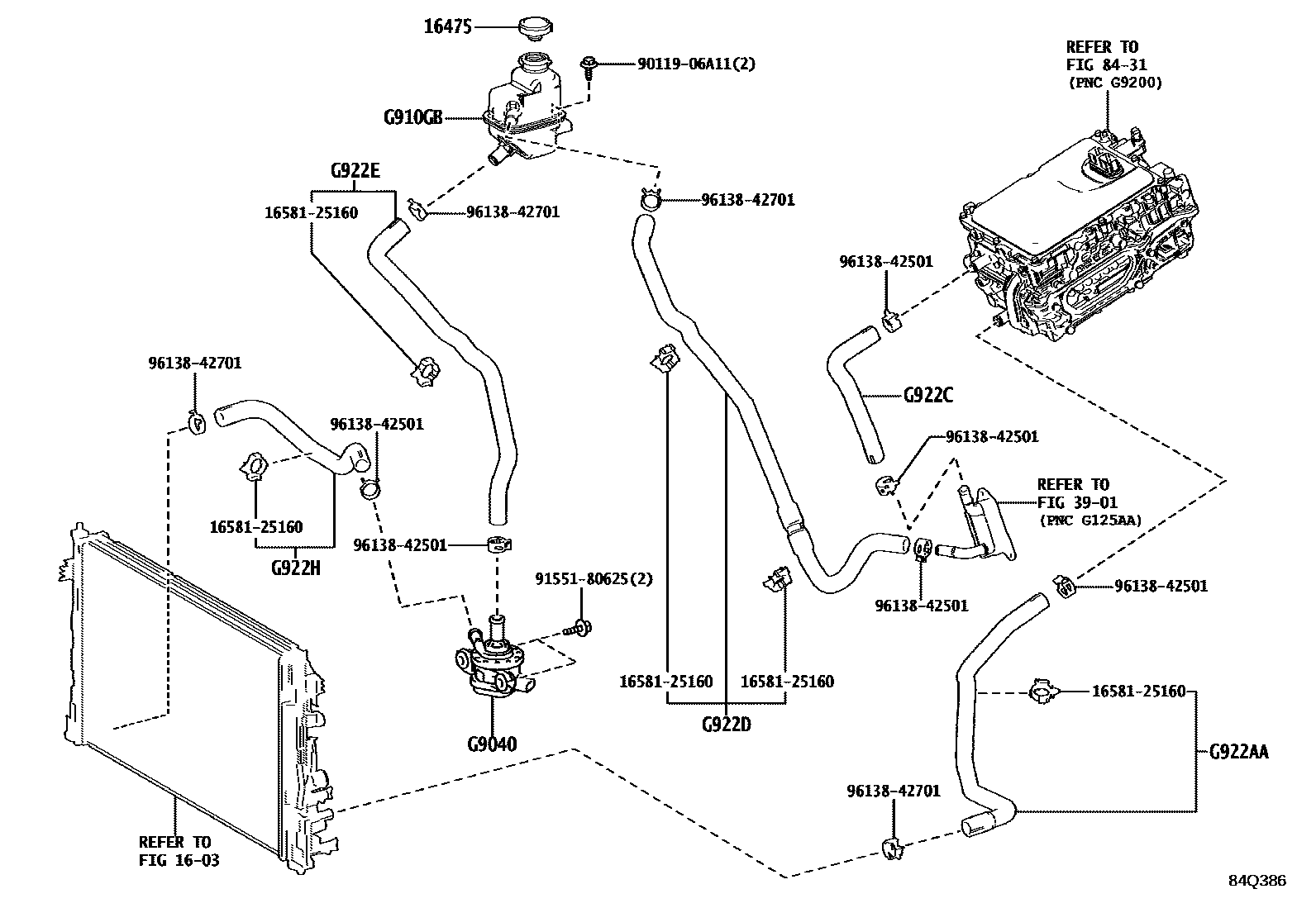

INVERTER COOLING

0001 1 0002 1 0003 1

1603

16475CAP, RESERVE TANK

main16475-28140iM20AFXS,2ZRFXE..MXWH6#,ZVW6#202212

3901

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047020iMXWH6#,ZVW6#202212

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G16010iZVW6#202212

mainG910G47010iMXWH61202303

mainG910G76030iMXWH60,65202212

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A16020iMXWH60,65,ZVW6#202212

mainG922A47030iMXWH61202303

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C16010iZVW6#202212

mainG922C16020iMXWH6#202212

G922DHOSE, INVERTER COOLING OUTLET, NO.2

mainG922D16010iZVW6#202212

mainG922D16020iMXWH60,65202212

mainG922D47010iMXWH61202303

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E16010iMXWH60,65202212

mainG922E16030iZVW6#202212

mainG922E47040iMXWH61202303

G922HHOSE, HYBRID RADIATOR INLET

mainG922H16010iMXWH60,65,ZVW6#202212

mainG922H47040iMXWH61202303

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A11

main90119-06A11

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

16 parts on this diagram · 3 diagrams in section
