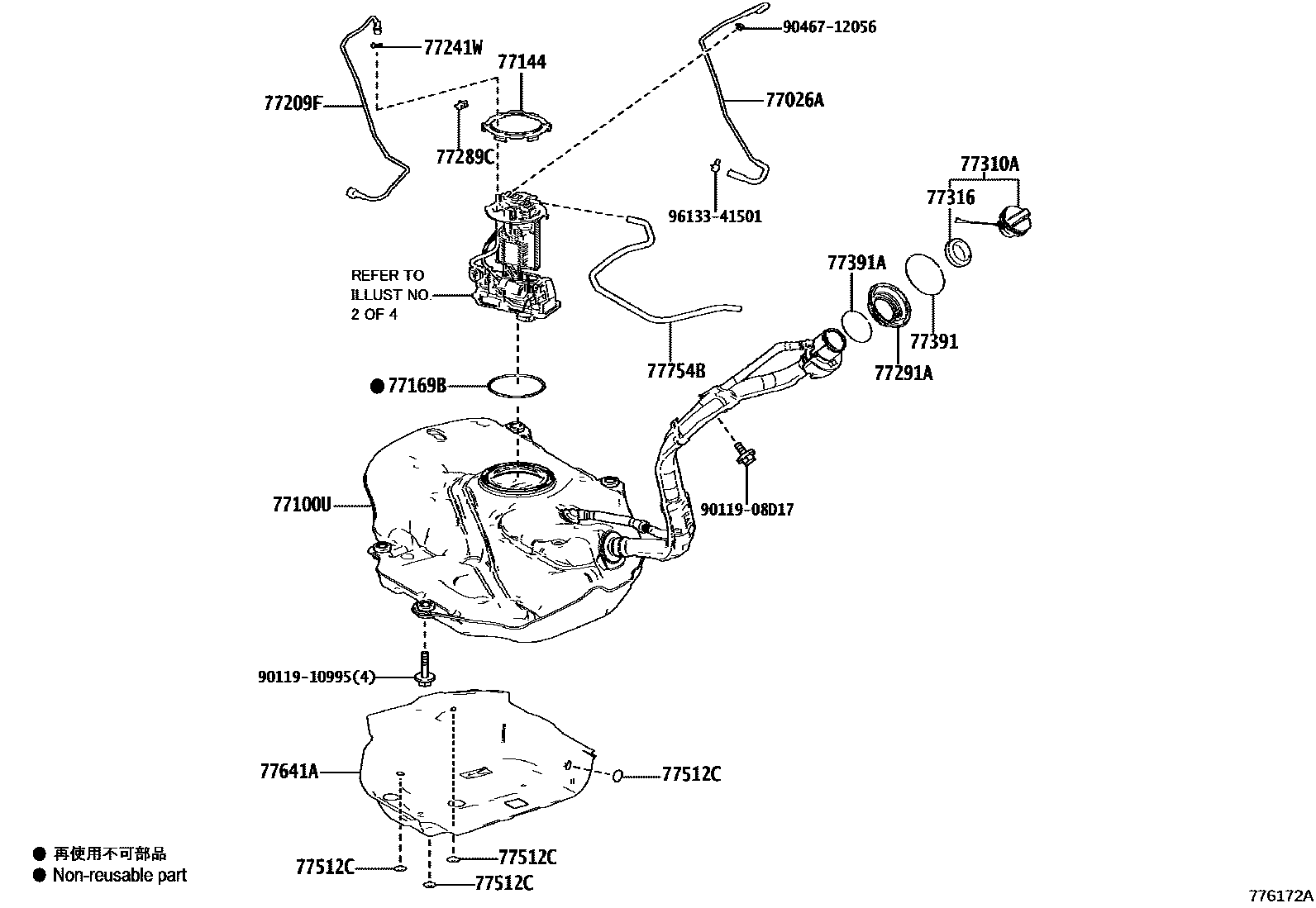

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� ����� 0004 1����� ����� 0005 1����� ����� 0006 1����� ����� 0007 1����� ����� 0008 1��������� �����

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-47040iMXWH60,65,ZVW6#202212

77100UTANK SUB-ASSY, FUEL

main77001-47300iMXWH61202303

main77001-47320iMXWH60,65,ZVW6#202212

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMXWH6#,ZVW6#202212

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47030iMXWH61202303

main77169-47040iMXWH60,65,ZVW6#202212

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-47140iMXWH61202303

main77209-76050iMXWH60,65,ZVW6#202212

77241WCLIP, TUBE JOINT

main77241-33011×2iMXWH61202303-202312

main77241-60550iMXWH60,65,ZVW6#202212

77289CCLAMP, FUEL TUBE, NO.4

main77285-30350iMXWH60,65,ZVW6#202212

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-47050iMXWH6#,ZVW6#202212

77310ACAP ASSY, FUEL TANK

main77300-12020iMXWH60,65,ZVW6#202212

main77300-33040iMXWH61202303

77316GASKET, FUEL TANK CAP

main77316-52040iMXWH60,65,ZVW6#202212

main77316-75020iMXWH61202303

77391RING, FUEL INLET BOX

main77391-47050iMXWH6#,ZVW6#202212

77391ARING, FUEL INLET BOX

main77391-12020iMXWH6#,ZVW6#202212

77512CBRACKET, FUEL TANK

main77512-35140×4iMXWH60,65,ZVW6#202212

77641APROTECTOR, FUEL TANK, NO.1

main77641-47070iMXWH60,65,ZVW6#202212

main77641-47150iMXWH61202303

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-16120iMXWH60,65,ZVW6#202312

main77754-47090iMXWH60,65,ZVW6#202212-202311

9011908D17

main90119-08D17

9011910995

main90119-10995

9046712056

main90467-12056

9613341501

main96133-41501
