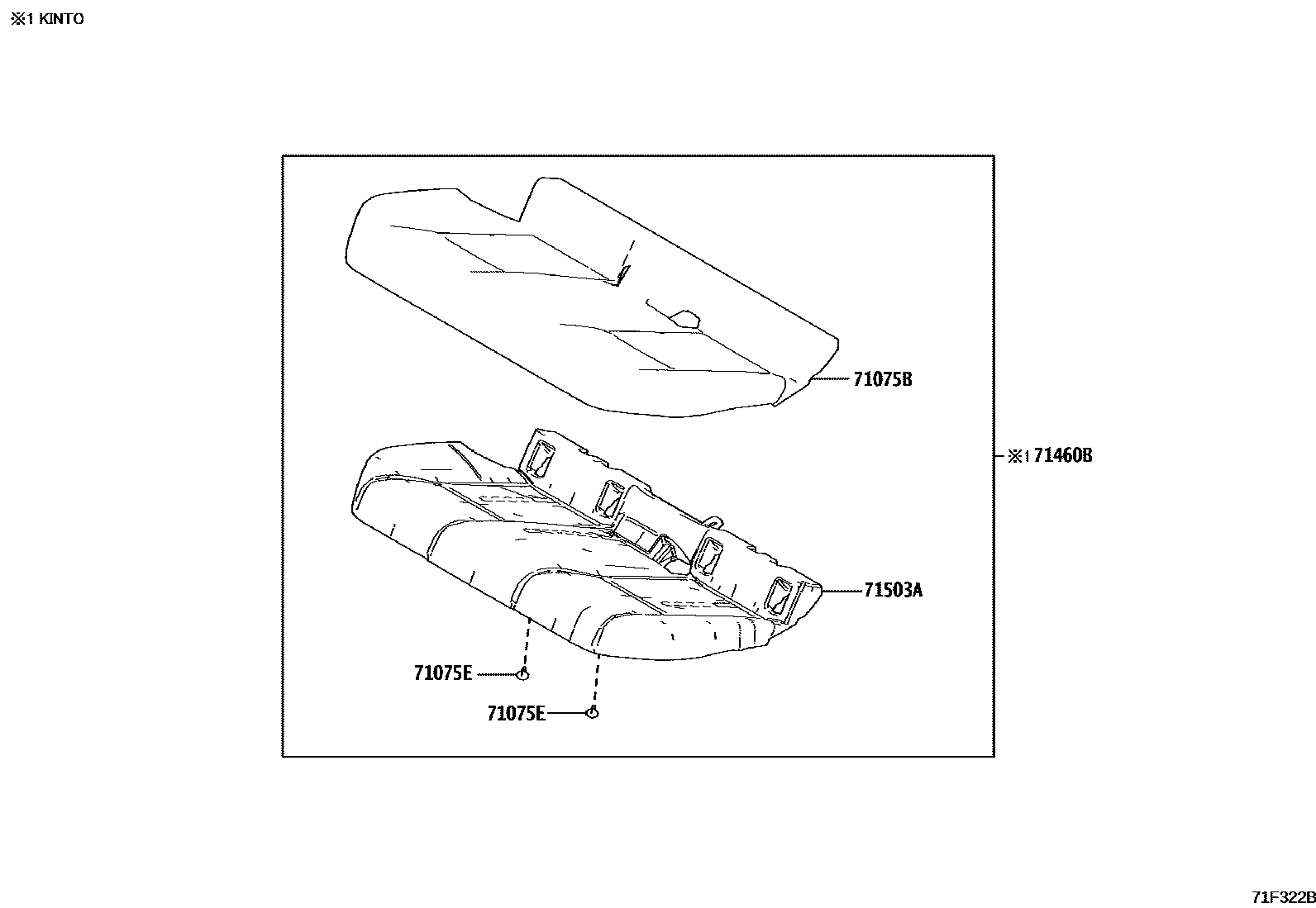

REAR SEAT & SEAT TRACK

0001 1SEAT CUSHION 0002 1SEAT BACK 0003 1SEAT FITTING PARTS 0004 1SEAT FITTING PARTS

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-47A60-C4iMXWH60,65,ZVW6#..U,X202212

BLACK,TRIM2#

main71075-47B00-C6iMXWH60,65..G202212-202507

BLACK/RED,TRIM21

main71075-47B00-C6iMXWH60,65..G202212

main71075-47B00-C7iZVW6#..U202212

BLACK/LT.GRAY,TRIM20,24

main71075-47B00-C7iZVW6#..U202212

main71075-47B00-C7iZVW6#..U202212

main71075-47B00-C7iZVW6#..U202212

main71075-47B00-C7iMXWH60,65..Z202212-202507

BLACK/LT.GRAY,TRIM20

main71075-47B60-C4iMXWH61..X202303

BLACK,TRIM2#

main71075-47B80-C6iMXWH61..G202303-202507

BLACK/RED,TRIM22

main71075-47B80-C7iMXWH61..Z202303-202507

BLACK/LT.GRAY,TRIM20

main71075-47B80-C7iMXWH61..G202303

BLACK/LT.GRAY,TRIM20,24

71075ECLIP(FOR REAR SEAT)

main90467-07049-23iMXWH6#,ZVW6#202212

BLACK

sub90467-07049

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

71503APAD SUB-ASSY, REAR SEAT CUSHION

main71503-47280iMXWH60,65,ZVW6#202212

main71503-47320iMXWH61202303

4 parts on this diagram · 4 diagrams in section
