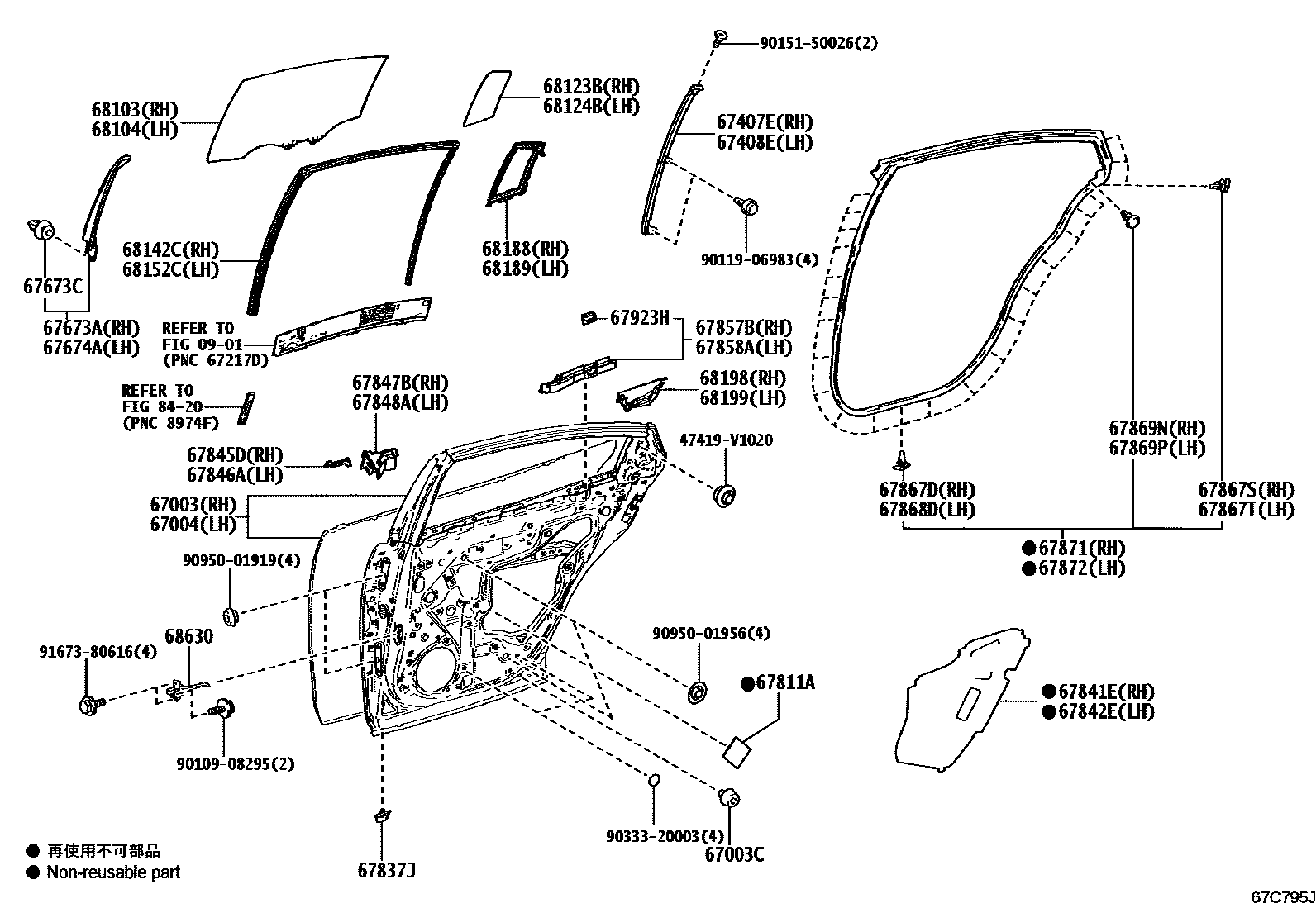

REAR DOOR PANEL & GLASS
0901
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67673AGARNISH, REAR DOOR FRAME, RH
67673CCLIP(FOR REAR DOOR FRAME GARNISH)
67674AGARNISH, REAR DOOR FRAME, LH
67811APAD, REAR DOOR SILENCER
67837JSEAL, DOOR DUST PROOF
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67857BPROTECTOR, REAR DOOR PANEL, RH
67858APROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67867SRETAINER, REAR DOOR WEATHERSTRIP, NO.2, RH
67867TRETAINER, REAR DOOR WEATHERSTRIP, NO.2, LH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869NCLIP, REAR DOOR WEATHERSTRIP, RH
67869PCLIP, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67923HRETAINER, DOOR CORNER SEAL
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68198SEAL, REAR DOOR BELT, REAR RH
68199SEAL, REAR DOOR BELT, REAR LH
68630CHECK ASSY, REAR DOOR
8420
47419V1020PLUG, HOLE(FOR FRONT BRAKE)
main47419-V1020
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9033320003
main90333-20003
9095001919
main90950-01919
9095001956
main90950-01956
9167380616
main91673-80616
48 parts on this diagram · 2 diagrams in section
