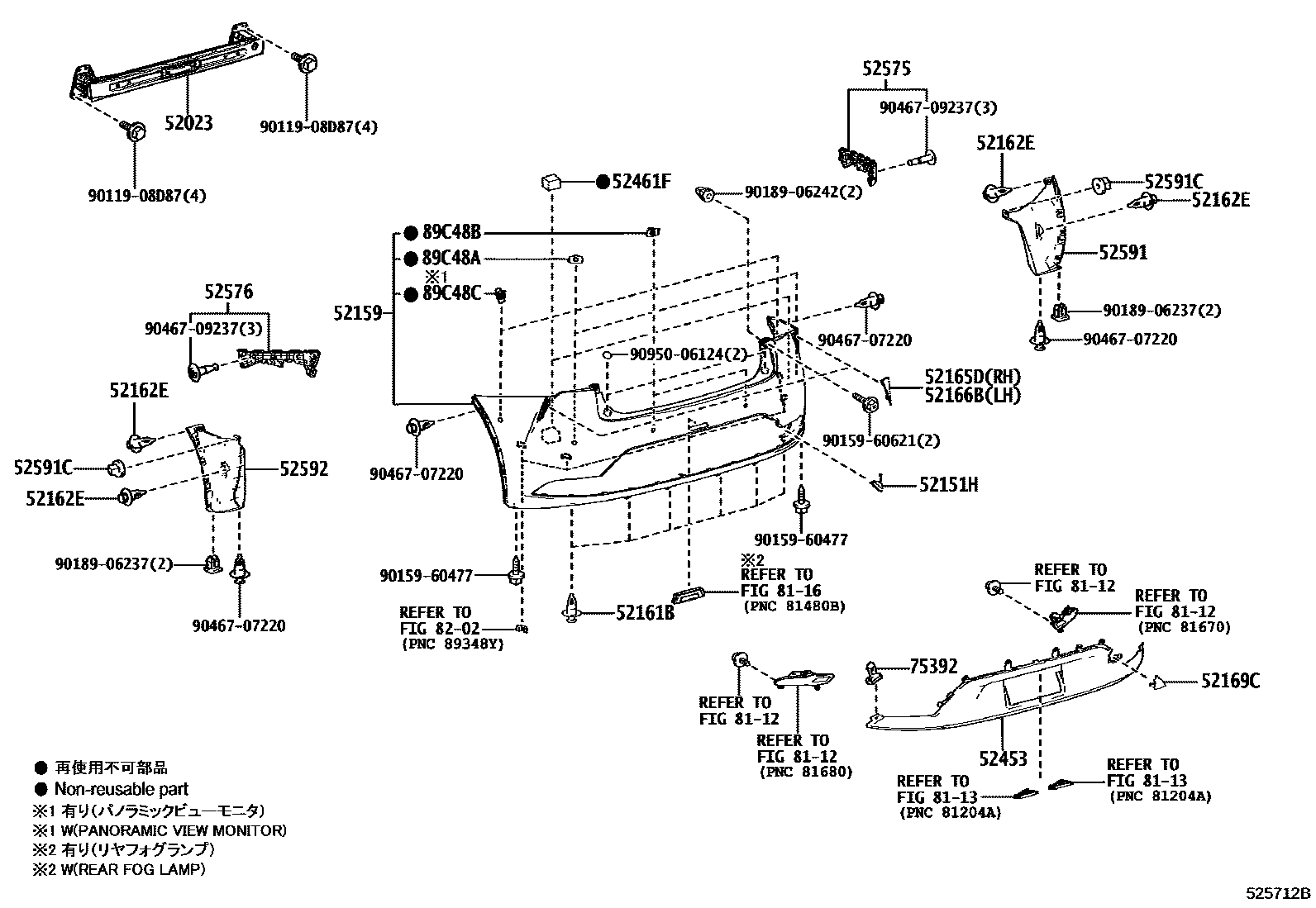

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-47100iMXWH6#,ZVW6#202212

52151HCOVER, REAR BUMPER

main52169-47040-A0iMXWH6#..Z202212

PLATINUM WHITE PEARL MC.,089 ,8Q4

main52169-47040-A1iMXWH60,65,ZVW6#..X202212

SUPER WHITE 2,040

main52169-47040-B0iMXWH6#,ZVW6#..G,U,X202212

SILVER ME.,1L0

main52169-47040-B1iMXWH61;MXWH60,65..X202212

ASH,1M2 ,2XU

main52169-47040-C0iMXWH6#,ZVW6#202212

ATTITUDE BLACK MC.,218

main52169-47040-D0iMXWH61;MXWH60,65..X202212

EMOTIONAL RED 2,3U5

main52169-47040-F0iZVW6#;MXWH60,65..G,Z202212

MUSTARD,5C5

main52169-47040-J0iMXWH6#,ZVW6#202212

DK.BLUE,8Q4

52159COVER, REAR BUMPER

main52159-47953-A0iZVW65..X;MXWH6#,ZVW60..G,U,X202212

PLATINUM WHITE PEARL MC.,089

main52159-47953-B1iZVW60;ZVW65..X;MXWH60,65..G202212

ASH,1M2 ,2XU

main52159-47953-C0iZVW65..X;MXWH6#,ZVW60..G,U,X202212

ATTITUDE BLACK MC.,218

main52159-47953-D0iZVW60;ZVW65..X;MXWH60,65..G202212

EMOTIONAL RED 2,3U5

main52159-47953-F0iZVW60;ZVW65..X;MXWH60,65..G202212

MUSTARD,5C5

main52159-47953-J0iZVW65..X;MXWH6#,ZVW60..G,U,X202212

DK.BLUE,8Q4

main52159-47955-B0supersedes 52159-47953-B0iZVW65..X;MXWH6#,ZVW60..G,U,X202212-202507

main52159-47954-A0iZVW60..U202212

main52159-47954-B1iMXWH61..Z202303-202507

main52159-47954-C0iZVW60..U202212

main52159-47954-D0iZVW60..U202212

main52159-47954-F0iZVW60..U202212

main52159-47954-J0supersedes 52159-47953-J0iMXWH6#..Z202212-202507

main52159-47955-A1supersedes 52159-47953-A1iMXWH60,65,ZVW6#..X202212-202507

main52159-47956-A0supersedes 52159-47953-A0iMXWH6#..Z202212-202507

main52159-47956-B1supersedes 52159-47955-B1iZVW60..U202212-202507

main52159-47956-C0supersedes 52159-47953-C0iMXWH6#..Z202212-202507

main52159-47956-D0supersedes 52159-47955-D0iMXWH60,65..Z202212-202507

main52159-47956-F0supersedes 52159-47955-F0iZVW65..U202212-202507

main52159-47956-J0supersedes 52159-47955-J0iMXWH6#..G202212-202507

52161BPIECE, REAR BUMPER

main52161-16010×6iMXWH6#,ZVW6#202212

52162EPIECE, REAR BUMPER

main52161-16010×4iMXWH6#,ZVW6#202212

52165DEXTENSION, REAR BUMPER CORNER, RH

main52165-47010iMXWH6#,ZVW6#202212

52166BEXTENSION, REAR BUMPER CORNER, LH

main52166-47010iMXWH6#,ZVW6#202212

52169CCOVER, REAR BUMPER, LOWER

main52169-47080iMXWH6#,ZVW6#..G,U,X202212

main52169-47100iMXWH6#..Z202212-202303

main52169-47100-C0iMXWH6#..Z202303

52453GUARD, REAR BUMPER, CENTER

main52453-47080iMXWH6#,ZVW6#..G,U,X202212

main52453-47120iMXWH6#..Z202212-202303

main52453-47120-C0iMXWH6#..Z202303

PRECIOUS BLACK

52461FPAD, REAR BUMPER

main52461-11040×2iMXWH6#,ZVW6#202212

52575RETAINER, REAR BUMPER SIDE, RH

main52575-47070iMXWH6#,ZVW6#202212

52576RETAINER, REAR BUMPER SIDE, LH

main52576-47070iMXWH6#,ZVW6#202212

52591SEAL, REAR BUMPER SIDE, RH

main52591-47100iMXWH6#,ZVW6#202212

52591CCLIP, REAR BUMPER SIDE SEAL

main90467-06206-C0×2iMXWH6#,ZVW6#202212

BLACK

52592SEAL, REAR BUMPER SIDE, LH

main52592-47100iMXWH6#,ZVW6#202212

75392RETAINER, OUTSIDE MOULDING

main75392-35220×4iMXWH6#,ZVW6#202212

8112

8113

8116

8202

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-47280×2iMXWH6#,ZVW6#202212-202408

main89348-47350×2iMXWH6#,ZVW6#202409

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-47340×2iMXWH6#,ZVW6#202409

main89348-50201×2iMXWH6#,ZVW6#202212-202408

89C48CRETAINER, ULTRASONIC SENSOR, REAR SIDE

main89348-47360-A0iMXWH6#..Z202409-202507

main89348-47360-B1iZVW60..U202409-202507

main89348-47360-C0iMXWH6#..Z202409-202507

main89348-47360-D0iZVW60..U202409-202507

main89348-47360-F0iZVW60..U202409-202507

main89348-47360-J0iMXWH6#..Z202409-202507

main89348-47370-A0iMXWH60,65..G202409-202507

main89348-47370-B1iZVW60..U202409-202507

main89348-47370-C0iMXWH6#..Z202409-202507

main89348-47370-D0iZVW60..U202409-202507

main89348-47370-F0iZVW60..U202409-202507

main89348-47370-J0iMXWH6#..Z202409-202507

main89348-50180-A2iZVW6#..U202212-202408

main89348-50180-B5iZVW6#..U202212-202408

main89348-50180-C2iZVW6#..U202212-202408

main89348-50180-D2iZVW6#..U202212-202408

main89348-50180-F0iZVW6#..U202212-202408

main89348-50180-J2iZVW6#..U202212-202408

main89348-50190-A2iZVW6#..U202212-202408

main89348-50190-B5iZVW6#..U202212-202408

main89348-50190-C2iZVW6#..U202212-202408

main89348-50190-D2iZVW6#..U202212-202408

main89348-50190-F0iZVW6#..U202212-202408

main89348-50190-J2iZVW6#..U202212-202408

9011908D87

main90119-08D87

9015960477

main90159-60477

9015960621

main90159-60621

9018906237

main90189-06237

9018906242

main90189-06242

9046707220

main90467-07220

9046709237

main90467-09237

9095006124

main90950-06124

31 parts on this diagram · 1 diagram in section
