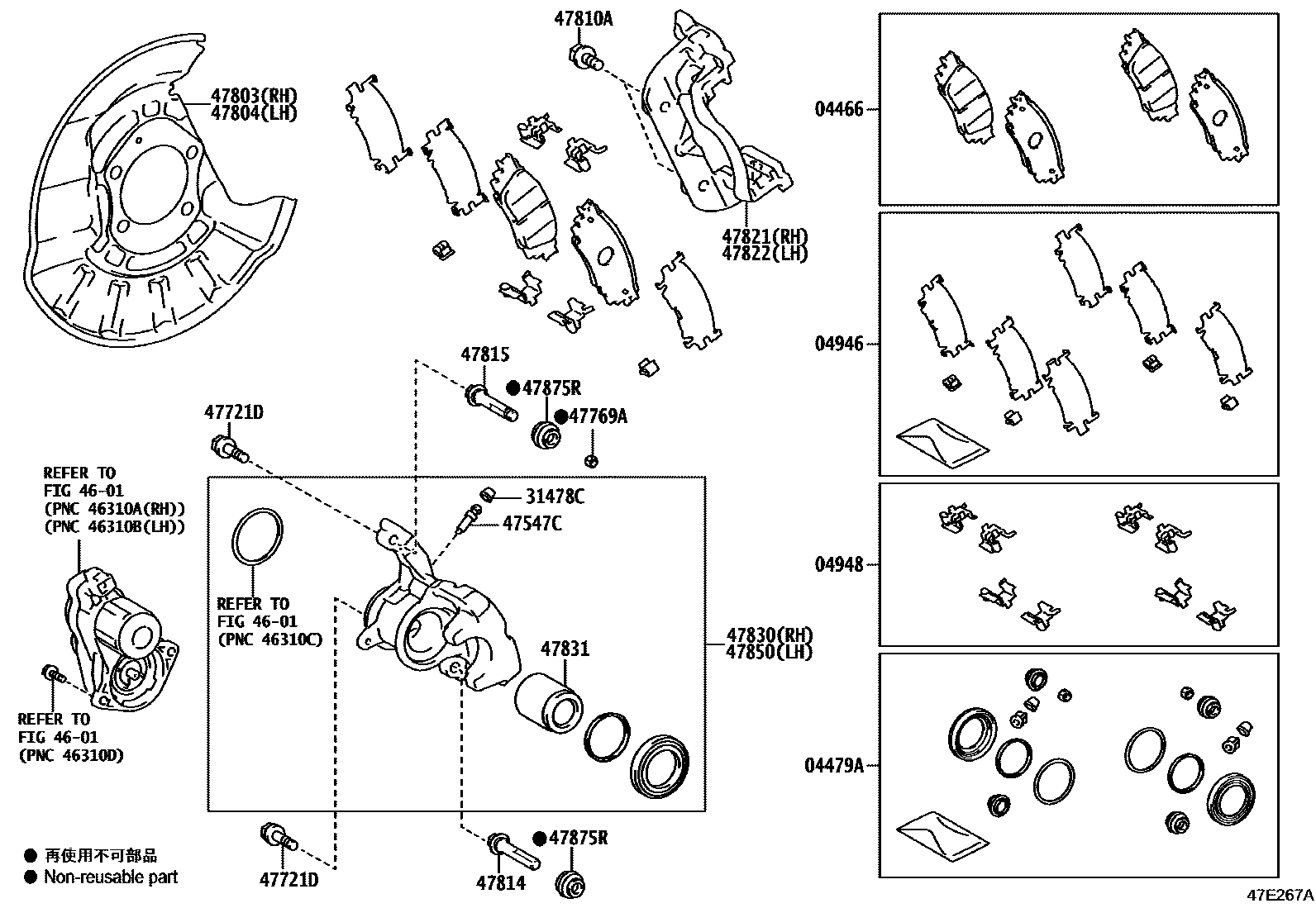

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-42080iMXWH6#,ZVW6#202212

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-42100iMXWH6#,ZVW6#202212

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33090iMXWH6#,ZVW6#202212

04948FITTING KIT, DISC BRAKE, REAR

main04948-12071iMXWH6#,ZVW6#202212

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iMXWH6#,ZVW6#202212-202306

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iMXWH6#,ZVW6#202212-202306

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603×4iMXWH6#,ZVW6#202212-202306

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010×2iMXWH6#,ZVW6#202212-202306

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-33010iMXWH6#,ZVW6#202212

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-33010iMXWH6#,ZVW6#202212

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iMXWH6#,ZVW6#202212

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010×2iMXWH6#,ZVW6#202212-202306

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010×2iMXWH6#,ZVW6#202212

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iMXWH6#,ZVW6#202212-202306

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iMXWH6#,ZVW6#202212-202306

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-42090iMXWH6#,ZVW6#202212-202309

47831PISTON, REAR DISC BRAKE

main47831-48130×2iMXWH6#,ZVW6#202212-202306

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-42080iMXWH6#,ZVW6#202212-202309

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270×4iMXWH6#,ZVW6#202212-202306

20 parts on this diagram · 1 diagram in section
