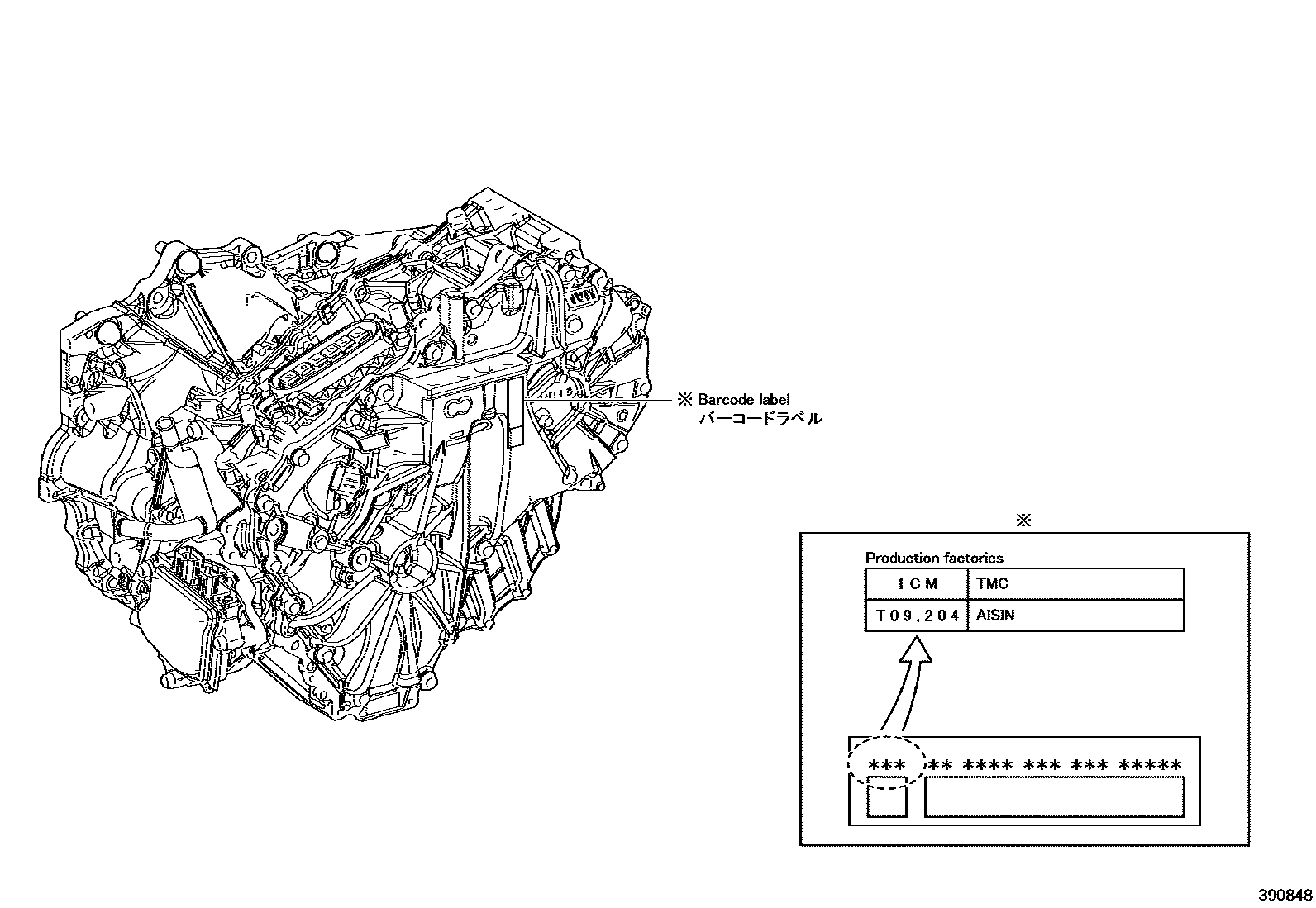

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30600TO RING, TRANSAXLE CASE, NO.1
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
30900TPLUG, BREATHER(FOR REAR TRACTION MOTOR)
35541BRACKET, SHIFT CONTROL ACTUATOR
35563SEAL, SHIFT CONTROL ACTUATOR
35580ACTUATOR ASSY, SHIFT CONTROL
41196BDAMPER, DIFFERENTIAL DYNAMIC
41198CDAMPER, DIFFERENTIAL MASS
41309ESEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
41309KSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41309LSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41309NSEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT LH)
41336MDUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, LH
41651GCUSHION, DIFFERENTIAL MOUNT
41653DSTOPPER, DIFFERENTIAL MOUNT,UPPER
41654BSTOPPER, DIFFERENTIAL MOUNT,LOWER
4302
52380FSUPPORT ASSY, DIFFERENTIAL, FRONT
8202
82821TCOVER, CONNECTOR
82823MCAP, TERMINAL
8431
8432
89435BBRACKET, CONNECTOR COVER
G1050MOTOR ASSY, RR TRACTION W/TRANSAXLE
G1050BPLUG, DRAIN(FOR REAR TRACTION MOTOR)
G1050CPLUG, FILLER(FOR REAR TRACTION MOTOR)
G1050DGASKET, DRAIN PLUG(FOR REAR TRACTION MOTOR)
G1050EGASKET, FILLER PLUG(FOR REAR TRACTION MOTOR)
G1143BRACKET, MOTOR CABLE
G1143FBRACKET, MOTOR CABLE, NO.2
G1143GBRACKET, MOTOR CABLE, NO.3
G1143MBRACKET, MOTOR CABLE, NO.4
G1143NBRACKET, MOTOR CABLE, NO.5
G1148CABLE, MOTOR
G1149CABLE(FOR REAR TRACTION MOTOR)
G114CPROTECTOR, MOTOR CABLE
G114DCAP, MOTOR CABLE TERMINAL
9010510591
main90105-10591
9011908D34
main90119-08D34
9011912455
main90119-12455
9011914109
main90119-14109
9030106196
main90301-06196
9030110189
main90301-10189
9030115004
main90301-15004
9034108001
main90341-08001
9034113004
main90341-13004
9034118020
main90341-18020
9034118092
main90341-18092
9043018008
main90430-18008
9052019018
main90520-19018
9155100835
main91551-00835
9155110818
main91551-10818
91551G0820
main91551-G0820
9155281250
main91552-81250
91552E1255
main91552-E1255
9155380830
main91553-80830
91641H0820
main91641-H0820
9167180612
main91671-80612
9167180620
main91671-80620
9167380616
main91673-80616
9167380620
main91673-80620
9167480616
main91674-80616
9167480620
main91674-80620
75 parts on this diagram · 4 diagrams in section
