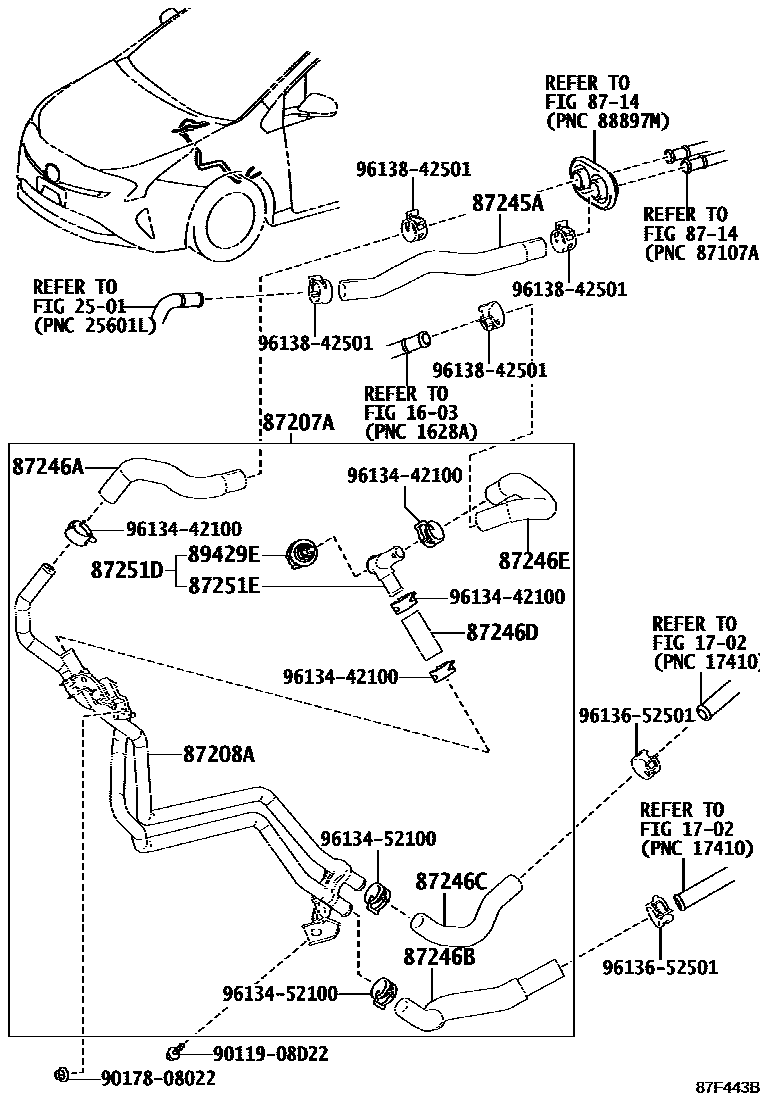

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

1702

2501

8714

87207APIPE & HOSE SUB-ASSY, WATER A

main87207-47080iZVW5#..CBU¥16,600201511-202002

main87207-47100iZVW5#..CBU¥14,400202002-202106

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-47030iZVW5#..CBU¥0201511-202002

main87208-47070iZVW5#..CBU202002-202106

87245AHOSE, HEATER WATER, INLET A

main87245-47330iZVW5#..CBU¥1,340201511-202106

main87245-47370iZVW5#..CBU¥1,690202106

87246AHOSE, HEATER WATER, OUTLET A

main87245-47340iZVW5#..CBU¥1,150202106

main87245-47430iZVW5#..CBU¥990201511-202106

87246BHOSE, HEATER WATER, OUTLET B

main87245-47420iZVW5#..CBU¥1,260201511-202002

main87245-47450iZVW5#..CBU¥1,130202002-202106

87246CHOSE, HEATER WATER, OUTLET C

main87245-47410iZVW5#..CBU¥750201511-202002

main87245-47440iZVW5#..CBU¥1,350202002-202106

87246DHOSE, HEATER WATER, OUTLET D

main87245-47400iZVW5#..CBU¥110201511-202106

87246EHOSE, HEATER WATER, OUTLET E

main87245-47390iZVW5#..CBU¥1,040201511-202106

87251DJOINT, WATER, NO.1

main87252-47030iZVW5#..CBU¥0201511-202106

87251EJOINT, WATER, NO.2

main87251-47030iZVW5#..CBU201511-202106

89429ESENSOR, WATER TEMPERATURE

main89429-47010iZVW5#..CBU¥2,410201511-202106

9011908D22

main90119-08D22¥80

9017808022

main90178-08022¥100

9613442100

main96134-42100¥90

9613452100

main96134-52100¥220

9613652501

main96136-52501¥200

9613842501

main96138-42501¥180

21 parts on this diagram · 2 diagrams in section
