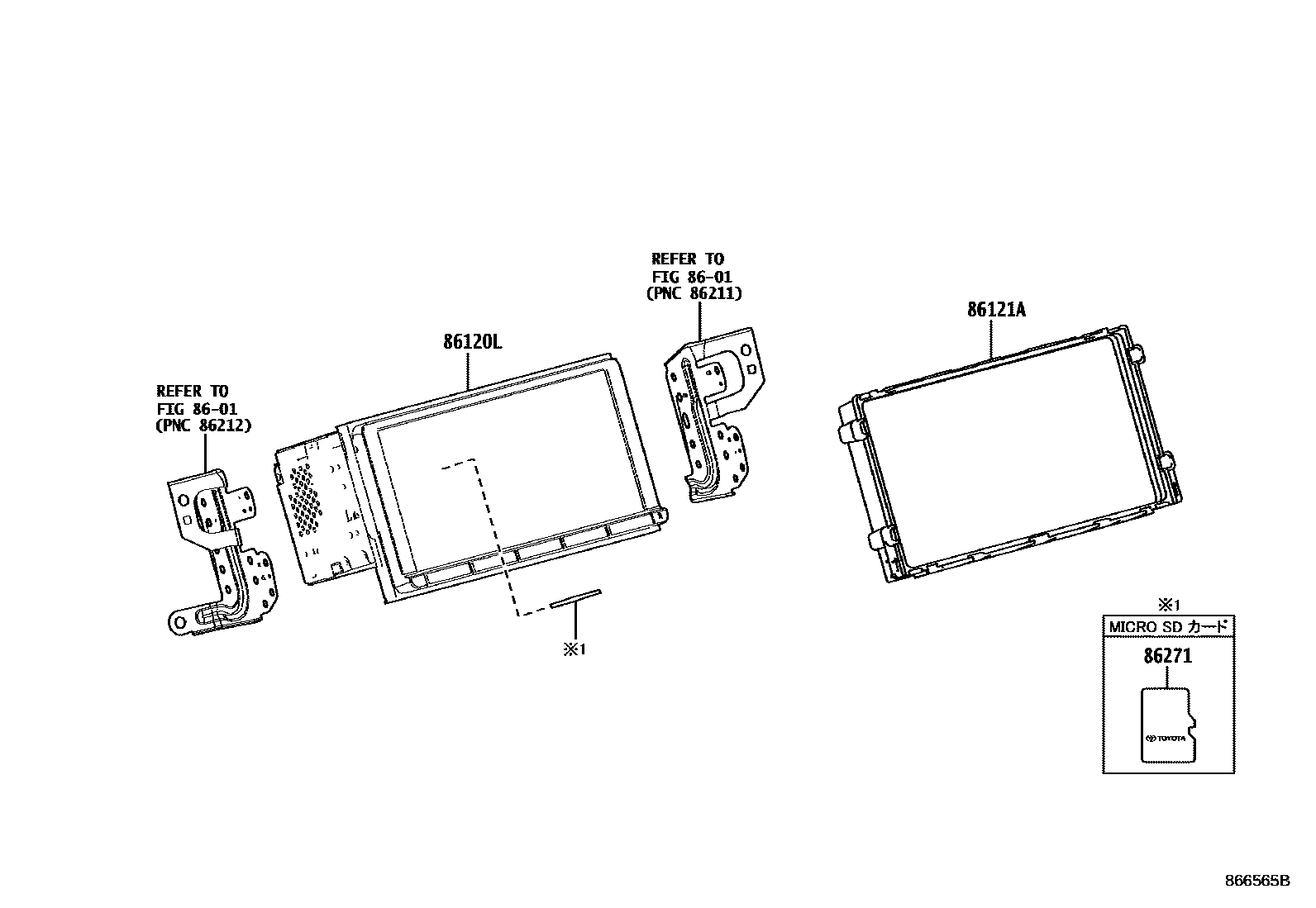

NAVIGATION & FRONT MONITOR DISPLAY

0001 1��(DOP���������(9���)) 0002 1����� 0003 1������������� & �������

8601

86120LRECEIVER ASSY, NAVIGATION

main86100-47550iZVW51..E201511-201711

main86804-47270iZVW51,55..(A,PREM)..CBU201711-201812

main86804-47440iZVW51,55..(A,PREM)..CBU201711-201812

main86804-47510iZVW5#..A..CBU201812-201908

main86804-47520iZVW5#..PREM201812-201908

main86804-47550iZVW5#..A..CBU201908-202106

main86804-47560iZVW5#..PREM201908-202106

86121APANEL, RADIO RECEIVER, NO.1

main86121-47A90iZVW51..E201511-201711

86271DISC, DISC PLAYER

main86271-47170iZVW5#..A,PREM,S201511-201603

main86271-47171iZVW51..E201604-201608

main86271-47172iZVW51..E201609-201705

main86271-47173iZVW51..E201705-201711

sub86271-47174

main86271-47192iZVW51,55..(A,PREM)..CBU201711-201803

main86271-47193iZVW51,55..(A,PREM)..CBU201804-201809

main86271-47194iZVW51,55..(A,PREM)..CBU201809-201812

main86271-47195iZVW5#..PREM201905-201909

main86271-47196iZVW5#..PREM201909-202004

main86271-47197iZVW5#..PREM202004-202008

main86271-47198iZVW5#..PREM202009-202103

main86271-47199iZVW5#..PREM202104-202106

4 parts on this diagram · 3 diagrams in section
