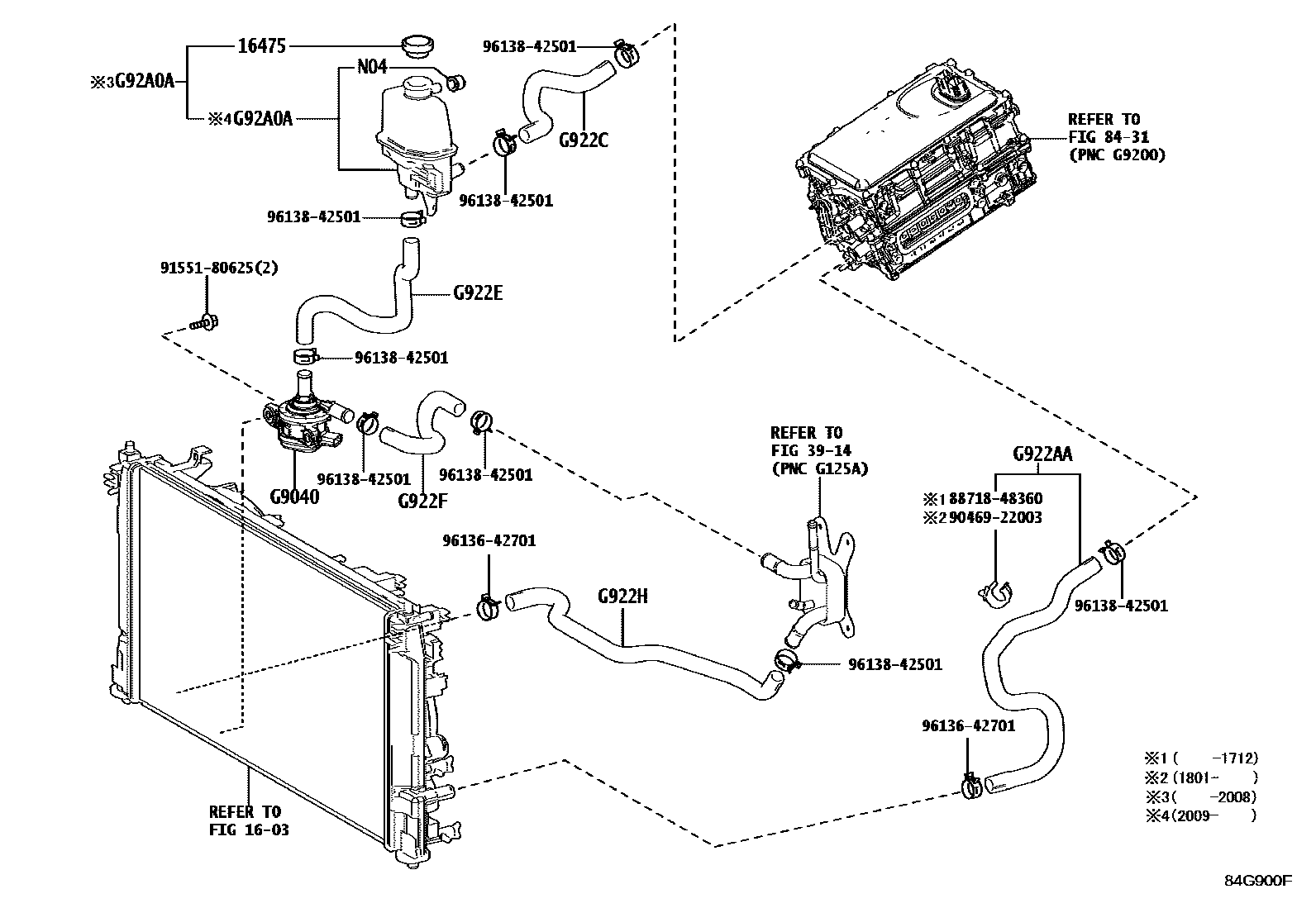

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZVW5#..CBU201605-201812

main16475-37011i2ZRFXE..ZVW5#..CBU201511-201604

sub16475-28140

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047040iZVW5#..CBU201511-201812

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A47010iZVW5#..CBU201511-201812

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922C47010iZVW5#..CBU201511-201812

G922EHOSE, HYBRID WATER PUMP INLET

mainG922E47010iZVW5#..CBU201511-201812

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922F47010iZVW5#..CBU201511-201812

G922HHOSE, HYBRID RADIATOR INLET

mainG922H47010iZVW5#..CBU201511-201812

G92A0ATANK ASSY, INVERTER RESERVE

mainG910G12010iZVW5#..CBU202009

mainG91H047010iZVW5#..CBU201511-201604

subG91H0-47011

mainG91H047011iZVW5#..CBU201605-202008

8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48360

9046922003

main90469-22003

9155180625

main91551-80625

9613642701

main96136-42701

9613842501

main96138-42501

16 parts on this diagram · 1 diagram in section
